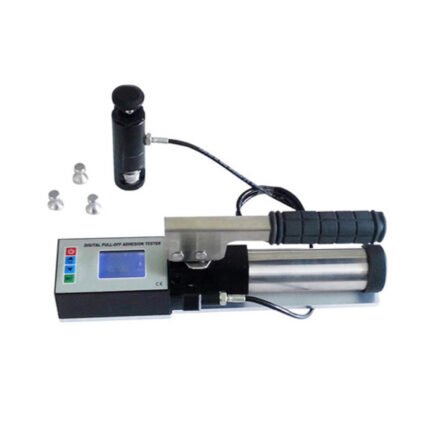

AZA 1152 DIGITAL PULL-OFF ADHESION TESTER
- AZA 1152: High-precision digital pull-off adhesion tester
- Accurate Results: Measures coating bond strength on various surfaces
- Digital Display: Real-time force reading with peak hold
- Portable Design: Lightweight, suitable for field and lab use
- IS-Compliant: Conforms to international testing standards

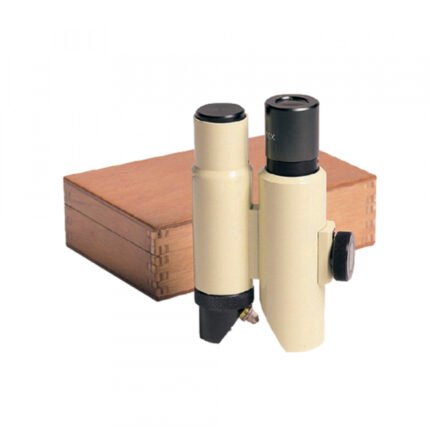

AZA 1153 CRACK MICROSCOPE
Crack microscope is a high definition device which is used for measuring crack widths both in concrete and other structures like masonry walls. Consists of an adjustable lamp unit and a knob for focusing the image. The 360° turning ability of the eyepiece enables the alignment with the direction of the crack or pitch subject to examination. The battery operated microscope has 40x magnification and 4 mm measuring range with 0.02 mm subdivisions.
Magnification 40X
Measuring Range 4mm
Subdivision 0.02mm
Dimensions 150 x 80 x 45 mm (packed)
Weight (approx.) 550gm
AZA 1154 FILLING HOPPER FOR MOULD
AZA 1155 CUBE MOULD, PLASTIC
AZA 1156 PLASTIC CUBE MOULD (THREE GANG)
AZA 1157 CONCRETE CURING RACKS
These durable racks are manufactured from plastic compounds and recycled materials to resist moisture, abrasion, chemical and temperature variations. Each rack has built-in handles, making them easy to carry and safely stacked 12 tiers (58") high. The racks unique open frame design allows water vapor to flow through and saturate the surface of each individual cylinder, and also separates and prevents cylinder surfaces from touching each other for improved temperature control.
Each rack holds 4 pieces 100 x 200 mm cylinders and is 17-5/8" wide x 6- 3/8" deep. The weight of one rack with 4 cylinders is approximately 17 KG. One base rack is required for each stack
AZA 1158 CUBE AND CYLINDER LIFTING HANDLE
AZA 1159 TEST CYLINDER CARRYING CASE
AZA 1160 CYLINDER CARRIER
AZA 1161 GROUT SAMPLE BOX
This grout sample box is an alternative method that follows the guidelines to ASTM C-1019 / UBC 21-18 and will save you money, time, labor, and space. Engineered-slotted corrugation retains moisture while simulating cmu absorption rate. Each box produces 4 specimens, 3 6.25 mm x 81.5 mm x 162.5 mm. Shipped 25 boxes per carton.
AZA 1162 CONCRETE: PAD CAPS AND RETAINER RINGS
Pad-cap retainer rings hold neoprene pads that fit onto the ends of concrete test cylinders. Made from plated high-alloy steel to resist rust and deformation fatigue. Bearing surfaces machine-planed to within 0.002". Supplied two per set. Neoprene pad inserts are made from a tough elastomeric material that evens out and fills irregularities in the ends of concrete cylinders to assure even distribution of test loads for consistent results.
AZA 1163 CAPPING SET (HORIZONTAL)
IS: 516 1959, BS 1881-120, ASTM C31, C 617
Specification:
The set comprises of a cylinder capper, a cylinder carrier and a ladle. The cylinder capper consists of a base on which two accurately machined plates are mounted vertically. One plate is firmly fixed and the other one is adjustable horizontally. Two plates are provided with holders for holding the cylinder in position. The holder are split and the bottom half of each holder is fixed firmly and the top half of each is removable and bolted down to the lower half. On the upper parts of the vertical plates 'V' s are provided for pouring the capping compound. Two spacers are also provided. Complete with cylinder carrier and ladle for molten compound.
AZA 1163 A For 150 mm dia. x 300 mm length cylinders
AZA 1163 B For 100 mm dia. x 200 mm length cylinders
