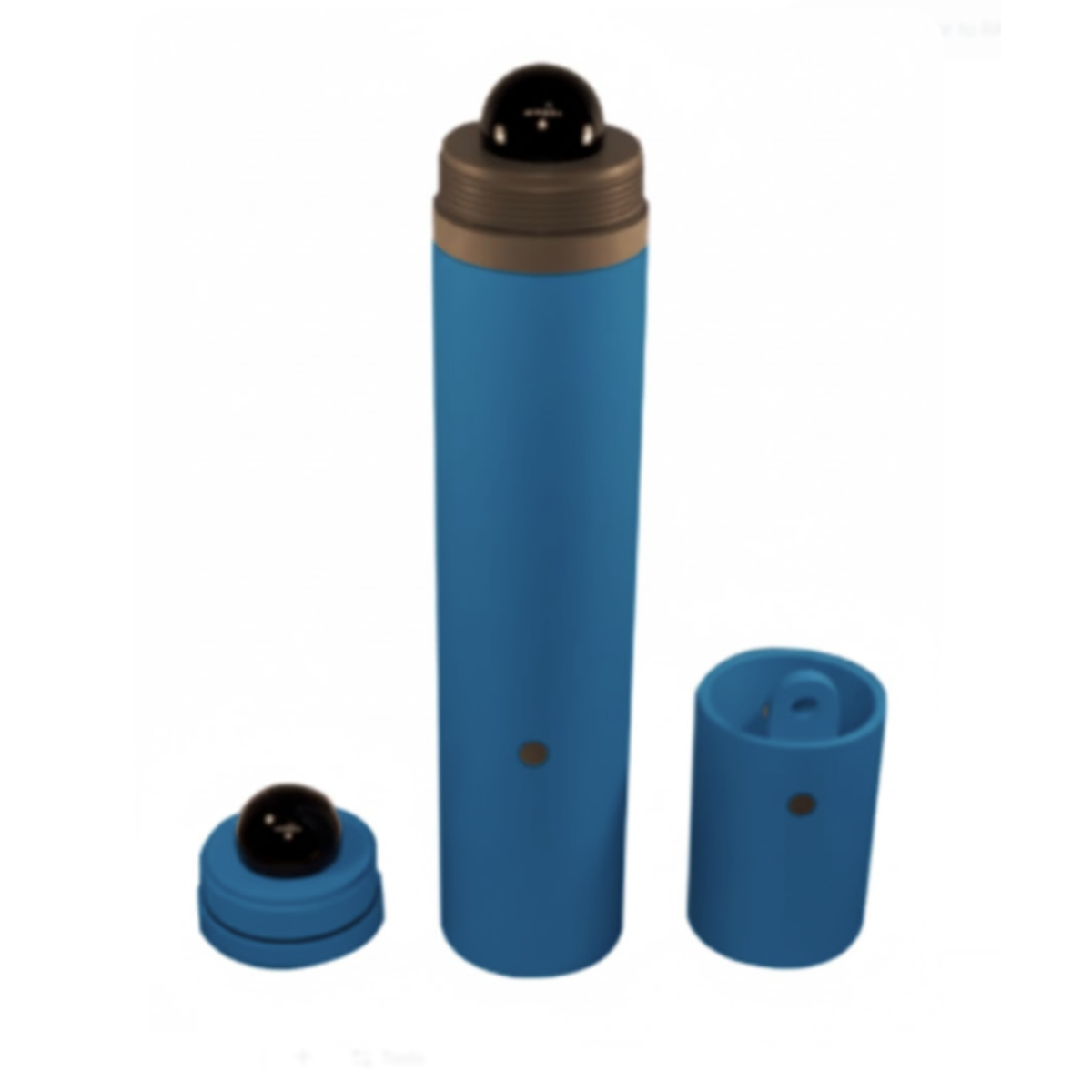

BENTONITE SLURRY SAMPLER 50 METERS AZA0813
The AZA0813 Bentonite Slurry Sampler from azalab is a robust, field-ready sampling device designed to obtain clean, uncontaminated samples of drilling slurry, bentonite mixes, grout, and cement-based slurries. Manufactured from high-quality white PVC, this sampler incorporates a double check-ball system that locks the slurry inside the chamber, preventing dilution or mixing with surrounding layers during retrieval.
With a 12-inch sample chamber and a 20-inch overall body length, the AZA0813 sampler is optimized for high-volume collection and smooth handling on construction, geotechnical, and foundation engineering sites. Its FDOT-approved design ensures compliance for critical QA/QC applications in diaphragm walling, piling, trenching, and drilling operations.aza
Lightweight yet durable, the PVC body resists corrosion, making it ideal for repeated field use and harsh job-site conditions.
- 5″ (88.9 mm) white PVC slurry sampler with double check-ball sealing
- FDOT-approved sampler for drilling fluid and bentonite slurry testing
- 12″ chamber length | 20″ total length for efficient field sampling
- Durable PVC construction with integrated lifting bail
- Suitable for bentonite, grout, drilling mud, and cement slurry collection
- Corrosion-resistant, lightweight, and easy to clean
Description
Applications
-
Sampling bentonite and polymer slurries in trench foundations
-
FDOT-compliant slurry testing for drilling operations
-
QA/QC in diaphragm walls, boreholes, and piling rigs
-
Collection of grout or cement slurry for laboratory analysis
-
Geotechnical field testing and construction monitoring
-
Environmental, groundwater, and site condition evaluation
Specifications
| Feature | Specification |
|---|---|
| Diameter | 3.50 inches (88.9 mm) |
| Overall Length | 20 inches |
| Chamber Length | 12 inches |
| Material | White PVC body with lifting bail |
| Ball Type | Double check-ball sealing system |
| Approval | FDOT approved |
| Usage | Manual – field/site slurry sampling |
| Ideal For | Bentonite, grout, drilling mud, cement slurry |
What’s Included
-
1× PVC Slurry Sampler Bailer (AZA0813)
-
1× Integrated PVC Lifting Bail
-
User instructions (available on request)
FREQUENTLY ASKED QUESTIONS (FAQ)
Q1: What does this sampler collect?
It collects uncontaminated samples of bentonite slurry, cement grout, drilling mud, and other semi-liquid mixtures.
Q2: Is the AZA0813 compliant with FDOT requirements?
Yes, it meets Florida Department of Transportation (FDOT) criteria for slurry sampling and testing.
Q3: How does the double check-ball system work?
One ball seals the bottom on entry, and the second seals the top during retrieval, preventing leakage and contamination.
Q4: Can it be reused?
Yes, the PVC construction is durable and washable, suitable for multi-use field operations.
Q5: How is it deployed?
It can be lowered manually with a rope or reel system depending on site depth and operator preference.
