Flow Cone AZA 0820 – Cement Mortar Flow Testing Tool

FLOW CONE AZA0815

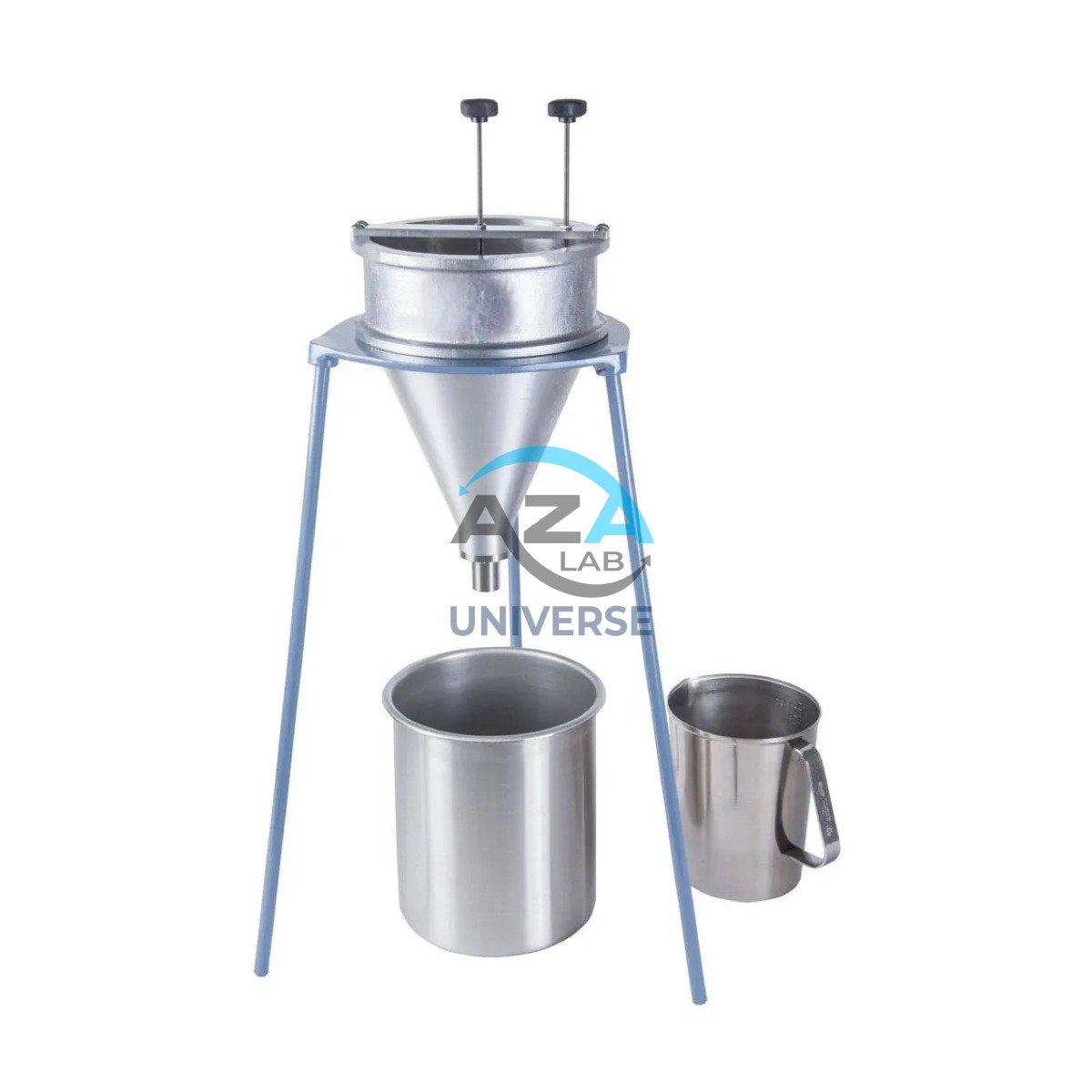

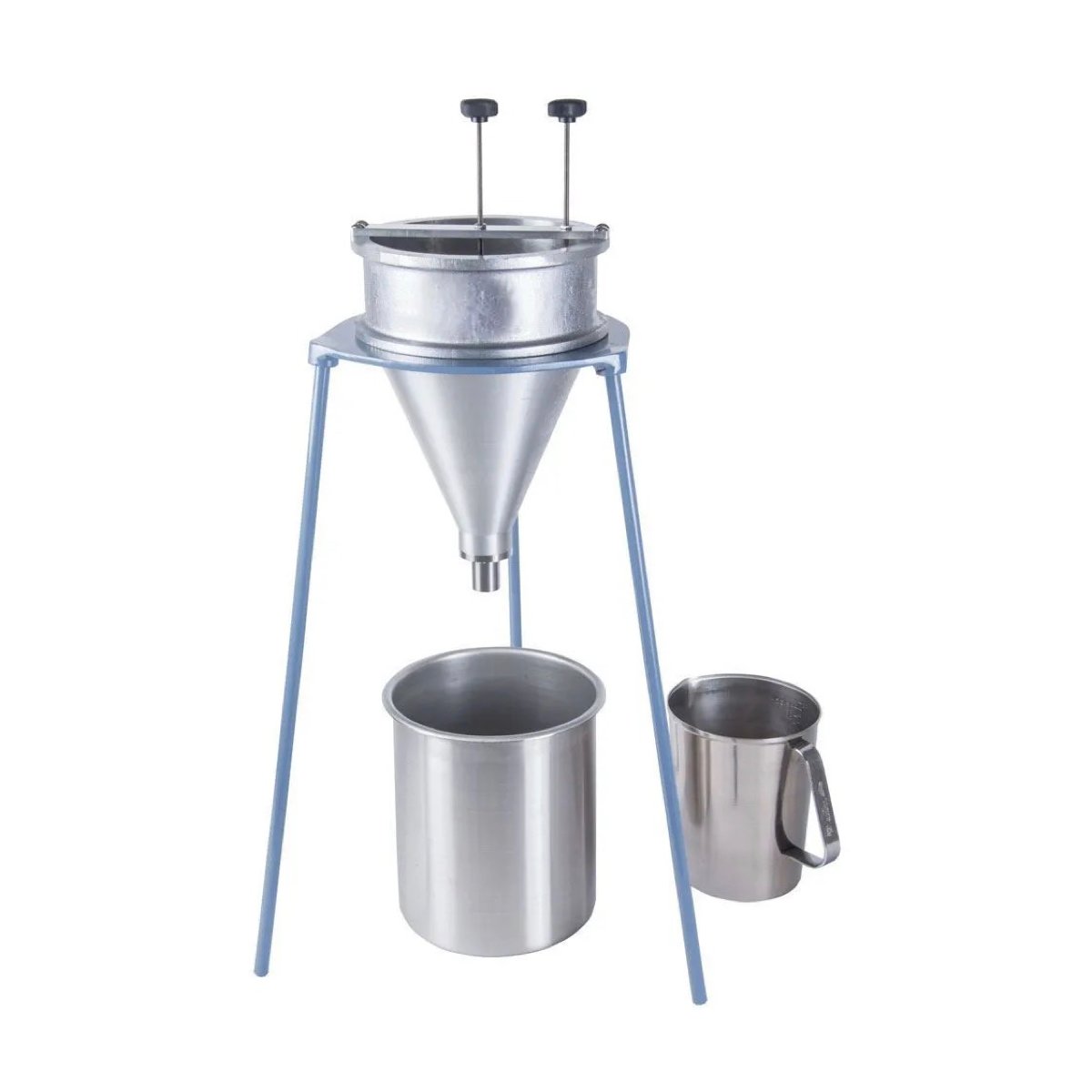

The AZA0815 Flow Cone Apparatus from azalab is a high-accuracy instrument used for determining the flowability, viscosity, and fluid consistency of cement grout, mortar, and fine aggregate mixtures. Designed to meet the requirements of ASTM C939 and IS 9103, it is an essential tool for quality control in civil engineering labs, ready-mix concrete plants, and on-site construction testing.

This apparatus—also referred to as a grout flow cone—helps evaluate the time required for a cementitious or fine aggregate mixture to flow through a calibrated orifice. This flow time directly correlates to the mix’s workability, fineness, fluidity, and performance in applications such as grouting, repair mortars, high-flow cement systems, and self-compacting materials.

Built from rust-resistant stainless steel or anodized aluminum, the AZA0815 Flow Cone provides long-term durability and easy cleaning. It is supplied complete with a funnel, powder-coated stand, and a calibration plate to verify orifice size and measurement accuracy.aza

Its simple design, quick operation, and repeatable results make it ideal for laboratory research, quality control departments, and field engineers dealing with high-flow grouts or fine slurry mixes.

Enquiry on WhatsApp

Category: Cement

Description
Additional information

Description

Applications

Determining flow time of cement grout & fluid mortars
Quality control for preplaced-aggregate grouting systems
Testing self-compacting grout and high-fluidity mortars
Evaluation of bentonite slurry or fine sand suspensions
Research, development, and lab analysis of cementitious materials
On-site grout testing in civil and construction projects

Uses

Measures flow time of cement grout, mortar & fine aggregates
Complies with ASTM C939 & IS 9103 standards
Corrosion-resistant stainless steel or anodized aluminum funnel
Includes precision funnel, rigid stand & calibration plate
Ideal for field and laboratory viscosity testing
Accurate device for determining flowability and fluid consistency

Specifications

Feature	Description
Model	AZA0815
Material	Stainless Steel / Anodized Aluminum
Orifice Diameter	12.7 mm (Standard ASTM C939 size)
Cone Height	230 mm
Flow Cup Capacity	1 Liter
Stand	Powder-coated steel
Standards Met	ASTM C939, IS 9103
Weight	Approx. 7 kg

What’s Included

1× Flow Cone (Stainless steel / anodized aluminum)
1× Powder-coated stand
1× Calibration plate
User guide (on request)

Frequently Asked Questions (FAQ)

Q1: What is the AZA0815 Flow Cone used for?
It measures the flow time of grout, mortar, and fine aggregates to assess viscosity and workability.

Q2: Which standards does it meet?
The apparatus conforms to ASTM C939 and IS 9103.

Q3: What does flow time indicate?
Flow time reflects material viscosity and fluid consistency, influencing ease of placement and performance.

Q4: Is it suitable for site use?
Yes, the unit is durable, portable, and ideal for both field and laboratory environments.

Q5: What materials can be tested with this cone?
Cement grout, slurry, fine sand mixes, repair mortars, self-levelling materials, and high-flow grout systems.

Additional information

Model	AZA 0820
Material	Stainless Steel / Anodized Aluminum
Orifice Diameter	12.7 mm (standard)
Stand	Powder-coated steel stand
Standards	Met ASTM C939, IS 9103
Weight	Approx. 7 kg
