Car Steering Trainer AZA1248

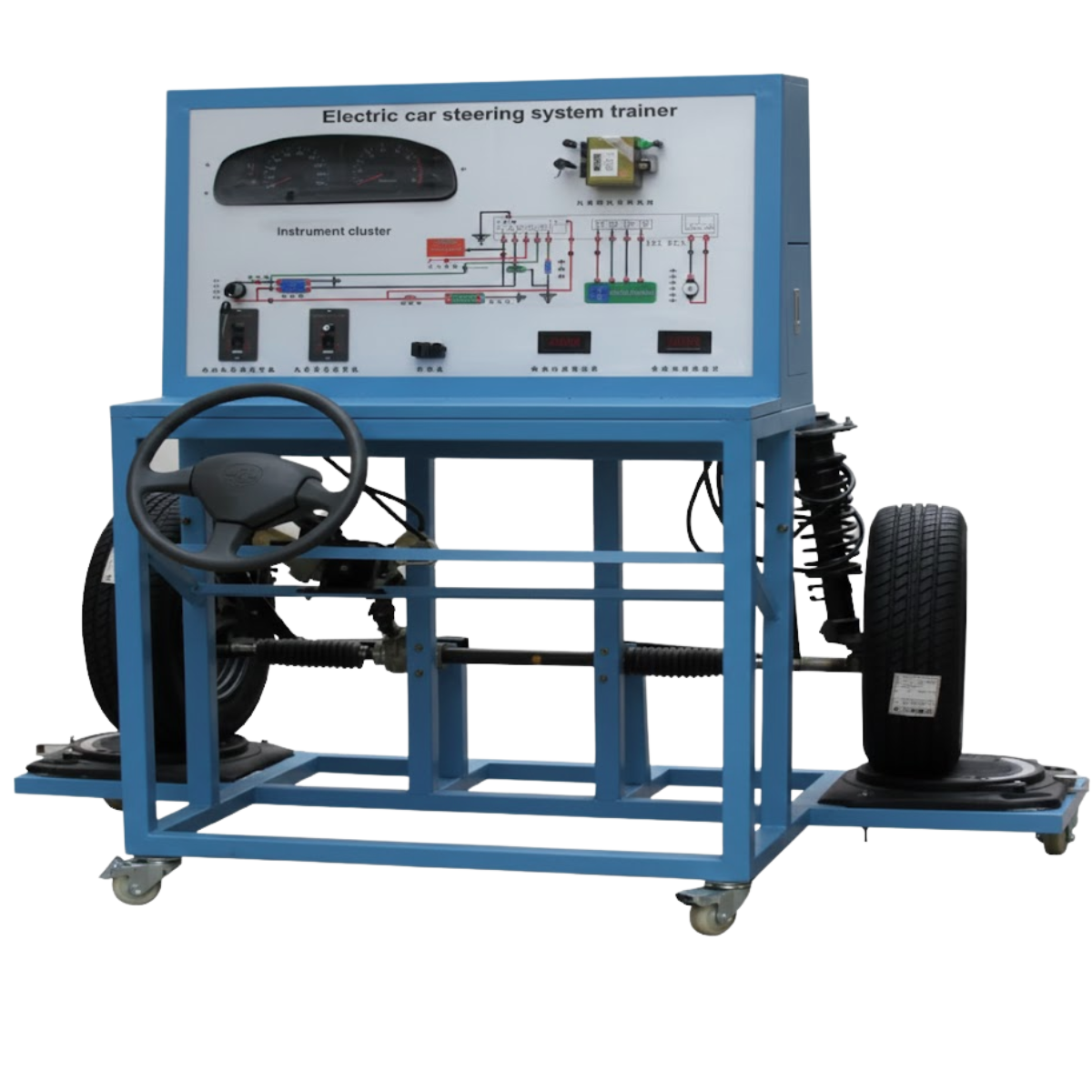

The AZA1248 Car Steering & Suspension System Trainer is an advanced automotive training platform designed to provide complete practical understanding of modern vehicle steering and front suspension systems. Developed using real automotive components and mounted on a robust mobile steel structure, this trainer enables students and technicians to gain hands-on experience in inspection, diagnosis, adjustment, and repair of steering and suspension assemblies commonly used in passenger vehicles.
This training system accurately represents a front-wheel steering and suspension layout, incorporating MacPherson strut suspension, coil spring, road wheels, hub carrier assemblies, and a fully operational power steering system. The open-frame design allows clear visibility of all components, making it ideal for instructor-led demonstrations as well as individual hands-on practice in automotive laboratories and technical institutes.
Description
The AZA1248 is equipped with a power steering rack and pinion mechanism, driven by an integrated 1.5 kW electric steering motor and power steering pump. Pressure gauges are installed within the hydraulic circuit, allowing students to monitor and analyze steering system pressure under different operating conditions. This enables realistic simulation of power steering operation, fault diagnosis, and system performance evaluation.
Students can safely disassemble and reassemble the rack and pinion steering system, inspect internal components, and understand steering geometry and mechanical linkages. The trainer also supports learning activities such as checking and adjusting track rod ends, steering joints, bushings, dampers, wishbones, coil springs, and hub assemblies. These exercises help learners understand common wear points, service procedures, and alignment-related issues encountered in real vehicles.
Designed specifically for automotive education and skills training, the AZA1248 is suitable for diploma programs, ITI training, vocational education, polytechnic colleges, engineering institutes, and in-house workshop training centers. The mobile steel frame allows easy repositioning within classrooms or workshops, making it suitable for both group demonstrations and practical examinations.
The system operates on a safe AC 220V / 50Hz power supply, with electrical components properly mounted and protected for classroom use. Its heavy-duty construction ensures long service life, even under frequent student handling. The trainer bridges the gap between theoretical learning and real-world automotive service practices by offering a realistic, interactive, and safe training environment.
Salient Features
- Complete Car Steering & Suspension Demonstration System
Provides practical understanding of steering and front suspension operation used in modern vehicles.
- MacPherson Strut Suspension Layout
Includes coil spring, damper, wishbone, and hub carrier for realistic suspension training.
- Fully Functional Power Steering System
Power steering rack, pump, motor, and hydraulic circuit with pressure monitoring.
- Hands-on Disassembly & Assembly Training
Allows dismantling and reassembly of rack and pinion steering gear and suspension components.
- Diagnostic & Troubleshooting Capability
Pressure gauges enable steering system pressure analysis and fault identification.
- Real Automotive Components
Built using original vehicle parts for accurate training experience.
- Mobile Heavy-Duty Steel Frame
Easy to move, stable, and suitable for classroom or workshop demonstrations.
- Safe & Educational Design
Engineered for repeated student use with controlled operation and clear visibility.
- Ideal for Group Demonstrations
Open construction ensures all components are clearly visible during instruction.
Applications
- Automotive engineering laboratories
- ITI and vocational training institutes
- Polytechnic and diploma colleges
- Skill development centers
- Automotive service training workshops
- Instructor-led classroom demonstrations
- Practical examination and assessment labs
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AZA1248 |
| Motor Power | 1.5 kW |
| Power Supply | AC 220V / 50Hz |
| Steering System | Power steering rack and pinion |
| Suspension Type | Front MacPherson strut suspension |
| Major Components | Steering motor, power steering pump, front suspension, wheel assemblies, pressure gauges |
| Frame Type | Mobile heavy-duty steel frame |
| Overall Dimensions (L × W × H) | 2000 × 1100 × 1300 mm |
| Net Weight | Approx. 130 kg |
Make: AZALAB
Model: AZA1248
