Cut Model of Agricultural Tractor AZA1254

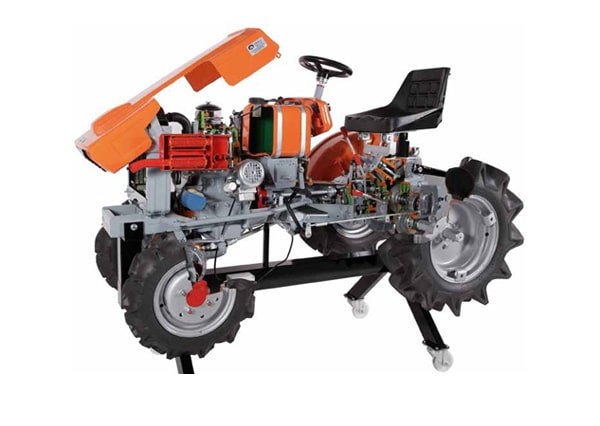

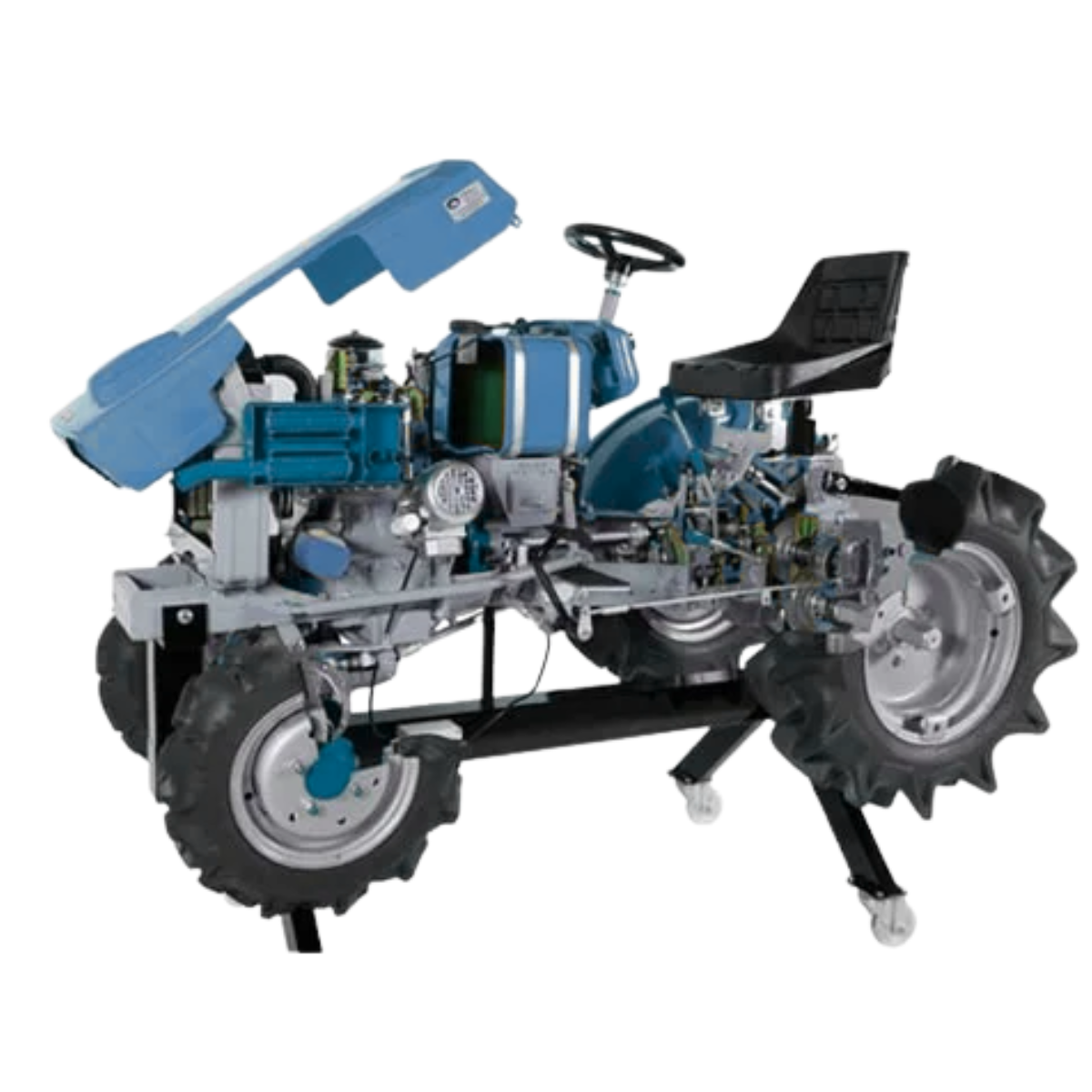

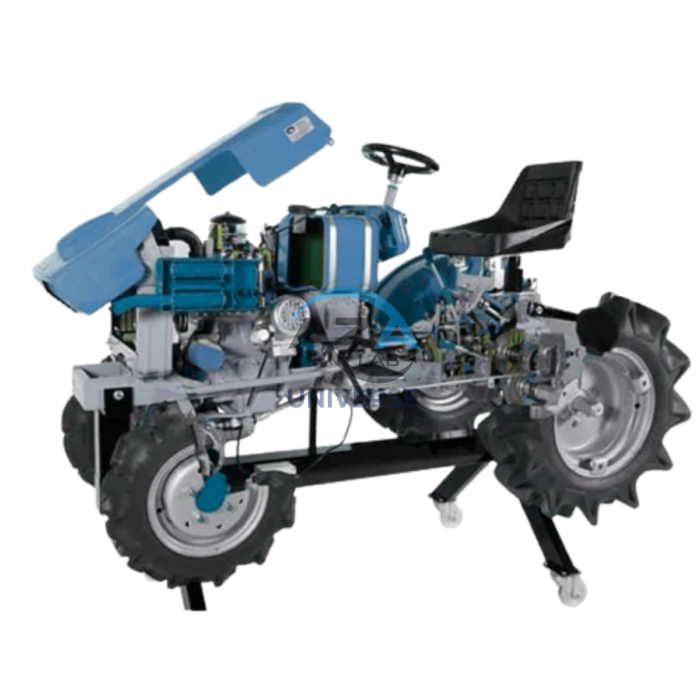

The AZA1254 Cut Model of Agricultural Tractor by AZALAB is a highly detailed and precision-engineered educational training model designed to provide a clear, practical understanding of agricultural tractor construction, internal mechanisms, and working principles. This cutaway model is specifically developed for engineering colleges, ITIs, polytechnic institutes, agricultural universities, and vocational training centers.
Manufactured using an actual agricultural tractor assembly, the AZA1254 is carefully sectioned to expose all major mechanical and functional systems. Each component is accurately cut, polished, and color-coded, enabling learners to visually trace power flow, understand system interconnections, and study component functions in real time. The model offers an authentic representation of tractor operation, making it ideal for classroom demonstrations, lab training, and technical instruction
Description
Construction & Educational Design
The AZA1254 tractor cut model is mounted on a heavy-duty iron frame with a powder-coated finish, ensuring excellent stability, durability, and long service life. All exposed internal parts are chrome-plated and galvanized where required to prevent corrosion and wear, even under frequent handling.
The model is fully dissectible, allowing instructors to demonstrate individual systems separately or as a complete working assembly. It is manually operated through a crank handle, enabling smooth rotation of internal components such as the crankshaft, clutch, gearbox, and transmission for live demonstrations. This manual operation helps students clearly visualize motion, timing, and mechanical coordination between systems.
Exposed Systems & Components
The AZA1254 cut model clearly displays all critical tractor systems, including:
-
Engine Assembly
-
Cylinder block
-
Cylinder head
-
Crankcase
-
Crankshaft mechanism
-
Oil pump and lubrication paths
-
-
Fuel & Air Systems
-
Fuel supply system
-
Air intake system
-
Exhaust system
-
-
Cooling System
-
Cooling passages and flow paths
-
-
Power Transmission System
-
Clutch assembly
-
Gearbox
-
Transmission system
-
Final drive and rear axle
-
-
Chassis & Drive System
-
Engine-to-chassis drive
-
Structural layout of tractor frame
-
Each system is painted in distinct, contrasting colors, allowing quick identification and easy explanation of functional roles during training sessions.
Learning Advantages
The AZA1254 provides a hands-on learning experience that bridges the gap between theory and real-world machinery. Students can observe:
-
How engine power is generated and transmitted
-
The working of clutch and gearbox mechanisms
-
Power flow from engine to rear axle
-
Interaction between fuel, air, cooling, and lubrication systems
-
Mechanical sequencing and operational logic of a tractor
The model is supplied with a key card and instructional literature, supporting structured teaching and standardized demonstrations.
Applications
-
Agricultural engineering training
-
Mechanical engineering education
-
ITI and polytechnic workshops
-
Skill development programs
-
Demonstration labs for tractor operation and maintenance
-
Instructor-led classroom and laboratory teaching
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1254 |
| Type | Actual Cut Sectional Agricultural Tractor Model |
| Operation | Manual (Crank Handle Operated) |
| Construction | Fully dissectible, color-coded components |
| Mounted Frame | Heavy-duty iron frame |
| Stand Finish | Powder coated |
| Exposed Components | Cylinder block, cylinder head, crankcase, oil pump, fuel system, cooling system, air intake, exhaust system, clutch, gearbox, transmission, final drive, rear axle, engine/chassis drive |
| Educational Accessories | Key card and instructional literature |
| Dimensions (L × W × H) | 2200 × 1200 × 1400 mm |
| Weight | Approx. 650 kg |
Key Advantages
-
Real tractor assembly with precision cutaway design
-
Fully dissectible for detailed demonstrations
-
Clear color coding for easy component identification
-
Manual operation for real-time functional visualization
-
Heavy-duty, corrosion-resistant construction
-
Ideal for long-term institutional use
-
Supports practical, outcome-based technical education
Make: AZALAB
Model: AZA1254
