Cut Model of Automatic Transmission System AZA1249

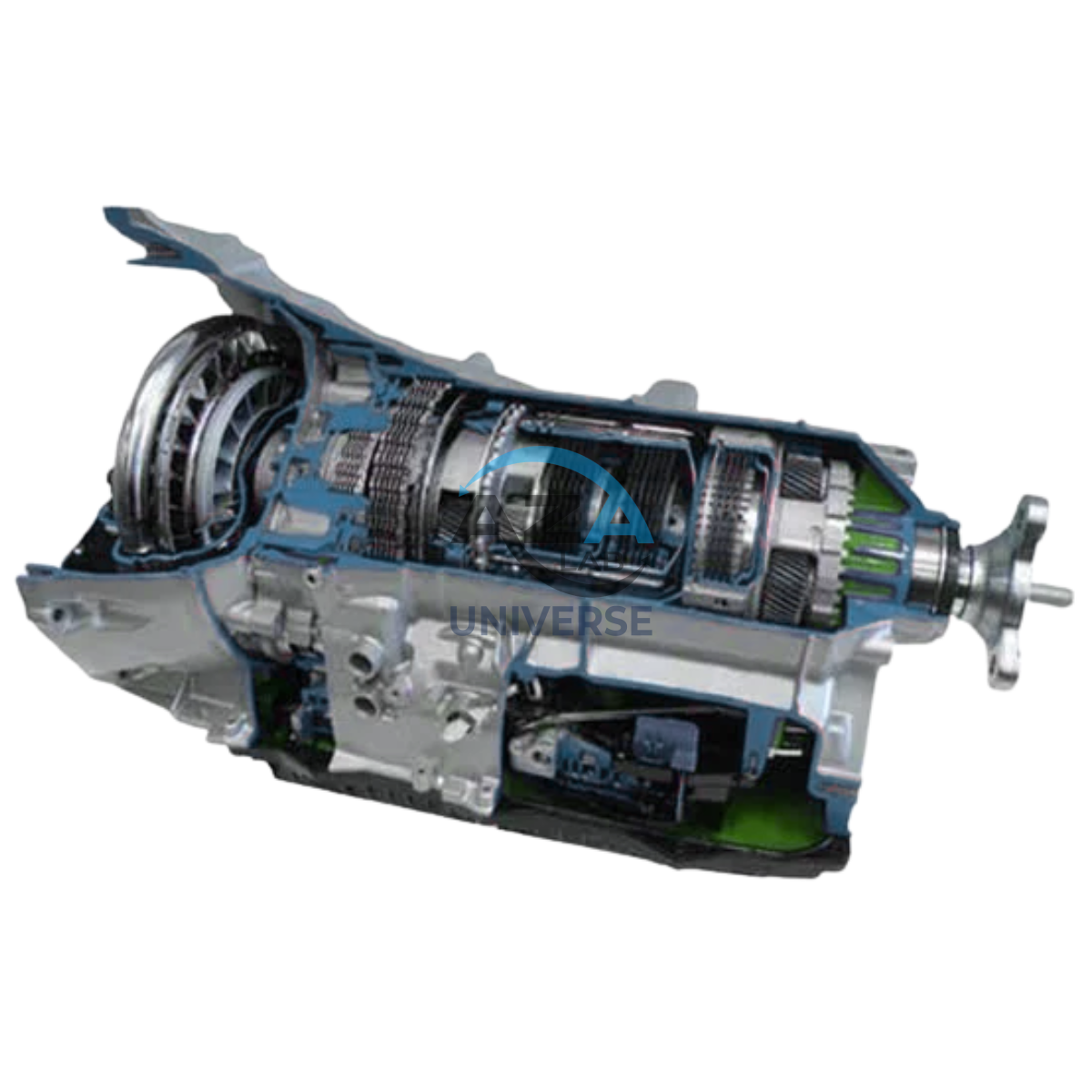

The AZA1249 Cut Model of Automatic Transmission System by AZALAB is a precision-engineered educational trainer designed to demonstrate the construction, operation, and working principles of a hydraulic automatic transmission system used in modern passenger vehicles. Developed using a full-size original car automatic transmission, this cutaway model provides an authentic, hands-on learning experience for automotive students and technicians.

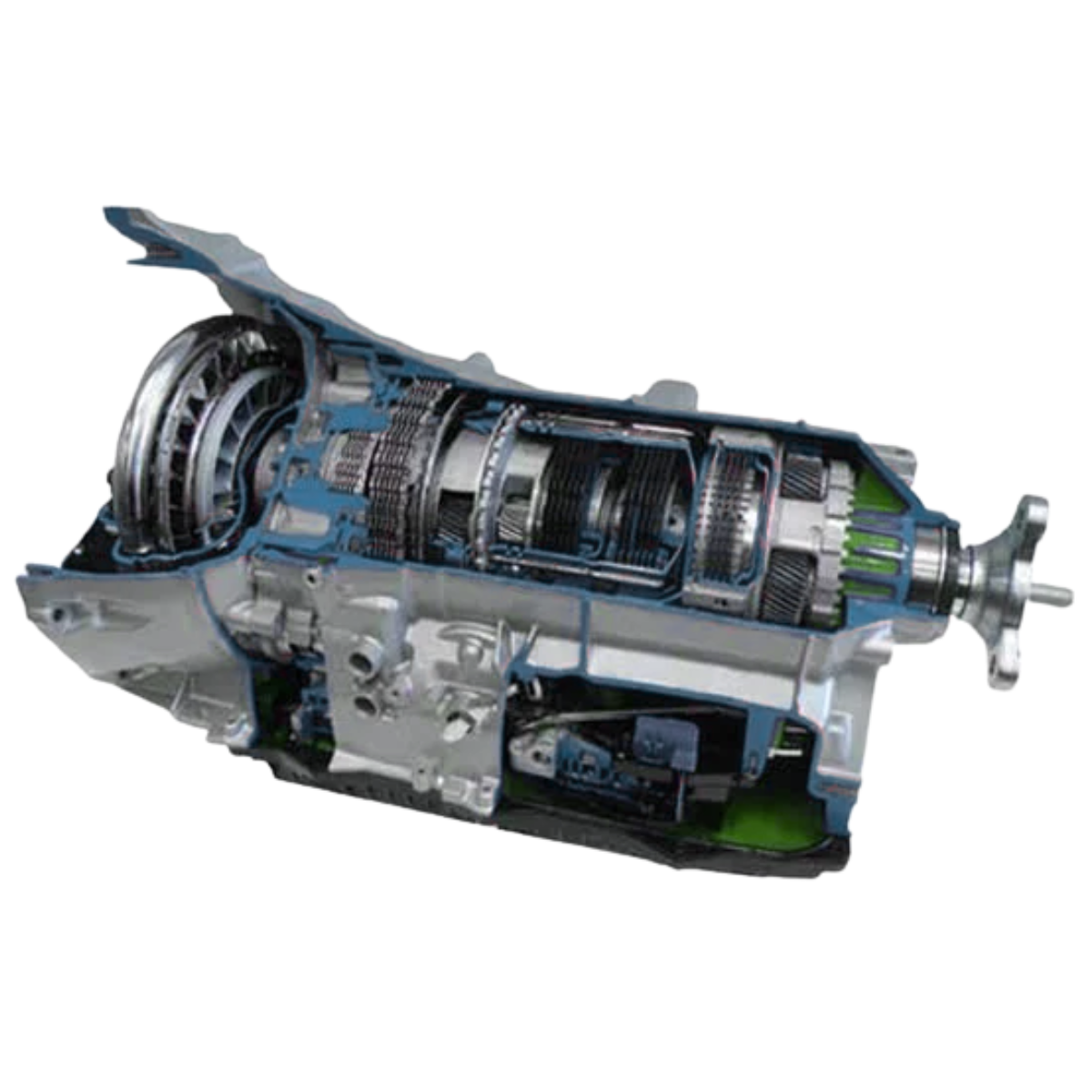

The transmission assembly is carefully sectioned and color-coded to expose all major internal components, allowing clear visualization of power flow, gear shifting logic, and hydraulic control mechanisms. Mounted on a sturdy tubular steel frame with wheels, the AZA1249 is easy to move within classrooms, laboratories, and workshops, making it ideal for group demonstrations and instructor-led training.
Description
Educational Design & Construction
The AZA1249 is manufactured from an actual hydraulic automatic transmission, ensuring real-world accuracy. All internal parts are precision cut, polished, electroplated, and color painted to highlight the interaction between mechanical and hydraulic systems. Chromium plating and galvanization protect the components from corrosion and wear, ensuring long service life even with repeated use.
The model is manually operated using a hand crank connected to the torque converter, allowing instructors to demonstrate how rotational input is transferred through the torque converter, planetary gear sets, and clutch packs. This manual operation enables students to visually follow gear engagement and understand automatic gear shifting sequences without electrical complexity.
Exposed Systems & Components
The AZA1249 cut model clearly displays and demonstrates:
-
Torque Converter
-
Pump, turbine, and stator arrangement
-
Fluid coupling principle
-
-
Planetary Gear System
-
Sun gear, planet gears, ring gear
-
Gear ratio changes
-
-
Clutch & Brake System
-
Multiple-plate clutches
-
Engagement and disengagement logic
-
-
Hydraulic Oil Circuit
-
Oil passages
-
Hydraulic control paths
-
-
Gear Selection Mechanism
-
Forward gears and reverse operation
-
The color-coded layout makes it easy to distinguish rotating, stationary, and hydraulically actuated components, significantly improving learning clarity.
Learning Outcomes
Using the AZA1249, students can clearly understand:
-
Principle of torque multiplication in a torque converter
-
Automatic gear shifting without manual clutch operation
-
Function of planetary gear trains
-
Role of hydraulic pressure in clutch actuation
-
Power transmission from engine to drivetrain
-
Difference between manual and automatic transmissions
This trainer bridges theoretical knowledge with mechanical reality, making it ideal for diagnostics training, system explanation, and concept reinforcement.
Applications
-
Automotive engineering education
-
ITI and polytechnic training programs
-
Skill development centers
-
Automobile service technician training
-
Classroom demonstrations and lab experiments
-
Understanding automatic transmission repair concepts
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1249 |
| Transmission Type | Hydraulic Automatic Transmission |
| Original System | Full-size car automatic transmission |
| Torque Converter | Included |
| Gear Configuration | 5 Forward Speeds + Reverse |
| Clutches | Multiple-plate clutches |
| Operation Method | Manual hand crank applied to torque converter |
| Frame Type | Tubular steel frame with wheels |
| Surface Treatment | Chromium plated, galvanized, color painted |
| Dimensions (L × W × H) | 750 × 550 × 700 mm |
| Weight | Approx. 110 kg |
Key Advantages
-
Real automotive automatic transmission used
-
Fully sectioned and color-coded for clarity
-
Manual operation for safe, controlled demonstrations
-
Clear visualization of torque converter and planetary gears
-
Heavy-duty mobile frame for classroom use
-
Long-life corrosion-resistant construction
-
Ideal for practical, outcome-based automotive education
Make: AZALAB
Model: AZA1249
- Mounted on a robust tubular frame for easy movement
- Full-size original automatic transmission system used
- Color-coded components for easy identification
- Sectioned view of torque converter, planetary gears, and clutches
- Durable chromium-plated and galvanized parts for long-lasting use
- Electroplated gears and hardware for enhanced durability
- Manual operation via hand crank applied to the torque converter
| Component | Details |
|---|---|
| Model | AZA 1249 |
| Transmission Type | Hydraulic Automatic |
| Torque Converter | Included |
| Gear Change | 5 forward speeds plus reverse |
| Clutches | Multiple-plate clutches |
| Operation | Manual hand crank applied on torque converter |
| Frame | Tubular frame with wheels |
| Dimensions (L x W x H) | 750 x 550 x 700 mm |
| Weight | 110 kg |
