LAB Cut Model of Turbocharger AZA1252

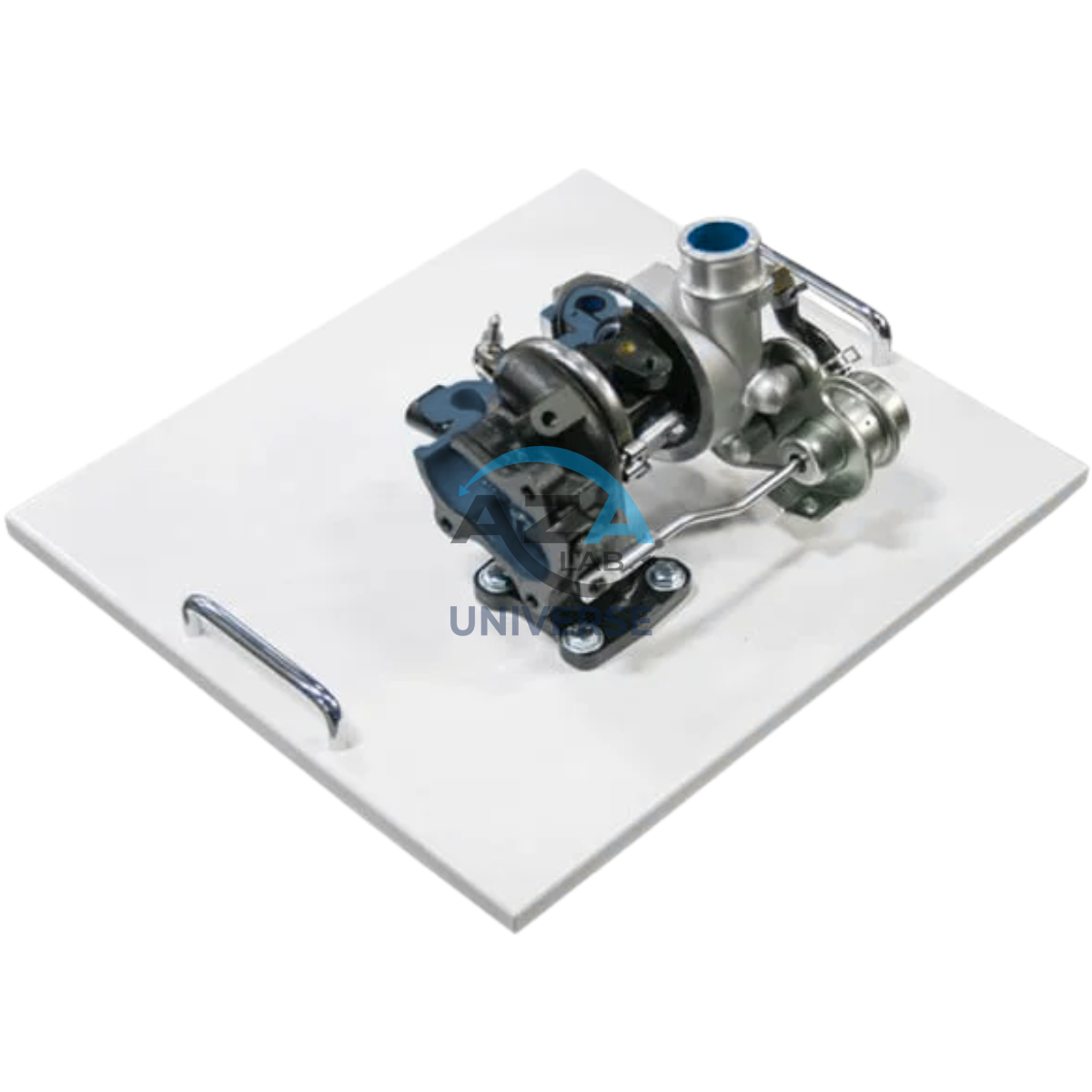

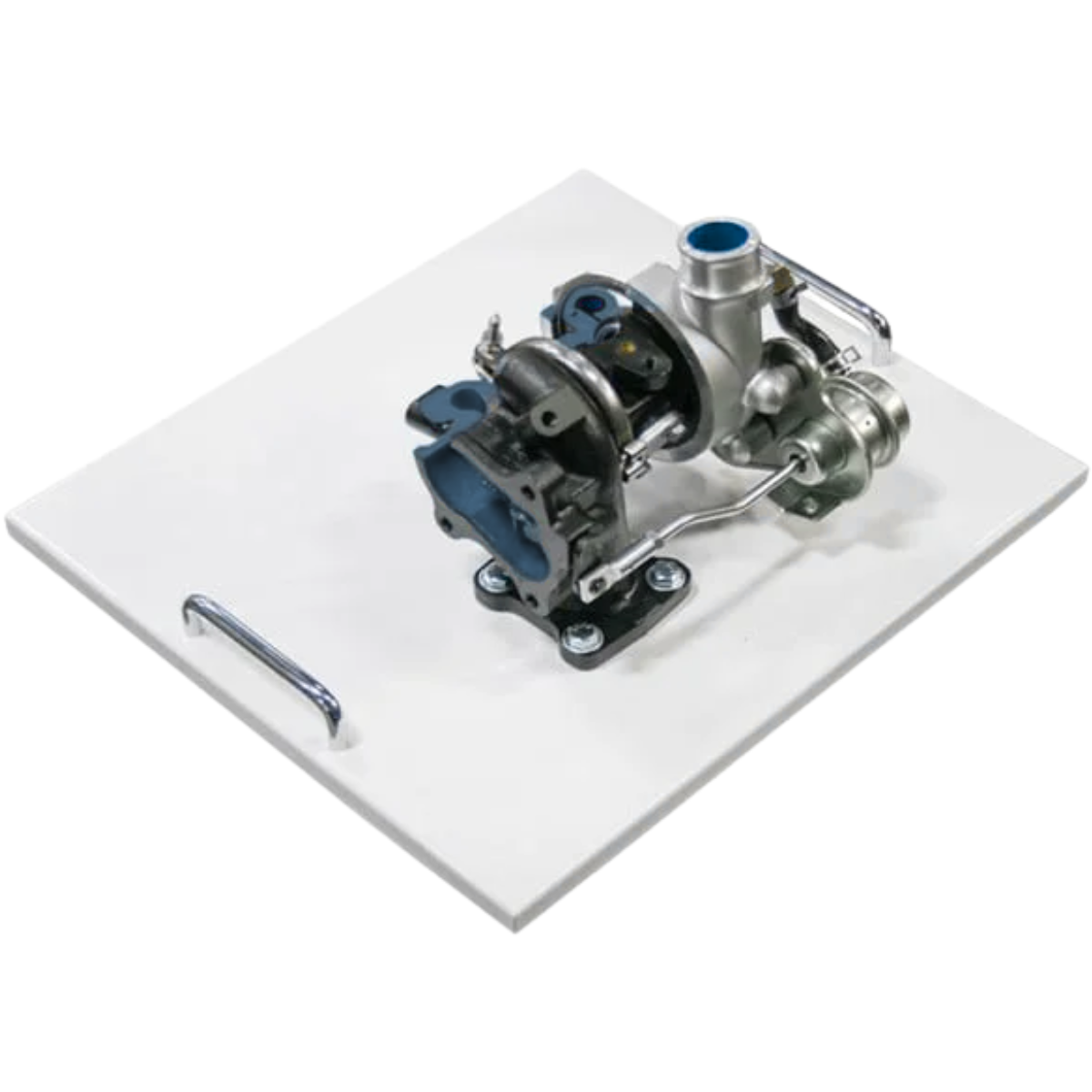

The AZA LAB Cut Model of Turbocharger – Model AZA1252 is a detailed educational cutaway designed to clearly demonstrate the working principles of a turbocharger used in modern automotive engines. This model provides an in-depth visual understanding of forced induction systems, showing how exhaust gases drive a turbine to compress intake air and increase engine power and efficiency.
Purpose-built for engineering education and technical training, the AZA1252 exposes all critical internal components, allowing students to study airflow, exhaust flow, and cooling pathways in a realistic and intuitive manner.
Description
Key Benefits
-
Enhances understanding of turbocharger operation and forced induction
-
Provides hands-on, visual learning for automotive and mechanical students
-
Built using real automotive components for authentic demonstration
-
Ideal for classrooms, laboratories, and training centers
-
Durable construction for long-term institutional use
Features
-
Educational Cutaway Design
Precisely sectioned to clearly illustrate the internal construction and working mechanism of a turbocharger. -
Visible Turbocharger Components
Displays air intake, compression impeller, air outlet, exhaust gas outlet, and water cooling channels for complete functional understanding. -
Real Automotive Components
Manufactured using actual turbocharger parts to ensure accurate representation of real-world systems. -
Forced Induction Demonstration
Helps students understand how exhaust-driven turbines increase air intake and engine power compared to naturally aspirated engines. -
Durable & Professional Finish
Finished with high-quality automotive-grade paints for durability, corrosion resistance, and clear visual contrast.
Applications
-
Automotive engineering laboratories
-
Mechanical engineering institutes
-
Polytechnic and vocational training centers
-
Engine technology and IC engine courses
-
Classroom demonstrations of turbocharging systems
Technical Specifications – AZA1252
| Specification | Details |
|---|---|
| Model | AZA1252 |
| Make | AZA LAB |
| Air Intake | Sectioned for visibility |
| Compression Impeller | Fully visible cutaway |
| Air Outlet | Clearly displayed |
| Exhaust Gas Outlet | Visible and demonstrative |
| Water Cooling Channels | Sectioned and highlighted |
| Construction | Real automotive components |
| Dimensions (L × W × H) | 400 × 400 × 300 mm |
| Weight | 14 kg |
Educational Value
Using the AZA1252 Cut Model of Turbocharger, students can clearly understand:
-
Turbocharger airflow and exhaust flow paths
-
Role of the turbine and compressor impeller
-
Difference between turbochargers and superchargers
-
Impact of turbocharging on engine performance and efficiency
Why Choose AZA LAB?
AZA LAB designs and manufactures high-quality engineering educational models that transform theoretical concepts into clear, practical understanding. The AZA1252 Turbocharger Cut Model is built for accuracy, durability, and effective learning in technical education environments
