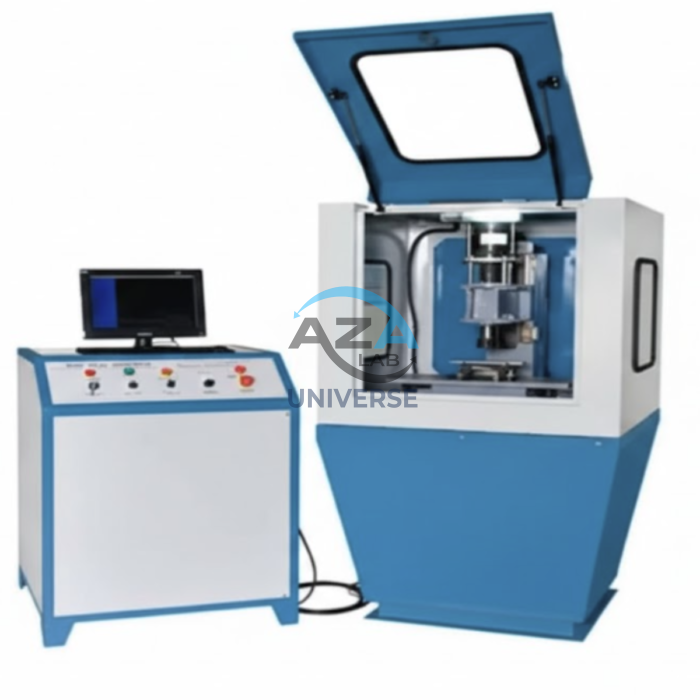

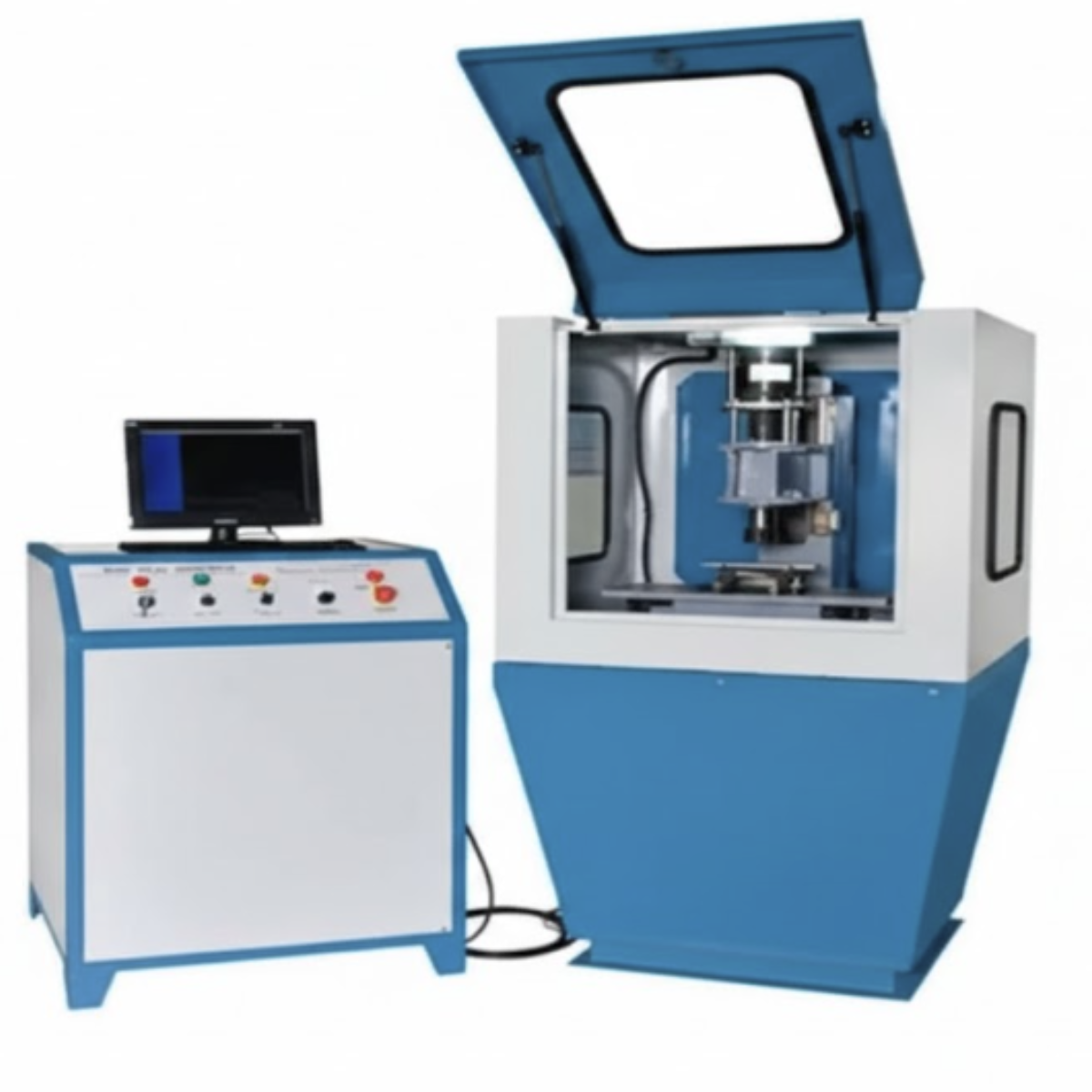

ECO CNC Mill Trainer (AZA 1256)
The A Z A LAB ECO CNC Mill Trainer – AZA 1256 is an advanced training machine designed to provide hands-on learning in CNC milling operations. It features precise control over X, Y, and Z axes, multiple modes for execution, and safety interlocks, making it ideal for educational and industrial training environments.
Description
The A Z A LAB ECO CNC Mill Trainer – AZA 1256 is a high-quality, computer numerical controlled (CNC) milling machine designed for training purposes. CNC milling is an essential process in modern machining that involves using a rotating cylindrical cutting tool to shape materials. The AZA 1256 is specifically developed to deliver accurate, hands-on training experiences for students and professionals in educational institutions or training centers.
This versatile CNC Mill Trainer offers precise control over X, Y, and Z axes with stepper motors and recirculating ball screws for enhanced stability and accuracy. It features a manually operated MT2 Taper Collet Holder, ensuring smooth operations in both circular and rectangular interpolation in the X and Y planes. Designed for safety, it comes with limit switches, emergency stop functions, and faulty tool detection, ensuring the best learning experience without compromising safety.
With program entry options via keyboard or PC, as well as multiple execution modes such as single block, auto, and jog, users can explore various milling functions like slot milling, peck drilling, and circular pocket milling. The A Z A LAB ECO CNC Mill Trainer – AZA 1256 is built with durability and educational efficiency in mind, making it a top choice for CNC milling training.
- Table Locking Facility with stepper motor for enhanced stability.
- Slide Motion through recirculating ball screw for smooth and accurate movement.
- Manual MT2 Taper Collet Holder for simple and efficient tool holding.
- Circular and Rectangular Interpolation in X and Y planes for flexible operations.
- Multiple Execution Modes including Single Block, Auto, and Jog for program control.
- Canned Cycle Support for drilling, peck drilling, and slot milling.
- Safety Features including axis limit switches and emergency stop function.
- Fault Detection for improper or faulty tool operation sequences.
- Rapid Traverse Rate and adjustable feed rate for improved operational control.
- Compact Design with small footprint, suitable for workshops and educational labs.
| Specification | Details |
|---|---|
| Model Number | AZA 1256 |
| Table Size | 500 x 200 mm |
| T Slot Size | 10 mm |
| X Axis Traverse | 200 mm |
| Y Axis Traverse | 160 mm |
| Z Axis Traverse | 190 mm |
| Spindle Speed | 100-1500 RPM |
| Spindle Power | 0.5 HP |
| Axes Control | 3 Axis (X, Y & Z Simultaneously) |
| Least Count | 0.005 mm |
| Rapid Traverse Rate | 400 mm / min |
| Feed Rate | 0 - 200 mm / min |
| Axis Drive | DC Stepper Motor for all axes |
| Programming | G, M, F, I, J, K |
| Electrical Power | 230 V, 50 Hz |
| Machine Dimensions (L x W x H) | 800 x 600 x 1000 mm |
| Machine Weight | 180 kg |
