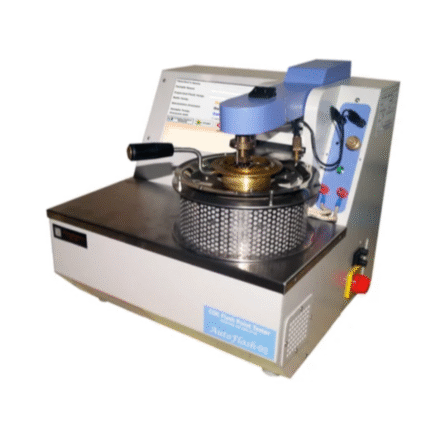

AutoFlash-92 – Automated Cleveland Open Cup Flash Point Analyzer(AZA 1292)
The AutoFlash-92 is a programmable, fully automated, microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer. Designed for precision, speed, and safety, it conforms to global standards for petroleum product analysis, particularly for viscous materials with flash points ranging from above 79°C to 400°C, excluding fuel oils.
Standards Compliance
-
ASTM D92
-
ISO 2592
-
IS 1448 (P:69)
-
IP 36
Measurement System:
| Parameter | Specification |
|---|---|
| Auto Calibration | Before each run, no calibration device needed |
| Sample Temp. | PT100 Class A, SS sheath; 0 to 400°C, resolution 0.1°C |
| Bath Temp. | PT100 Class A, Disk Type; 0 to 500°C |
| Flash Detection | Ionization Ring |
| Fire Detection | Thermal Sensor |
| Ambient Pressure | Built-in sensor; 700–1100 hPa (500–800 mmHg) |
Description
Key Features
-
Standalone model with inbuilt PC and 8.4” display
-
Fully programmable with user-defined, unknown sample search, and rapid heating modes
-
Easy operation: select method, enter expected flash point, and start
-
Auto completion alerts with result display and data storage
-
Rapid heating up to user-specified temperature
-
Interchangeable electric or gas igniter
-
Automatic barometric pressure correction
-
Built-in safety interlocks and fire extinguishing mechanism.
Operating Requirements:
| Parameter | Value |
|---|---|
| Power Supply | 230 V AC, 50 Hz, 1500 W |
| Ambient | 10°C to 35°C, RH ≤ 80% at 35°C |
| Housing | W: 410 mm, D: 420 mm, H: 330 mm |
| Weight | 16 kg |
- Certified Reference Material (Low Flash Point) – 250 ml
- Certified Reference Material (High Flash Point) – 250 ml
Technical Specifications
User Interface
- Windows-based software
- Stores methods and test results
- Optional printer support
| Feature | Specification |
|---|---|
| Heating | 1000 W Coil Heater @ 230 VAC |
| Heat Rate | 1 – 20°C/min (user programmable) |
| Cooling | Centrifugal Blower, 56.5 CFM, 35 W @ 230 VAC |
| Ignition | Stepper motor controlled; 7-step adjustable brightness (Electric) |
| Arm Movement | Automatic swing arm (Stepper motor controlled) |
| Integrated Components | Sample temperature sensor, Flash Detector, Fire Detector, Igniter |
| Flame Extinguisher | Auto shutter closes over cup on fire/flash detection |
Related products
Semi‑Automated Twin Distillation Analyzer (AZA 1284)
- ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195
Why Choose Semi‑Automated Twin Distillation Analyzer?
- Twin simultaneous distillation boosts laboratory throughput
- Combines semi-automation with manual fine control for flexibility
- Includes comprehensive safety features and PID-regulated temperature control
- Modular accessories allow tailored configurations based on lab needs
AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER(AZA 1279)
AutoFlash-1278 is a programmable, fully automated, microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer conforming to standards:
ASTM D92, ISO 2592, IS 1448 (P:69), IP 36.
It is suitable for all petroleum products, especially viscous materials, with flash points:
-
Above 79°C and
-
Below 400°C (excluding fuel oils)
Also used to determine the fire point, i.e., the temperature at which the test specimen sustains combustion for a minimum of 5 seconds.
Aza Lab Dist‑86S (AZA 1288)
AZA-LAB Classic Open Cup Flash Point Apparatus (AZA – 1294)
This Flash Point Tester is designed to accurately determine the flash point of petroleum products using the Cleveland Open Cup method. Ideal for quality control, research labs, and routine testing, it ensures safe and reliable operation.
Dist‑86S Semi‑Automated Distillation Analyzer (AZA 1283)
Standards & Methods
- ASTM D86, D850, D1078
- ISO 3405, IP123, IP195
- JIS K2254, IS 1448 P:18

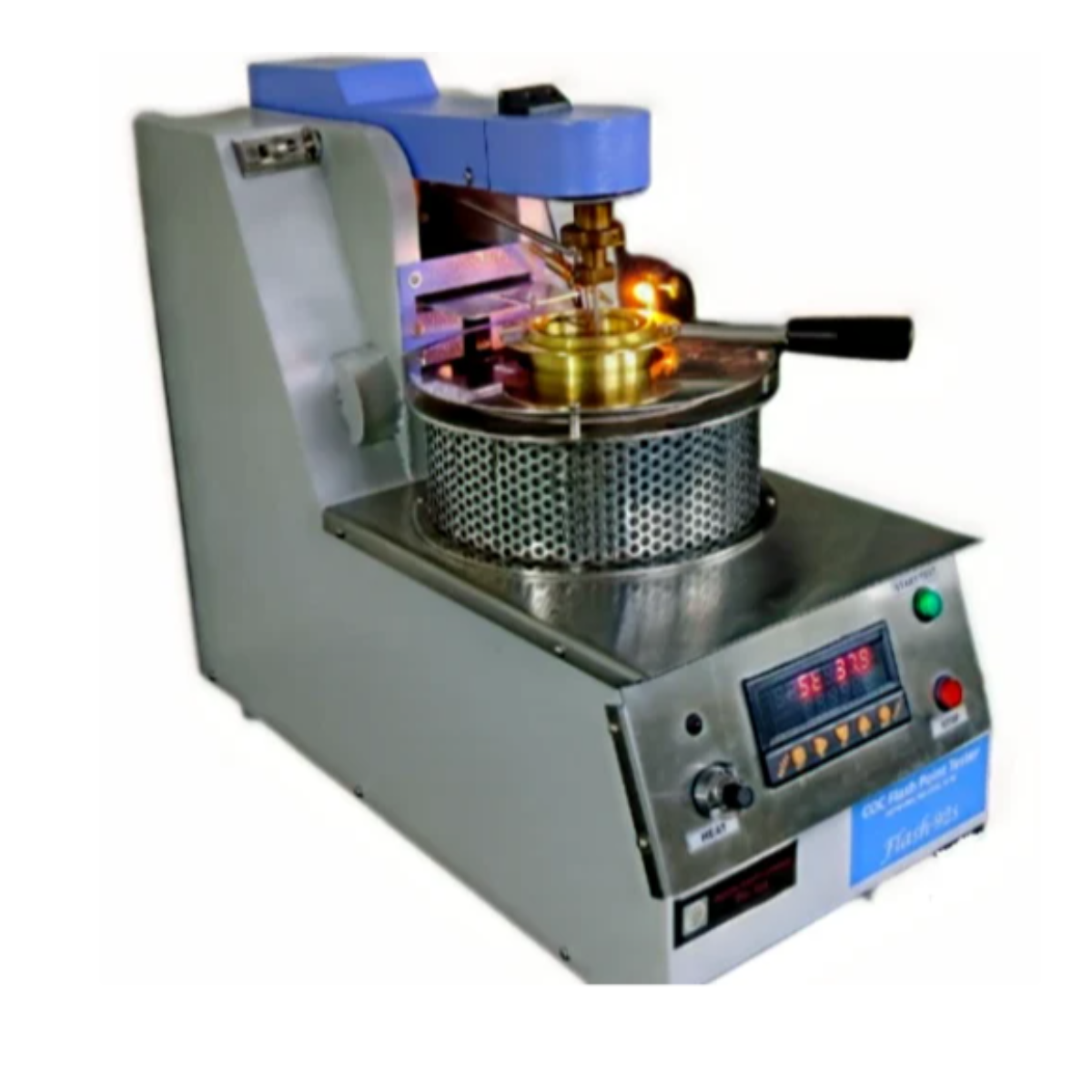

Flash-92s – Cleveland Open Cup Flash Point Analyzer(AZA 1291)
