AutoFlash- Automated ABEL Flash Point Analyzer (AZA 1278)
The AutoFlash-1278 is a fully automated, microcontroller-based ABEL Flash Point Analyzer, specifically designed for the determination of the flash point of combustible liquids. It conforms to IP 170, ISO 13736, and IS 1448 (P:20) standards, ensuring high precision and repeatability.
It determines flash points within a temperature range of -30°C to 70°C, and can be extended to 110°C for specialized applications. The device is ideal for laboratories handling petroleum products, quality control, R&D, and regulatory compliance.
Description
Key Features:
-
Integrated standalone model with built-in PC and display.
-
Accurate flash point determination conforming to international standards.
-
Pre-programmed methods and easy operational workflow.
-
Rapid heating for high flash point materials.
-
Smart search programs for unknown sample testing.
-
Interchangeable gas or electric igniter source.
-
Automatic barometric pressure correction.
-
Comprehensive interlock system for enhanced safety.
Safety Interlocks:
-
Sensor fault (bath/sample)
-
Flash detector error
-
Igniter malfunction
-
Test stoppage at over-temp
-
Fire detection: Buzzer & power cut-off
-
Arm position check
| Parameter | Details |
|---|---|
| Heating/Cooling | Cartridge heater (300W), Optional Cryostat cooling up to -30°C |
| Stirring | Stepper motor controlled, 5 to 100 rpm |
| Ignition | Stepper motor-controlled movement with electric/gas igniter (0.5–5°C dipping), 7-step brightness control |
| Arm Movement | Automatic swing arm with integrated sensors and ignition |
| User Interface | Windows-based software with result storage, USB for printer, built-in display |
| Parameter | Specification |
|---|---|
| Auto Calibration | Pre-run auto temperature calibration |
| Sample Temp Sensor | PT100 Class A, SS sheath / Glass (-100°C to 150°C) |
| Bath Temp Sensor | PT100 Class A, Disk Type (-100°C to 200°C) |
| Flash Detection | Thermal sensor |
| Fire Detection | Thermal sensor |
| Ambient Pressure | 700 to 1100 hPa (500 to 800 mmHg) |
Related products
Semi‑Automated Twin Distillation Analyzer (AZA 1284)
- ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195
Why Choose Semi‑Automated Twin Distillation Analyzer?
- Twin simultaneous distillation boosts laboratory throughput
- Combines semi-automation with manual fine control for flexibility
- Includes comprehensive safety features and PID-regulated temperature control
- Modular accessories allow tailored configurations based on lab needs

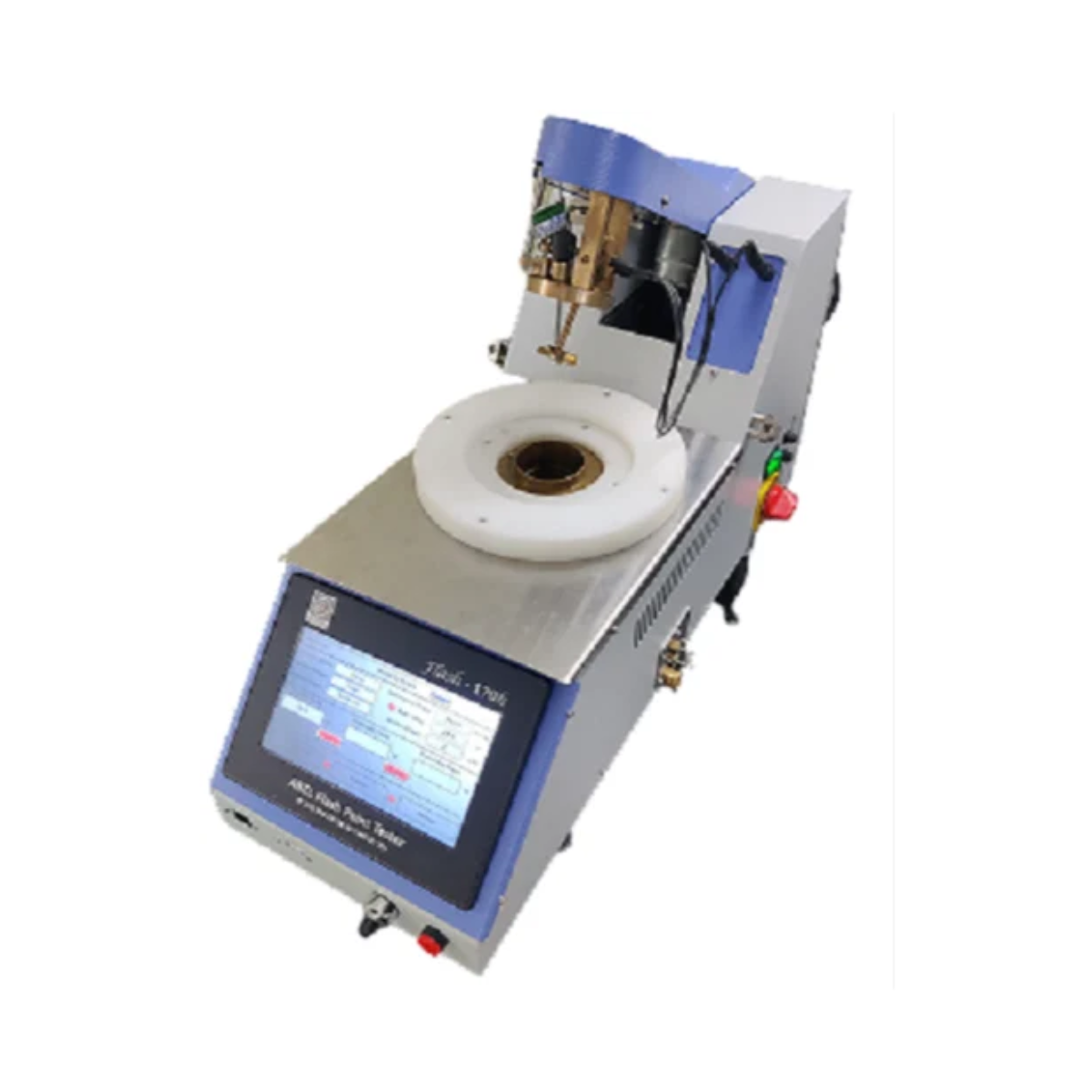

ABEL CLOSED CUP FLASH POINT TESTER (AZA 1280)
AutoFlash-92 – Automated Cleveland Open Cup Flash Point Analyzer(AZA 1292)
Standards Compliance
-
ASTM D92
-
ISO 2592
-
IS 1448 (P:69)
-
IP 36
| Parameter | Specification |
|---|---|
| Auto Calibration | Before each run, no calibration device needed |
| Sample Temp. | PT100 Class A, SS sheath; 0 to 400°C, resolution 0.1°C |
| Bath Temp. | PT100 Class A, Disk Type; 0 to 500°C |
| Flash Detection | Ionization Ring |
| Fire Detection | Thermal Sensor |
| Ambient Pressure | Built-in sensor; 700–1100 hPa (500–800 mmHg) |
AZA-LAB Classic Open Cup Flash Point Apparatus (AZA – 1294)
This Flash Point Tester is designed to accurately determine the flash point of petroleum products using the Cleveland Open Cup method. Ideal for quality control, research labs, and routine testing, it ensures safe and reliable operation.
Dist‑86S Semi‑Automated Distillation Analyzer (AZA 1283)
Standards & Methods
- ASTM D86, D850, D1078
- ISO 3405, IP123, IP195
- JIS K2254, IS 1448 P:18
Fully Automated Atmospheric Distillation Analyzer (AZA 1287)
Semi‑automated atmospheric distillation analyzer(AZA 1285)

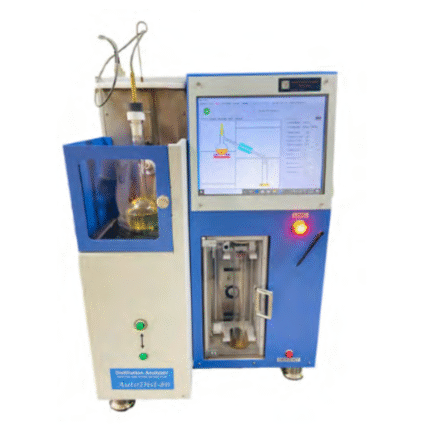

The AutoDist‑86 by Aza Lab is a semi-automated desktop analyzer designed for petroleum-product distillation tests under atmospheric pressure. Compliant with major standards—ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195—it’s capable of accurately distilling hydrocarbon samples ranging from gasoline to diesel and aromatics
