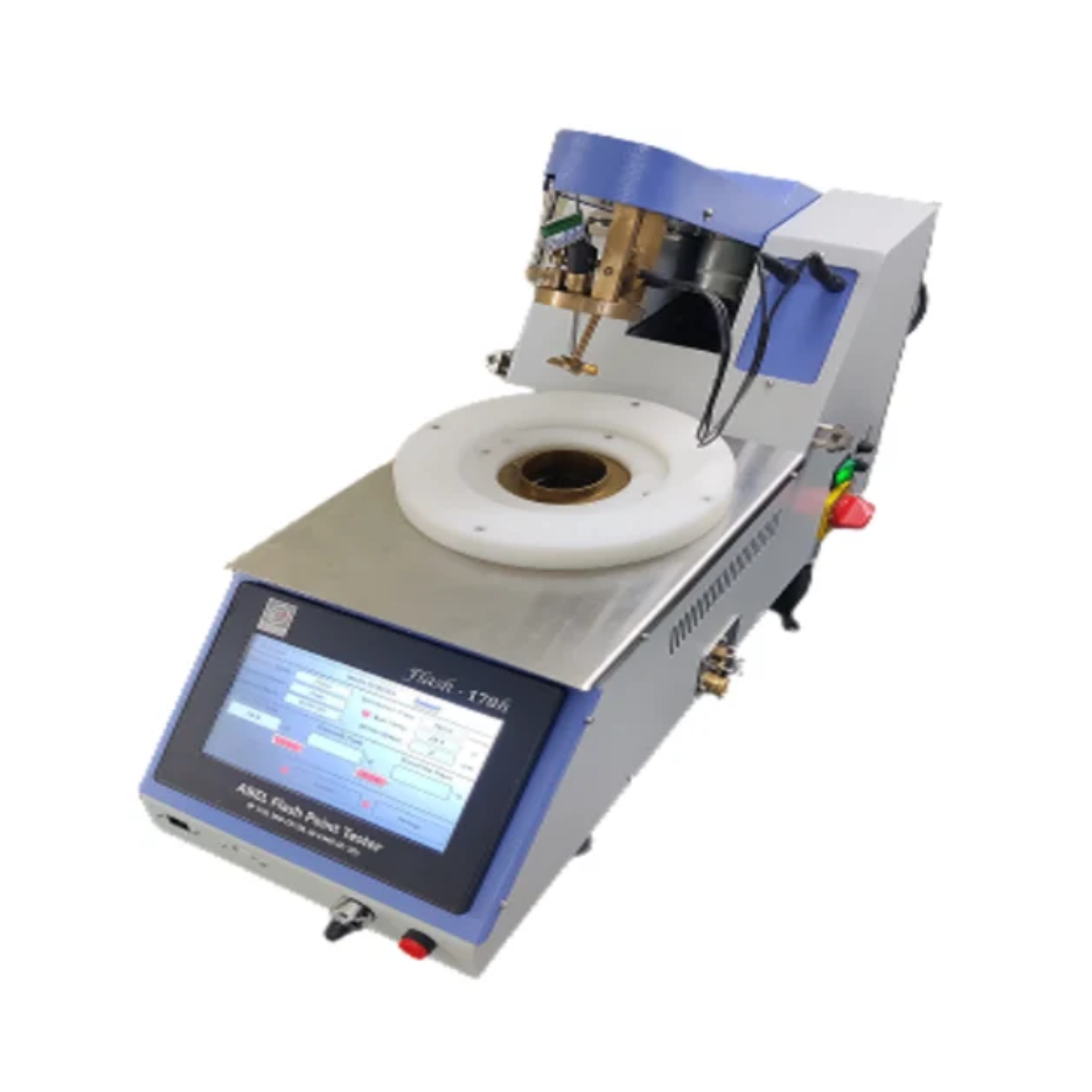

AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER(AZA 1279)
AutoFlash-1278 is a programmable, fully automated, microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer conforming to standards:
ASTM D92, ISO 2592, IS 1448 (P:69), IP 36.
It is suitable for all petroleum products, especially viscous materials, with flash points:
-
Above 79°C and
-
Below 400°C (excluding fuel oils)
Also used to determine the fire point, i.e., the temperature at which the test specimen sustains combustion for a minimum of 5 seconds.
Description
Features:
- Standalone model with inbuilt PC & display
- Accurate flash point determination
- Simple operation: enter flash point, click start – fully automated process with result saving
- Rapid heating until temperature is just below expected flash point
- Inbuilt search mode for unknown samples
- Interchangeable gas or electric igniter source
Methods & Interface:
-
Methods: ASTM D92, ISO 2592, IS 1448 (P:69), IP 3
-
Rapid heating with user-defined procedures
-
User Interface: Windows-based software with method storage
-
Display: 8.4” touchscreen, optional printer support
- Heating: Cartridge Heater @ 300W
- Cooling:
- Peltier: +10°C to +110°C (Air-cooled to +25°C)
- Refrigerated Circulator: -30°C to +110°C
- Stirring: Stepper motor, 5–100 RPM
- Ignition:
- DC motor driven
- Selectable electric/gas igniter
- 0.5 to 5°C dipping intervals
- Precise gas flow control
- Auto gas igniter & 3-step electric igniter brightness
- Arm Movement: DC motorized swing arm with fixed cup, sensors, and igniter
-
Auto Calibration: Before each run, no external calibration device needed
-
Sample Temp: PT100 Class A, SS/Glass, -100°C to +150°C
-
Bath Temp: PT100 Class A, Disk type, -100°C to +200°C
-
Flash Detection: Thermal sensor
-
Fire Detection: UV sensor
-
Ambient Pressure: Built-in sensor, 700–1100 hPa
