Automated Cleveland Open Cup Flash Point & Fire Point Analyzer(AZA 1276)

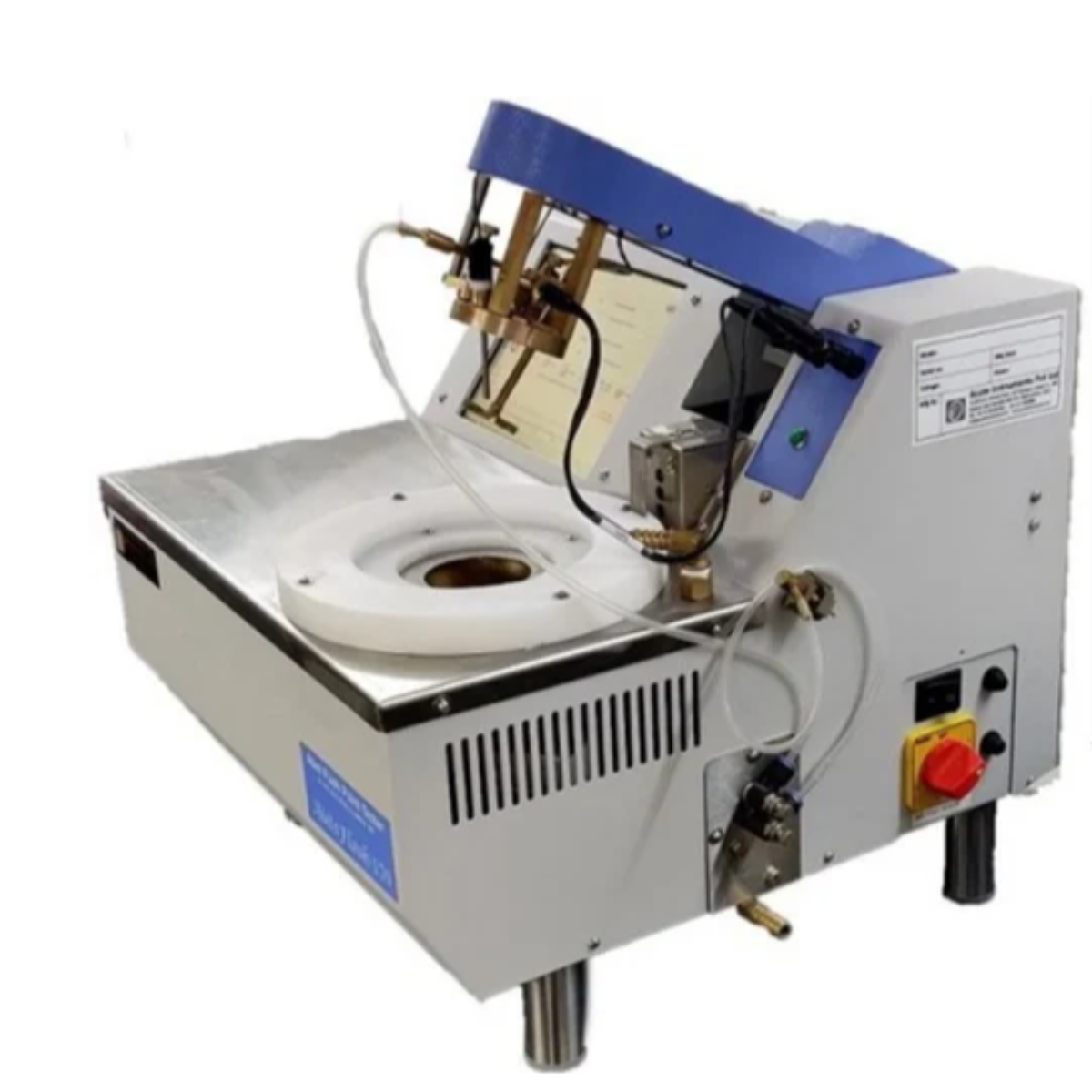

The AZA Lab AutoFlash-1276 (v2.0) is a fully programmable, microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer, designed to comply with ASTM D92, ISO 2592, IS 1448 (P:69), and IP 36 standards.
It is ideal for testing petroleum products, especially viscous materials, with flash points above 79°C and below 400°C (excluding fuel oils). The analyzer also determines the fire point—the temperature at which the sample sustains combustion for at least 5 seconds.
Description
Key Features
-
Standalone unit with built-in PC and display
-
Precise determination of flash and fire points
-
Easy-to-use interface: Select procedure, input expected flash point, press start
-
Rapid heating until just below the selected expected flash point
-
Search programs to identify unknown sample flash points
-
Gas or electric igniter – interchangeable based on application
-
Automatic barometric pressure compensation
-
Robust interlock system for safe and reliable operation
| Function | Details |
|---|---|
| Heating | Coil heater 1000W @ 230 VACHeating rate: 1–20°C/min (user-defined or method-based) |
| Cooling | Centrifugal blower, 56.5 CFM, 35W @ 230 VAC |
| Ignition | Stepper motor-controlled movement7-step Electric Igniter brightness adjustment |
| Arm Movement | Stepper-controlled swing arm with fixed components: sample cup, flash/fire sensors, igniter |
| Flame Extinguisher | Automatic flame suppression after flash/fire point detection |
| Parameter | Specification |
|---|---|
| Auto Calibration | Auto temperature calibration before every test—no external device required |
| Sample Temperature | PT100 Class A, SS Sheath; 0°C to 400°C |
| Bath Temperature | PT100 Class A, Disk Type; 0°C to 500°C |
| Flash Detection | Ionisation ring |
| Fire Detection | Thermal sensor |
| Ambient Pressure | Built-in sensor; 700–1100 hPa (500–800 mmHg) |
Related products
ABEL CLOSED CUP FLASH POINT TESTER (AZA 1280)
AutoFlash- Automated ABEL Flash Point Analyzer (AZA 1278)
The AutoFlash-1278 is a fully automated, microcontroller-based ABEL Flash Point Analyzer, specifically designed for the determination of the flash point of combustible liquids. It conforms to IP 170, ISO 13736, and IS 1448 (P:20) standards, ensuring high precision and repeatability.
It determines flash points within a temperature range of -30°C to 70°C, and can be extended to 110°C for specialized applications. The device is ideal for laboratories handling petroleum products, quality control, R&D, and regulatory compliance.
AutoFlash-92 – Automated Cleveland Open Cup Flash Point Analyzer(AZA 1292)
Standards Compliance
-
ASTM D92
-
ISO 2592
-
IS 1448 (P:69)
-
IP 36
| Parameter | Specification |
|---|---|
| Auto Calibration | Before each run, no calibration device needed |
| Sample Temp. | PT100 Class A, SS sheath; 0 to 400°C, resolution 0.1°C |
| Bath Temp. | PT100 Class A, Disk Type; 0 to 500°C |
| Flash Detection | Ionization Ring |
| Fire Detection | Thermal Sensor |
| Ambient Pressure | Built-in sensor; 700–1100 hPa (500–800 mmHg) |
Aza Lab Dist‑86S (AZA 1288)
Dist‑86S Semi‑Automated Distillation Analyzer (AZA 1283)
Standards & Methods
- ASTM D86, D850, D1078
- ISO 3405, IP123, IP195
- JIS K2254, IS 1448 P:18
Precision Automated Distillation Analyzer (AZA 1281)

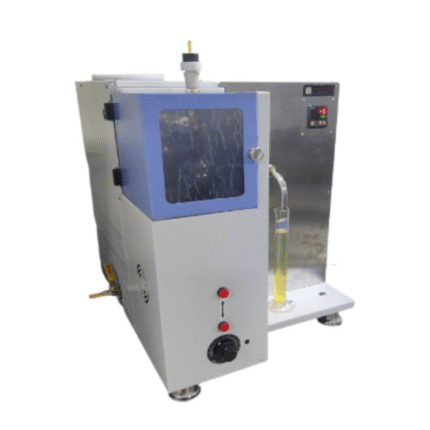

AutoDist‑86 is a fully automated, programmable distillation system built on microcontroller/PC control with Peltier condenser cooling. It’s ideal for ASTM D86, D850, D1078, D189, ISO 3405, IP123, IP195, JIS K2254, IS 1448 P:18 methods. Suitable for analysis of gasoline, kerosene, diesel, solvents, oils, and aromatics under atmospheric pressure.
Semi‑automated atmospheric distillation analyzer(AZA 1285)
The AutoDist‑86 by Aza Lab is a semi-automated desktop analyzer designed for petroleum-product distillation tests under atmospheric pressure. Compliant with major standards—ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195—it’s capable of accurately distilling hydrocarbon samples ranging from gasoline to diesel and aromatics
Semi‑Manual Distillation Analyzer(AZA 1286)
Dimensions & Power Requirements
-
Size: 50 × 65 × 65 cm, Weight: 40 kg
-
Electrical: 230 VAC, 50 Hz, 800 W power consumption
