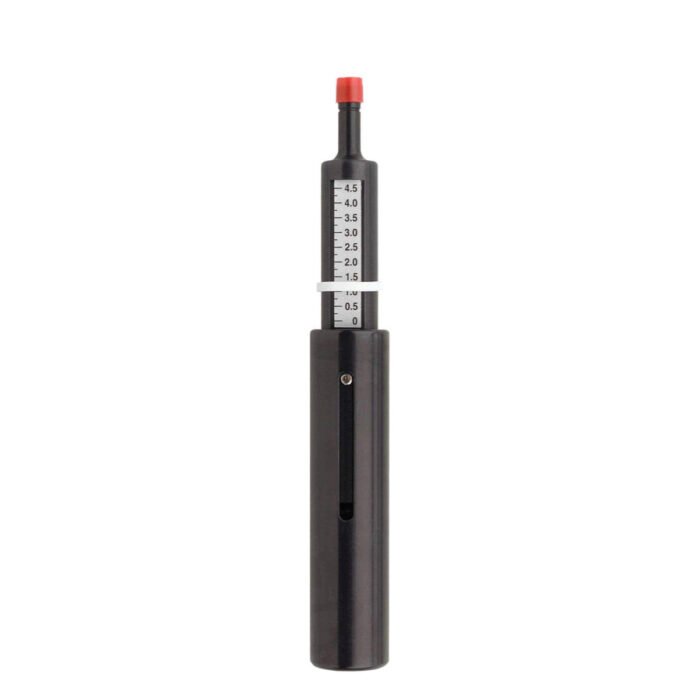

AZA 0869 POCKET PENTROMETER

ASTM D 1558 D 2573
This instrument is used to estimate approximate unconfined
compressive strength and the estimation to shear strength of soil
Cohesive soils can also be classified in terms of consistency
using this Penetrometer. This is a handy and convenient
instrument.
Specification:
It consists of a light weight barrel assembly with a polished and
ground steel loading piston plunger. A direct reading scale is
engraved on the piston barrel and indicates load in kg. / sq.
cm. A maximum load indicator ring is provided on the
penetration plunger. The calibrated spring is heat treated and
plated for rust resistance. The barrel diameter is 20mm and the
length 150mm. Supplied with carrying case
