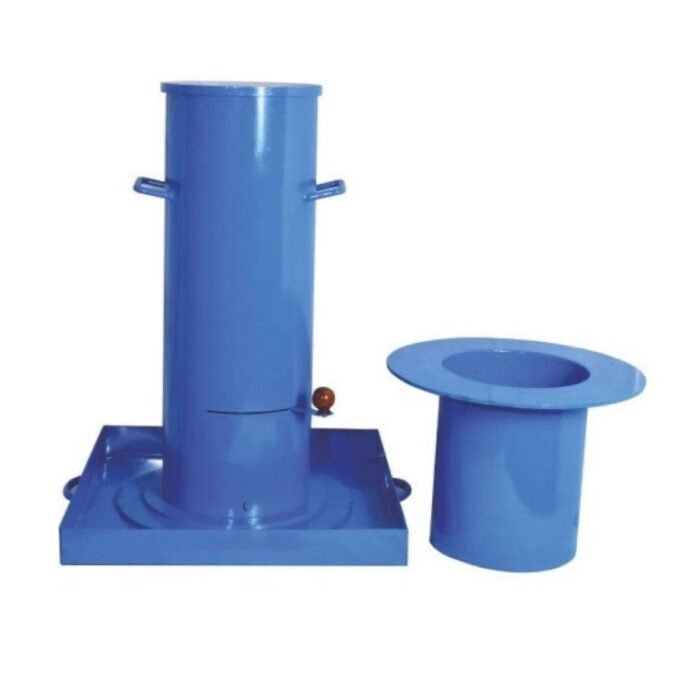

AZA 0879 SAND POURING CYLINDER
IS 2720 (PART XXVIII) 1966
This apparatus is used for the in place determination of the
dry density of compact, line and medium grained soils and
for layers not exceeding 500mm thickness. The complete
apparatus consists one each of Small sand pouring cylinder,
3 litre capacity fitted with conical funnel and shutter. Cylinder
calibrating container, internal dia 100mm and 150mm
height.
Accessories:
Metal tray, 300mm square and 40mm deep with hole.
Note:
Sand pouring cylinder Medium (150mm) and Large
(200mm) as per IS 2720 (P-XXVIII) also available.
