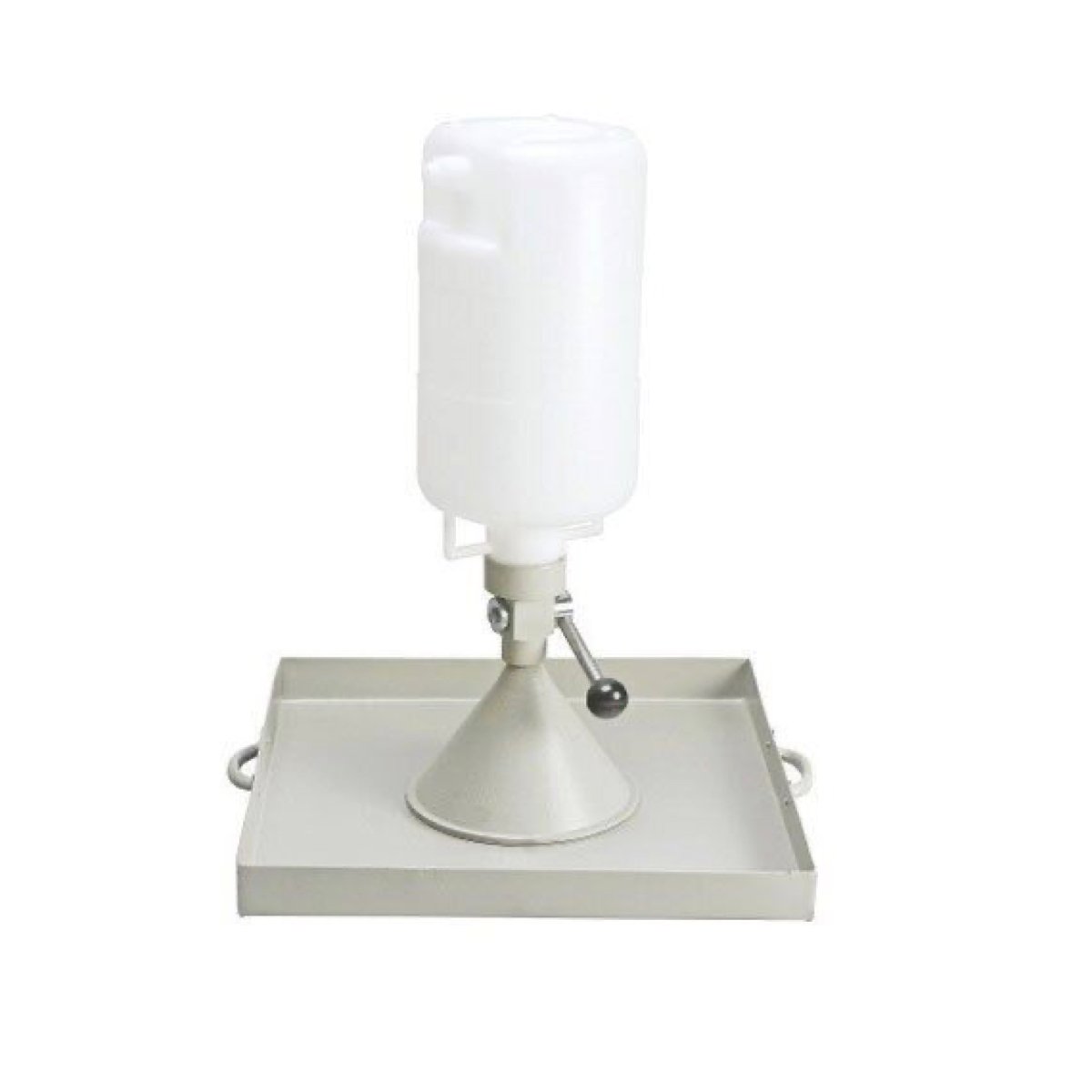

AZA 0881 SAND DENSITY CONE APPARATUS
ASTM D 1556- AASHTO T 191
Specification:
Used to determine the in-situ density of fine grained
compacted soil. The test consist in digging a hole into the
ground and then collect, dry and weight the sampled soil.
The hole is then filled with dry sand from the cone
container. The apparatus consist of a double metal cone,
one plastic 5 lts jar & a metal tray with centre hole. Size of
the cone is 6½” (165.1mm)
Note:
On request 12” (305 mm) Sand Density Cone Apparatus
is also supplied at an extra cost.
Category: Soil
Related products
AZA 0852 SEMI AUTOMATIC CONE PENETROMETER
BS 1377:2
Specification:
Used to determine the moisture content at which clay soils pass from a
plastic to a liquid state. Two Version are available. One the standard one
& the other is semi-automatic with timer where the cone is allowed to free
fall for a period of 5 seconds including one each of 50 gm. & 100 gm.
weight, one penetration cone, preset counter & measuring cup.
AZA 0854 LIQUID LIMIT DEVICE (MOTORISED)
AZA 0855 HIGH SPEED STIRRER
IS 2720 (PART IV)
Specification:
This is for mechanical analysis and also other laboratory
applications for stirring Speed approximately 4000 R.P.M. under
load. A dispersion cup is supported on a rest on the stand of the
stirrer and has a removable baffle. For operation on 230V A.C.
supplied with dispersion cup or baffle cup.
AZA 0857 PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD)
ASTM D 422 AASHTO T 88, BS 1377-2.
Specification:
Particle size analysis of soils:
Hydrometer method
This equipment is used to determine the quantitative
size distribution of very fine particle in soils such as clay
and silt.
The complete set comprises:
! Sedimentation Cylinder, 1000 ml capacity (6
pieces) with rubber bungs.
! Soil Hydrometer, 151H, range 0.995 to 1.038
g/ml with div. 0.001
Glass Tank, dimensions: 600x300x380 mm
! Heater complete with thermostat, circulation unit. 230V Single Phase 50Hz 1000W
! Glass Thermometer, range -10 to 50° C., Sub-div. 0.5° C.
! Beaker, Borosilicate Glass, 250 ml capacity
! Sodium Hexametaphosphate, 1000 g
! High Speed Stirrer, 4000 R.P.M, complete with baffle cup, for dispersing soil
particles in water.
AZA 0859 SAND EQUIVALENT TEST SET
ASTM D 2419, AASHTO T 176
Specification:
Used to determine the relevant proportions of clay-like or Plastic
fines and dust in granular soils & fine aggregate
Consists of:
1. Acrylic graduated cylinder (4 nos.)
2. Rubber stopper for cylinder (4 nos.)
3. Graduated Steel rule 450 mm
4. Funnel 100 mm plastic
5. Aspirator bottle 5 lts plastic with rubber cock
6. Stand for the aspirator bottle with siphon assembly
7. Irrgation tube with stop pinch cock & weighted foot assembly
Optional : Stock solution can be supplied at an extra cost
AZA 0865 HEAVY COMPACTION TEST
AZA 0870 VICKSBERG PENTROMETER (PROVING RING TYPE)
This is fork determining the bearing capacity of sub grades or
for compaction control. It also used for rapidly of soils in
shallow exploration work.
Specification:
Consists of a study handle under. Which is fixed a sensitive
proving ring. An extension piece is fixed to the bottom of the
proving ring and carries a detachable penetration cone at its
tip. Proving ring capacity 100 kg (1kn) and 0.002mm dial
gauge provided indicates the penetration load applied.
An optical viewer is provided to facilitate reading the dial
gauge by the operator. Simplified for single person operation.
A calibration chart is provided for the proving ring. Instrument is
complete in a wooden carrying case.
