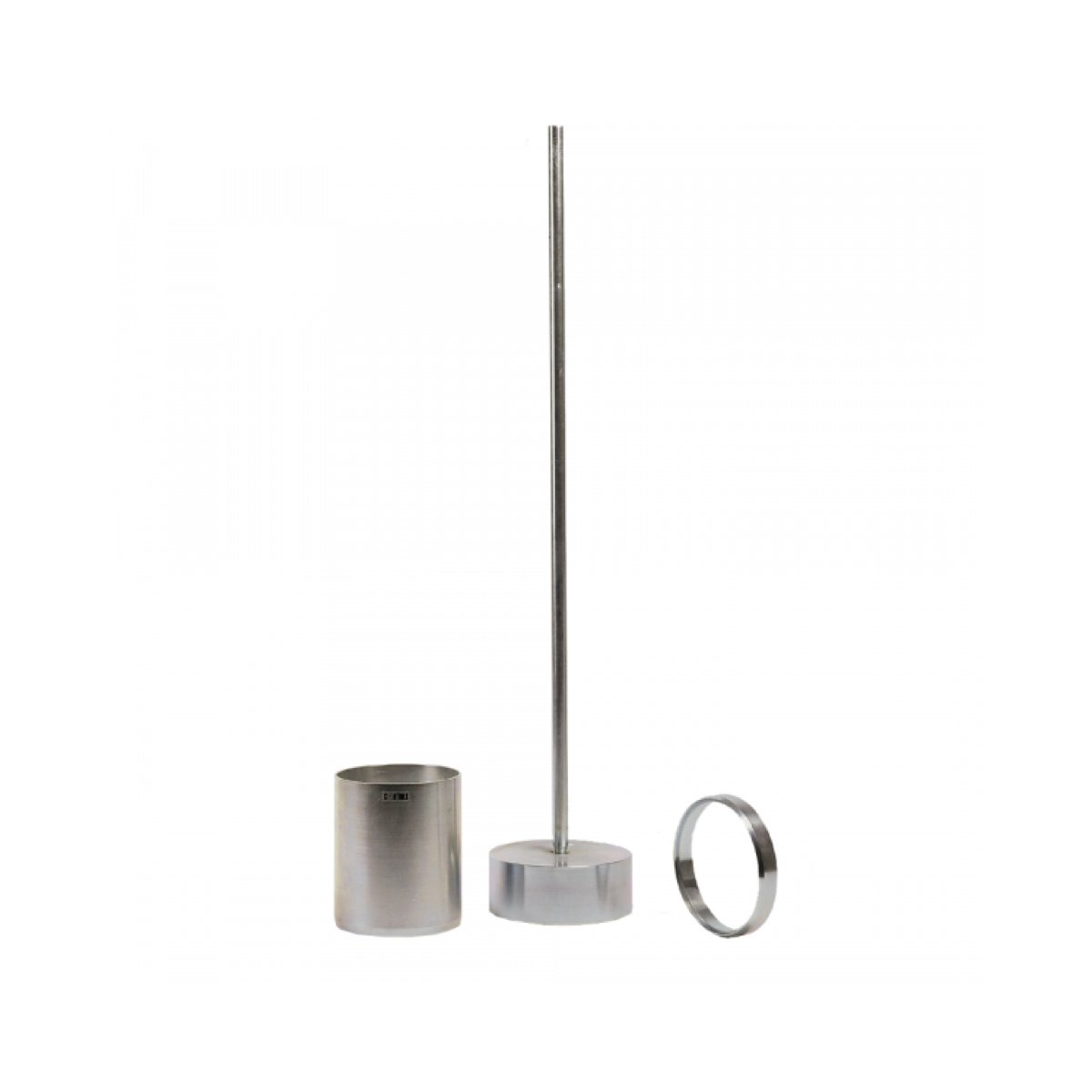

AZA 0882 CORE CUTTER
IS 2720 (PART XXIX) 1966 & BS 1377-9
Specification:
This is used for determination of in situ dry density of natural or compacted fine
grained soil, free from aggregates. A cylindrical cutter is used to extract a sample
of the soil with the help of a dolly and rammer. From the weight, density and the
moisture, and dry density of the soil is ready calculated .
It consists one each of: cylindrical core cutter mode of steel, 127.3mm. Long and
100mm internal diameter. Steel dolly, 25mm high with a lip to enable it to be
located on top of the core cutter, rammer with detachable steel rod.
Spare, Optional Extra and Accessories:
1. Cylindrical core cutter 100mm i.d. x 175mm long
2. Dolly
3. Test form pad of 50.
Category: Soil
