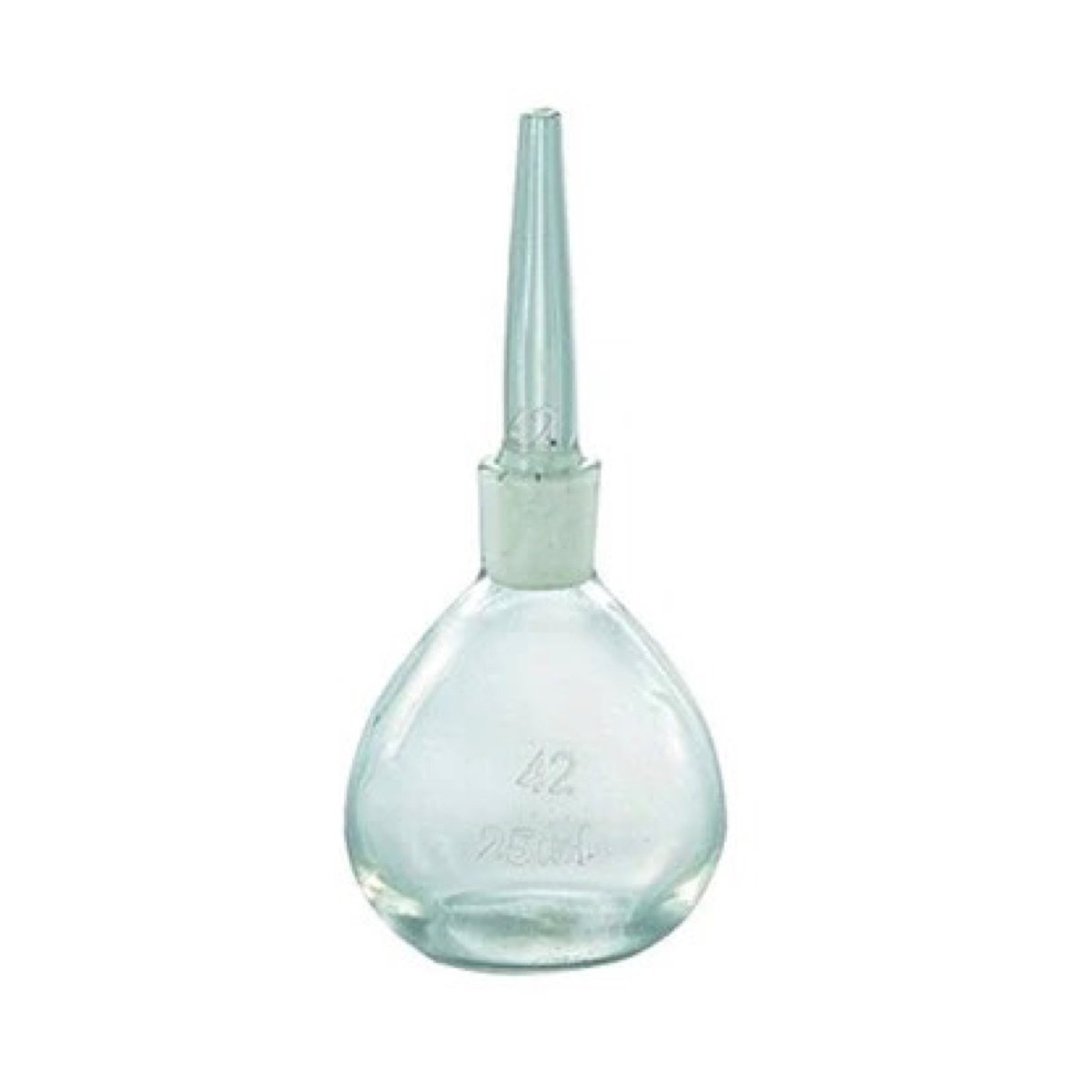

AZA 0884 DENSITY BOTTLE (GAY-LUSSAC TYPE)
BS 1377-2, ASTM D 854
Specification:
For determining the particle density
(Specific Gravity) of sand, fine aggregate & filler.
Capacity 25ml, 50ml, 100ml, 250ml, 500ml & 1000ml.
Category: Soil
Related products
AZA 0859 SAND EQUIVALENT TEST SET
ASTM D 2419, AASHTO T 176
Specification:
Used to determine the relevant proportions of clay-like or Plastic
fines and dust in granular soils & fine aggregate
Consists of:
1. Acrylic graduated cylinder (4 nos.)
2. Rubber stopper for cylinder (4 nos.)
3. Graduated Steel rule 450 mm
4. Funnel 100 mm plastic
5. Aspirator bottle 5 lts plastic with rubber cock
6. Stand for the aspirator bottle with siphon assembly
7. Irrgation tube with stop pinch cock & weighted foot assembly
Optional : Stock solution can be supplied at an extra cost
AZA 0863 STANDARD COMPACTION TEST
AZA 0865 HEAVY COMPACTION TEST
AZA 0868 PROCTOR NEEDLES (SPRING TYPE)
Specification:
The instrument consists of a needle attached to
a spring loaded plunger, the stem of which is
calibrated to read 0 to 40 kg division. Long
stem is graduated at every 12.5mm to read
depth of penetration and for use with needles of
larger areas . The small penetration stem is also
graduation in 12.5mm division and is used
with needles of smaller areas. Needle points
one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and
6.0 sq cm. And one Tommy pin is supplied.
Complete as above in a wooden carrying
case.
AZA 0871 WATER LEVEL INDICATOR
AZA 0871 A Water level indicator 50 m cable length
AZA 0871 B Water level indicator 100 m cable length
AZA 0871 C Water level indicator 150 m cable length
AZA 0871 D Water level indicator 200 m cable length
The water level indicators (electric contact meters) are portable, easy-to-use and reliable
instruments for measuring water level and total depth in bore holes, wells, observation
pipes, reservoirs, as well as control of pumping tests.
As soon as the measuring probe electrode touches the water surface, the signal indicator
on the instrument lights up with an audible alarm. The water level can be read on the
measuring tape in meters (m) and centimeters (cm).
Technical Specifications:
Measuring Range 50m, 100m, 150m, 200m
Accuracy 1 cm for a Measuring Range of 100m
Reproductibility 0.5 cm
Pressure Tightness 10 Bar (up to 50 Var Possible)
Probe Chromium-plated Brass
Standart Version 14 mm Dia. 140 mm Long
Special Version 10 mm Dia. 320 mm Long
Cable Polyethylene with 2 steel cores (Anti-corrosive) with Polyamide-coated steel tape,
Graduation in millimeters (mm), in centimetres (cm) and numbering in decimetres
In black color, the meters (m) figures are red colour on yellow-green base
Cable Drum Hard Rubber, Plastic Material and Temperature Resistant
Power Supply 3v DC.2 Baby-cells each 1.5v
AZA 0872 DYNAMIC CONE PENETROMETER
A simple and robust instrument for rapid in-situ measurement of the structural properties of road pavements
! Provides fast and efficient method of obtaining information
! For continuous measurements up to a depth of 800 mm and 1,200 mm with the extension rod.
! Portable and can be accommodated in a carrying case
for pavement design. Agreement is generally good over most of the range but differences are apparent at low values of
CBR, especially for fine grained materials.
It incorporates a 8 Kg weight dropping through a height of 575 mm and a 60 deg. cone having a diameter of 20 mm.
It is supplied complete with assembly tools and weighs 20 Kg approx.
The DCP needs three operators, one to hold the instrument, other to raise and drop the weight and a technician to
record the results. The instrument is held vertically and the weight carefully raised to the handle limit and then allowed
to fall onto the anvil.
The equipment consist of the following replaceable parts
AZA 0872A Top and Bottom Rod
AZA 0872B Handle
AZA 0872C Hammer
AZA 0872D 1m Scale
AZA 0872E 60 deg. Cone
AZA 0872F Anvil
AZA 0873 SPEEDY MOISTURE ZI 3027 METER (D2 LARGE)
ASTM D 4944 AASHTO T 217
Specification:
The unit consists of a pressure vessel with clamp for sealing cap,
capacity is 20 gms. Rubber sealing gasket, pressure gauge
calibrated in percentage moisture content 0-25% x 0.25% on the
wet weight basis, an electronic balance for weighing sample, a
scoop for measuring carbide reagent, a bottle of reagent, one
cleaning brush and a set of 4 steel balls for thorough mixing .
Complete in highly polished wooden carrying case with handle.
