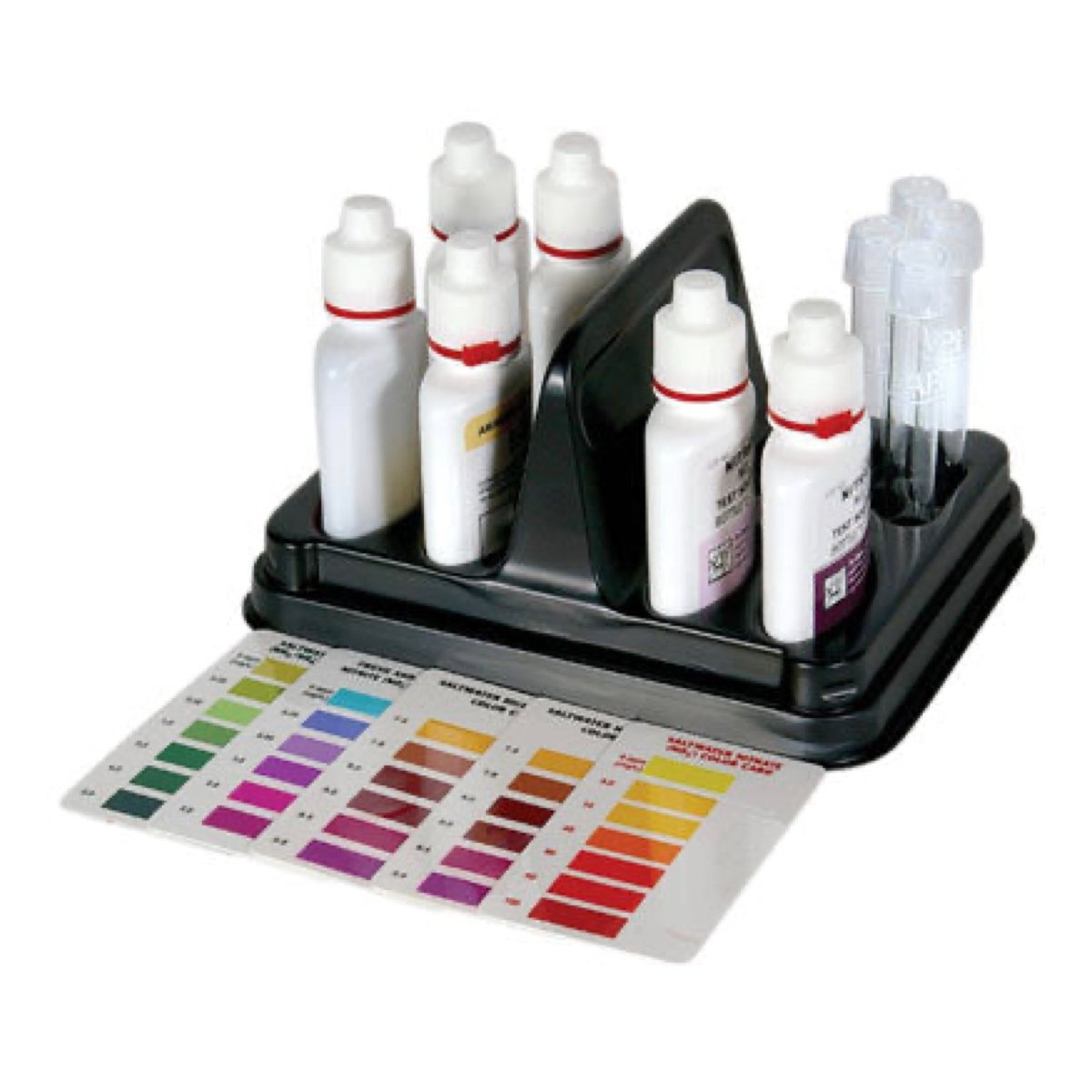

AZA 0888 WATER TESTING KIT
Acidity Testing Kit
B. Chloride Test Kit
C. Hardness Test Kit
D. Sulphate Test Kit
E. Alkalinity Test Kit
Category: Soil
Related products
AZA 0856 GRAIN SIZE ANALYSIS (PIPETTE METHOD)
IS 2720 (PART IV) AND BS 1377:2.
Specification:
This is for the determination of the sub sieve particle distribution in a
soil sample by mechanical analysis. An analysis of this kind
expresses quantity the proportions by weight of the various sizes of
particles present in the soil. It is recommended as a standard
procedure to use dispersion agent to avoid flocculation.
The apparatus consists of a sliding panel which moves up and
down by means of a screw allowing Anderson pipette fixed to it to
be raised or lowered vertically. A sedimentation tube is held by a
laboratory clamp provided on the stand below the pipette. The
depth of immersion is measured by a scale graduated in mm at the
side of the sliding panel. Supplied complete with Anderson pipette
10ml. At the side capacity made from glass, and a sedimentation
tube also of glass of 500ml capacity and 50nos. Test form pads.
Accessories & Spares: (on extra cost)
1) Sedimentation Pipette (Anderson pipette) 25ml.
2) Sedimentation tube 100ml
3) Sedimentation pipette 10ml
4) Sedimentation tube 500ml
5) Test forms pad of 50
AZA 0857 PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD)
ASTM D 422 AASHTO T 88, BS 1377-2.
Specification:
Particle size analysis of soils:
Hydrometer method
This equipment is used to determine the quantitative
size distribution of very fine particle in soils such as clay
and silt.
The complete set comprises:
! Sedimentation Cylinder, 1000 ml capacity (6
pieces) with rubber bungs.
! Soil Hydrometer, 151H, range 0.995 to 1.038
g/ml with div. 0.001
Glass Tank, dimensions: 600x300x380 mm
! Heater complete with thermostat, circulation unit. 230V Single Phase 50Hz 1000W
! Glass Thermometer, range -10 to 50° C., Sub-div. 0.5° C.
! Beaker, Borosilicate Glass, 250 ml capacity
! Sodium Hexametaphosphate, 1000 g
! High Speed Stirrer, 4000 R.P.M, complete with baffle cup, for dispersing soil
particles in water.
AZA 0861 MOTORISED SAND EQUIVALENT SHAKER
AZA 0863 STANDARD COMPACTION TEST
AZA 0867 AUTOMATIC SOIL COMPACTOR
BS 1377:4
Automatic Soil Compactor BS EN Rammer the
automatic soil compactors is designed to provide a
fully automatic uniform compaction of standard /
modified and CBR specimens assuring conformity with
the reference standard.
Compactor is equipped with programmable digital
counter which allows machine to stop at the preset
numbers of blows. The height and weight of the rammer
is adjustable to suit test requirements. The drop weight
is adjustable to 300 mm drop height and is also
adjustable to 450 mm drop height. The rammer is
circular faced with a 50 mm diameter and is adjustable
to 2.5 kg. or 4.5 kg.
An automatic blow pattern ensures effective
compaction for each layer of soil and the rammer
travels across the mould. The table rotates the mould in
equal steps and the number of blows per layer can be
set at the beginning of the test by the digital counter.
User defined blow number and in-out distribution is
also available.
A standard proctor / CBR switch, emergency stop and
start push buttons are located beside the blow counter.
220 V, 50-60 Hz, 1 Ph
AZA 0868 PROCTOR NEEDLES (SPRING TYPE)
Specification:
The instrument consists of a needle attached to
a spring loaded plunger, the stem of which is
calibrated to read 0 to 40 kg division. Long
stem is graduated at every 12.5mm to read
depth of penetration and for use with needles of
larger areas . The small penetration stem is also
graduation in 12.5mm division and is used
with needles of smaller areas. Needle points
one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and
6.0 sq cm. And one Tommy pin is supplied.
Complete as above in a wooden carrying
case.
AZA 0870 VICKSBERG PENTROMETER (PROVING RING TYPE)
This is fork determining the bearing capacity of sub grades or
for compaction control. It also used for rapidly of soils in
shallow exploration work.
Specification:
Consists of a study handle under. Which is fixed a sensitive
proving ring. An extension piece is fixed to the bottom of the
proving ring and carries a detachable penetration cone at its
tip. Proving ring capacity 100 kg (1kn) and 0.002mm dial
gauge provided indicates the penetration load applied.
An optical viewer is provided to facilitate reading the dial
gauge by the operator. Simplified for single person operation.
A calibration chart is provided for the proving ring. Instrument is
complete in a wooden carrying case.
AZA 0872 DYNAMIC CONE PENETROMETER
A simple and robust instrument for rapid in-situ measurement of the structural properties of road pavements
! Provides fast and efficient method of obtaining information
! For continuous measurements up to a depth of 800 mm and 1,200 mm with the extension rod.
! Portable and can be accommodated in a carrying case
for pavement design. Agreement is generally good over most of the range but differences are apparent at low values of
CBR, especially for fine grained materials.
It incorporates a 8 Kg weight dropping through a height of 575 mm and a 60 deg. cone having a diameter of 20 mm.
It is supplied complete with assembly tools and weighs 20 Kg approx.
The DCP needs three operators, one to hold the instrument, other to raise and drop the weight and a technician to
record the results. The instrument is held vertically and the weight carefully raised to the handle limit and then allowed
to fall onto the anvil.
The equipment consist of the following replaceable parts
AZA 0872A Top and Bottom Rod
AZA 0872B Handle
AZA 0872C Hammer
AZA 0872D 1m Scale
AZA 0872E 60 deg. Cone
AZA 0872F Anvil
