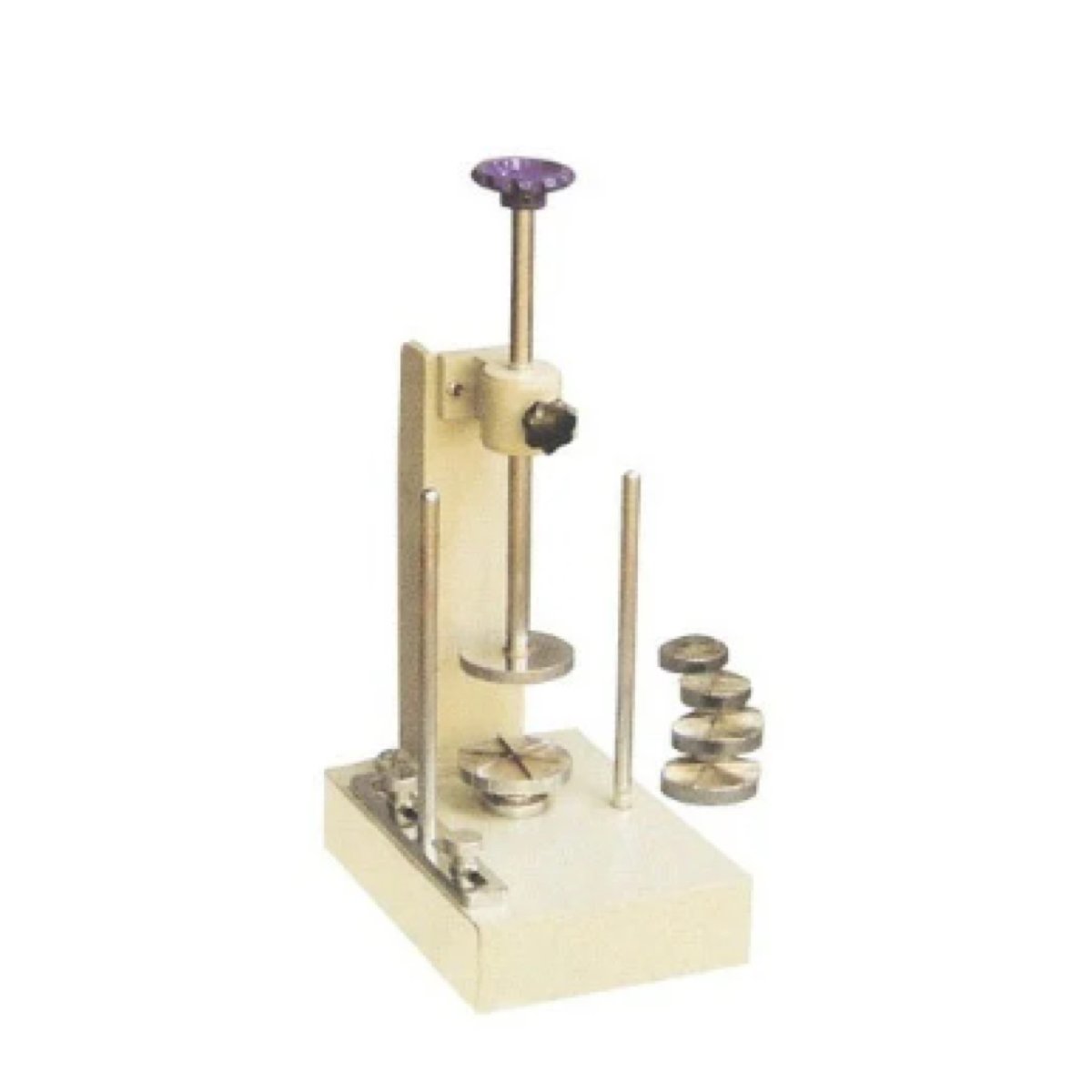

AZA 0893 SOIL TRIMMER (HAND OPERATED)
For trimming various diameter specimen for triaxial and unconfined compression tests.
Specification:
The lower specimen grip is mounted on a disc which rotates freely. The soil sample is mounted on the lower specimen grip and the upper grip is firmly seated on top of the specimen. The vertical guide can be adjusted to control the depth of cut. While trimming the lower disc is rotated by hand. Supplied complete with a wire saw. Trimming knife, mounted on a support, can be adjusted horizontally as well as vertically to permit trimming of the specimen to the exact size of the ring. A guide supplied prevents over cutting. Complete with 38mm, 50mm, 75mm and 100mm dia specimen rings.
Category: Soil
Related products
AZA 0852 SEMI AUTOMATIC CONE PENETROMETER
AZA 0853 LIQUID LIMIT DEVICE WITH COUNTER
AZA 0857 PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD)
- Particle size distribution using hydrometer sedimentation
- Suitable for clays and silts below 75 microns
- Conforms to IS 2720 Part IV & ASTM D422
- Includes hydrometer, sedimentation cylinder, thermometer
- Accurate readings of soil particle settlement over time
- Ideal for soil mechanics, civil and geotechnical labs
AZA 0869 POCKET PENTROMETER
ASTM D 1558 D 2573
This instrument is used to estimate approximate unconfined
compressive strength and the estimation to shear strength of soil
Cohesive soils can also be classified in terms of consistency
using this Penetrometer. This is a handy and convenient
instrument.
Specification:
It consists of a light weight barrel assembly with a polished and
ground steel loading piston plunger. A direct reading scale is
engraved on the piston barrel and indicates load in kg. / sq.
cm. A maximum load indicator ring is provided on the
penetration plunger. The calibrated spring is heat treated and
plated for rust resistance. The barrel diameter is 20mm and the
length 150mm. Supplied with carrying case
AZA 0870 VICKSBERG PENTROMETER (PROVING RING TYPE)
This is fork determining the bearing capacity of sub grades or
for compaction control. It also used for rapidly of soils in
shallow exploration work.
Specification:
Consists of a study handle under. Which is fixed a sensitive
proving ring. An extension piece is fixed to the bottom of the
proving ring and carries a detachable penetration cone at its
tip. Proving ring capacity 100 kg (1kn) and 0.002mm dial
gauge provided indicates the penetration load applied.
An optical viewer is provided to facilitate reading the dial
gauge by the operator. Simplified for single person operation.
A calibration chart is provided for the proving ring. Instrument is
complete in a wooden carrying case.
AZA 0871 WATER LEVEL INDICATOR
- Water Level Indicator: Essential instrument for accurate measurement of groundwater levels.
- Versatile Use: Ideal for monitoring water levels in boreholes, standpipes, wells, and observation tubes.
- Precise Detection: Features a sensitive probe that provides clear audible and visual indication upon contact with water.
- Graduated Cable: High-accuracy, durable cable with clear markings for precise depth readings.
- Portable & Robust: Designed for demanding field monitoring in environmental, hydrological, and geotechnical applications.
- Azalab Quality: Reliable and easy-to-use equipment for consistent groundwater monitoring.
AZA 0873 SPEEDY MOISTURE ZI 3027 METER (D2 LARGE)
- Speedy Moisture Meter: Utilizes the calcium carbide method for swift and precise moisture content determination.
- D2 Large Capacity: Designed for larger sample sizes, enhancing representativeness and accuracy for broader material types.
- Field Ready: Ideal for on-site field testing of soils, aggregates, sand, and other granular materials.
- Portable & Self-Contained: Operates without external power, making it perfect for remote locations.
- Rapid Analysis: Provides immediate results for efficient decision-making and quality control.
- Azalab Quality: Robust ZI 3027 frame ensures durability and reliable performance in demanding environments.
AZA 0875 INFRARED MOISTURE METER
- Infrared Heating: Utilizes advanced infrared technology for rapid and uniform sample drying.
- Precise Measurement: Delivers highly accurate moisture content results in a fraction of the time.
- Versatile Application: Ideal for various materials including soils, aggregates, chemicals, food products, and more.
- User-Friendly: Features intuitive controls and a clear display for straightforward operation.
- Rapid Analysis: Significantly speeds up testing processes compared to conventional oven drying.
- Azalab Quality: Reliable and efficient instrument for critical quality control and material testing.
