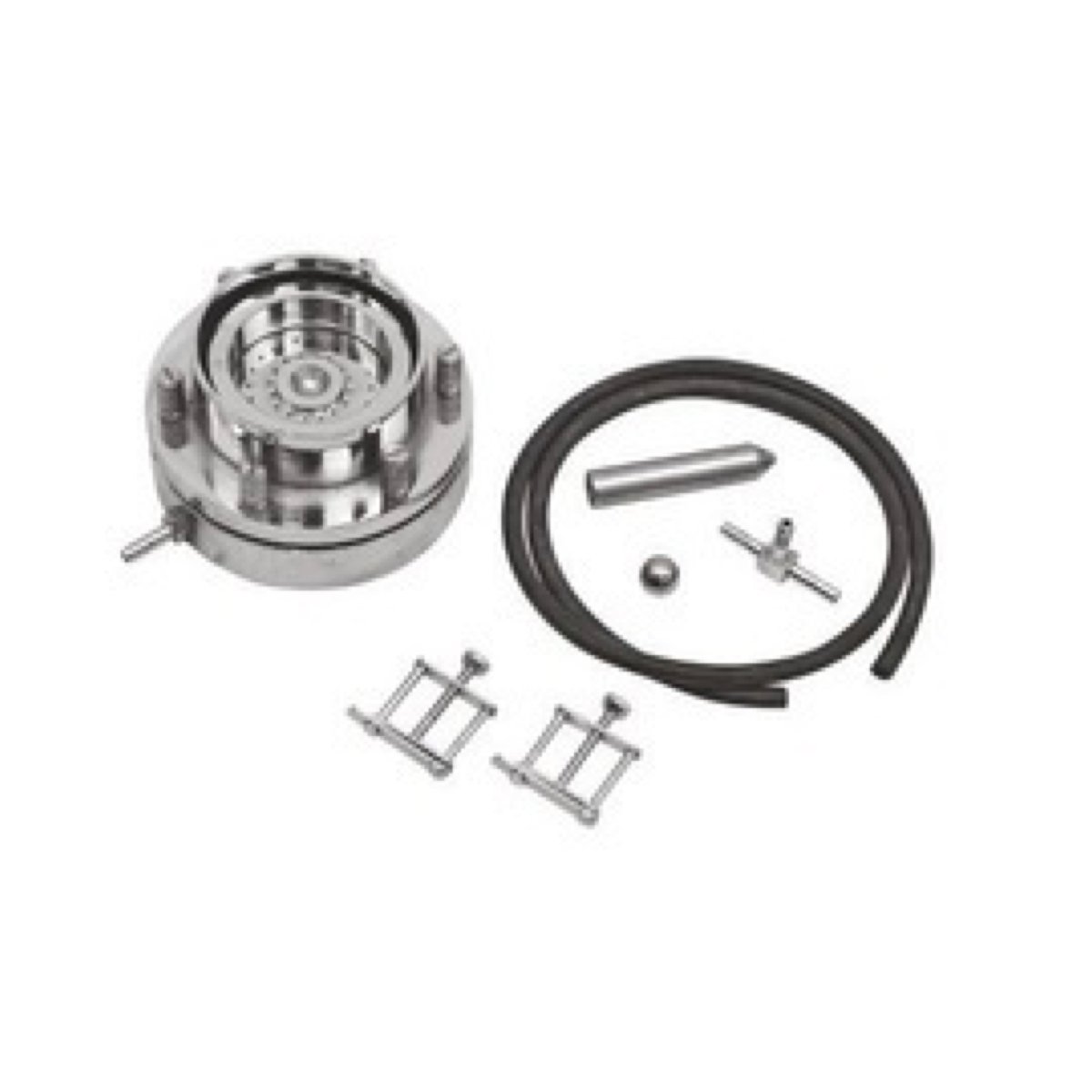

AZA 0897 CONSOLIDATION CELLS (FLOATING)

Water trough : Floating ring type of Consolidometer (Odeometer) cell assembly for 60mm dia x 20mm thick specimens complete with floating ring with two guide rings, pair of porous stones, pressure pad and cutting collar.
Set of weights to give a pressure of 10kg/cm. sq. on 60mm dia specimens. Floating ring type of Consolidometer (Odeometer) cell assembly for 50mm dia x 20mm thick specimens complete with accessories as above.
Set of weights to give a pressure of 10kg/cm2. On
70mm dia specimen.
Floating ring type of Consolidometer (Odeometer) cell assembly for 100mm dia x 25mm thick specimens complete with accessories as above.
Set of weights to give a pressure of 10kg/cm2. On 100 mm dia specimen.
Additional set of weights for loading up to 20kg/ cm2.
Set of weights to give a pressure of 10kg / cm2. On a 60mm dia specimen comprising 10 off 1.0kg/cm2. Set of weights to give a pressure of 10kg /cm2. On a 50mm dia specimen comprising 10 off 1.0kg/cm2.
Set of weights to give a pressure of 10kg /cm2. On a 70mm dia specimen comprising 10 off 1.0kg/cm2.
Set of weights to give a pressure of 10kg /cm2. On a 100mm dia specimen comprising 10 off 1.0kg/cm2.
Pair of top & bottom porous stones for 50mm dia cell
Pair of top & bottom porous stones for 60mm dia cell
Pair of top & bottom porous stones for 70mm dia cell
Pair of top & bottom porous stones for 100mm dia cell
