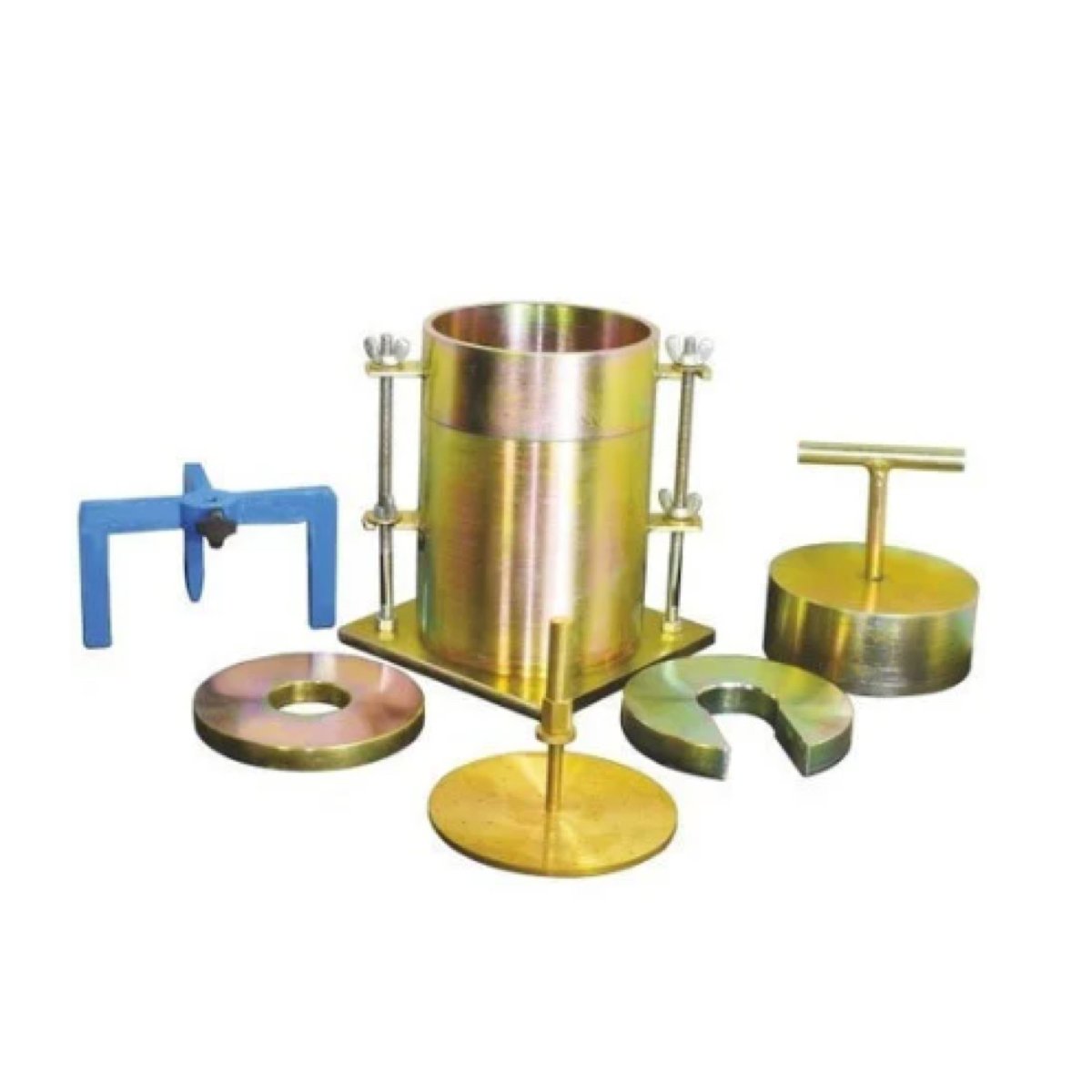

AZA 0910 CALIFORNIA BEARING RATIO APPARATUS(ASTM VERSION MOULD)
ASTM D 1883 AASHTO T 193
AZA 0910A CBR mould body complete with collar & perforated base plate. Plated Steel 6 In.(152.4mm) Dia x 7 In. (177.8mm) Height
AZA 0910B Spacer Disc with T handle 515/16 In. Dia(150.8mm) x 2.416 In. (61.4mm) height
AZA 0910C Annular surcharge weight 2.27 kg
AZA 0910D Slotted surcharge weight 2.27 kg
AZA 0910E Filter paper 150 mm dia No 1 Fisherman (Pack of 100 circles)
Category: Soil
Related products
AZA 0860 METHYLENE BLUE TEST SET
EN 933-9; NF P94-068; UNE 83 180; UNI 8520-15
The test set is used for determining the methylene blue value of
0/2 mm/ fraction in fine aggregates.
AZA 0860A Methylene Blue Test Set, 210-240 V 50-60 HZ
AZA 0860B 1 Filter Paper For Methylene Blue Test
Ø:125 mm, 100 Pcs./Pack
Set consists of
! High speed agitator motor, 400/600 r.p.m.
! Stirring propeller, ø 70 mm 4 flanks
! Glass burette, 50 ml x 0.1 ml
! Burette holder and stand
! Filter paper, 1 pack (100 pcs.), 125 mm dia, 95 g/m2,
0.20 mm thickness
! Glass rod, ø 8x300 mm
! Plastic beaker, 1000 ml
! Methylene blue, 100 g
! Kaolinite, 500 g
AZA 0862 PLUMMET BALANCE
Conventionally particle size distribution analysis is carried out using pipette and
hydrometer methods. Whereas in hydrometer method it is possible to determine
particle sizes in the range 75microns, the method involves computation and it is
time consuming. The pipette method can be used for determining only the
percentage of specific sizes less than 0.02, 0.006 and 0.002mm as a percentage
of total soil sample.
The plummet balance method to determine sub sieve particle size for the entire
range is very rapid and only manipulation of height of the balance, so that plummet
sinks to the right depth is required.
The percentage of soil in suspension is directly indicated by a pointer over a
graduated scale.
A vertical rod is mounted on a sturdy base having leveling screws.
A pointer with steel pivots turns is jewel bearing an moves over a graduated scale.
Scale graduations are market 0-100% x 2%
To the other end of the pointer a plummet is hanged. Rack and pinion arrangement is provided on the vertical rod for
adjusting the height. Supplied with a chart showing relationship between “K” and temperature of suspension of
soils of varying specific gravity from 2.4 to 2.8 to help in solving stroke's equation. Supplied complete with one
Perspex plummet one measuring jar and one rider weight for zero adjustment and rider weight for adjusting the
pointer to 100%.
AZA 0865 HEAVY COMPACTION TEST
AZA 0866 HEAVY COMPACTION TEST
IS 2720 (PART-VIII)
Specification:
Instrument consists one each of compaction
mould steel 150 mm I.D. x 127.3mm height
volume 2250cc. Complete with collar and
base plate. Compaction Rammer is 4.89
kgs. in weight x 450 mm controlled fall.
Note : Instead of steel moulds, gunmetal
mould are also available.
AZA 0867 AUTOMATIC SOIL COMPACTOR
BS 1377:4
Automatic Soil Compactor BS EN Rammer the
automatic soil compactors is designed to provide a
fully automatic uniform compaction of standard /
modified and CBR specimens assuring conformity with
the reference standard.
Compactor is equipped with programmable digital
counter which allows machine to stop at the preset
numbers of blows. The height and weight of the rammer
is adjustable to suit test requirements. The drop weight
is adjustable to 300 mm drop height and is also
adjustable to 450 mm drop height. The rammer is
circular faced with a 50 mm diameter and is adjustable
to 2.5 kg. or 4.5 kg.
An automatic blow pattern ensures effective
compaction for each layer of soil and the rammer
travels across the mould. The table rotates the mould in
equal steps and the number of blows per layer can be
set at the beginning of the test by the digital counter.
User defined blow number and in-out distribution is
also available.
A standard proctor / CBR switch, emergency stop and
start push buttons are located beside the blow counter.
220 V, 50-60 Hz, 1 Ph
AZA 0868 PROCTOR NEEDLES (SPRING TYPE)
Specification:
The instrument consists of a needle attached to
a spring loaded plunger, the stem of which is
calibrated to read 0 to 40 kg division. Long
stem is graduated at every 12.5mm to read
depth of penetration and for use with needles of
larger areas . The small penetration stem is also
graduation in 12.5mm division and is used
with needles of smaller areas. Needle points
one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and
6.0 sq cm. And one Tommy pin is supplied.
Complete as above in a wooden carrying
case.
AZA 0873 SPEEDY MOISTURE ZI 3027 METER (D2 LARGE)
ASTM D 4944 AASHTO T 217
Specification:
The unit consists of a pressure vessel with clamp for sealing cap,
capacity is 20 gms. Rubber sealing gasket, pressure gauge
calibrated in percentage moisture content 0-25% x 0.25% on the
wet weight basis, an electronic balance for weighing sample, a
scoop for measuring carbide reagent, a bottle of reagent, one
cleaning brush and a set of 4 steel balls for thorough mixing .
Complete in highly polished wooden carrying case with handle.
AZA 0874 RAPID MOISTURE METER
The unit consists of a pressure vessel with clamp for
sealing cap, capacity is 6 gms. Rubber sealing gasket,
pressure gauge calibrated in percentage moisture
content on the wet weight basis, a counter poised
balance for weighing sample, a scoop for measuring
carbide reagent, a bottle of reagent, one cleaning brush
and a set of 4 steel balls for thorough mixing . Complete
in highly polished wooden carrying case with handle.
AZA 0874A : Pressure gauge calibrated
0-50% x 0.50%
AZA 0874B : Pressure gauge calibrated
0-25% x 0.25%
Spares:
Carbide reagent, in bottles of 500 gms. each available
on extra cost
