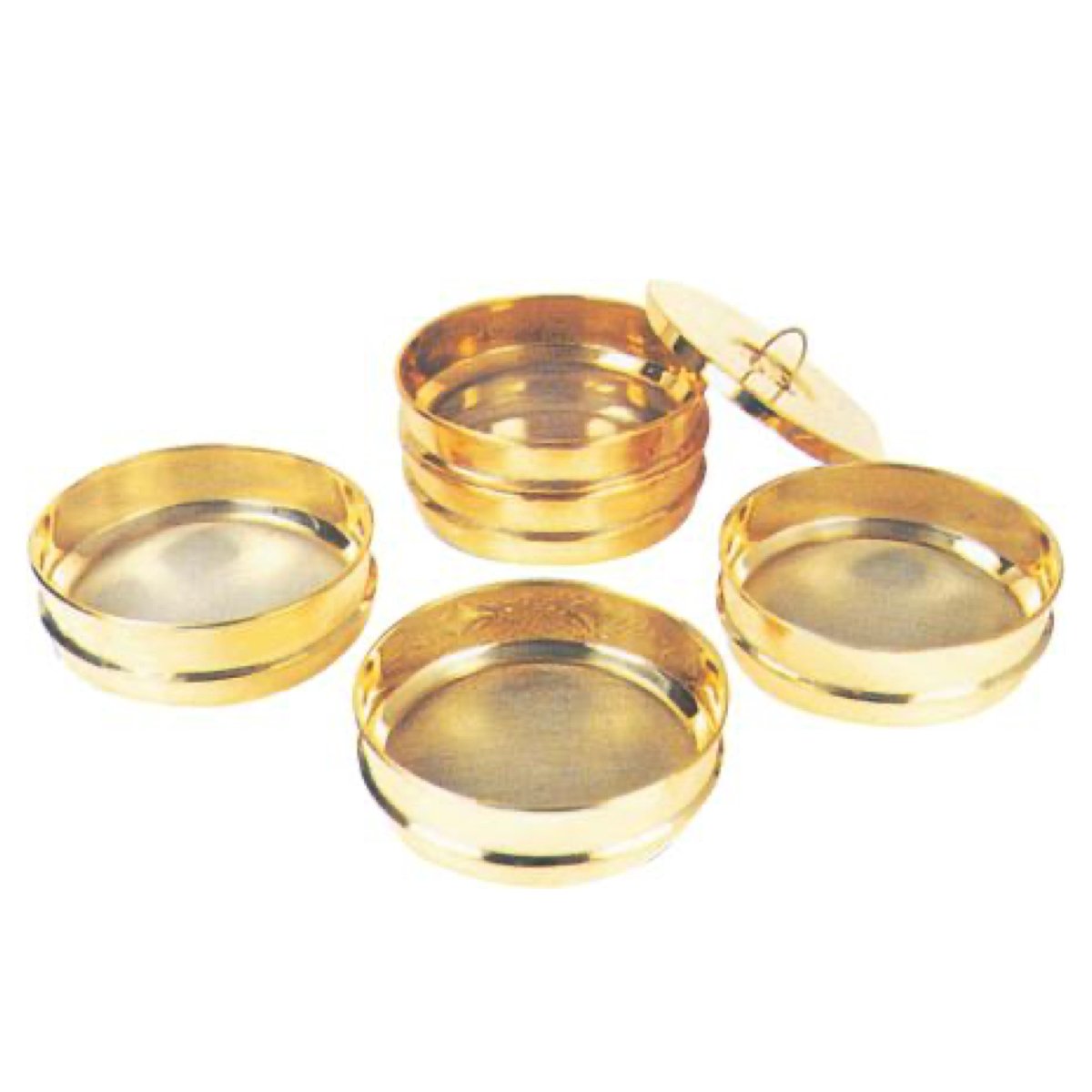

AZA 0924 BRASS FRAME SIEVES 100,200, 300 & 450 MM DIA.
(BS 410) (IS 460 part 1.1985) ASTM E 11 micron (Aperture)
– 4.75 micron 4 4750
4 4.00 micron 5 4000
5 3.35 micron 6 3350
6 2.80 micron 7 2800
7 2.36 micron 8 2400
8 2.00 mm 10 2000
10 1.70 mm 12 1680
12 1.40 mm 14 1400
14 1.18 mm 16 1200
16 1.00 mm 18 1000
18 850 micron 20 850
22 710 micron 25 710
25 600 micron 30 600
30 500 micron 35 500
36 425 micron 40 425
44 355 micron 45 355
52 300 micron 50 300
60 250 micron 60 250
72 212 micron 70 210
85 180 micron 80 180
100 150 micron 100 150
120 125 micron 120 125
150 106 micron 140 106
170 90 micron 170 90
200 75 micron 200 75
240 63 micron 230 63
300 53 micron 270 53
350 45 micron 325 45
400 38 micron 400 38
500 25 micron – 25
Category: Soil
Related products
AZA 0853 LIQUID LIMIT DEVICE WITH COUNTER
IS 2720 (PART V), BS 1377-2 , ASTM D 4318
Specification:
Casagrande method in mechanical form is known as liquid limit method and has been in use for soil mechanics for a
number of decades. The liquid limit data of soils is useful to correlate mechanical properties of soil, such as
compressibility and lower shear strength. Liquid limit is the water content at which soil passes from zero strength to an
infinite strength, hence the true value of liquid limit cannot be determined.
For determination purpose liquid limit is that water content at which a part
of soil, cut by a groove of standard dimensions, will flow together for a
distance of 1.25cm under an impact of 25 blows in a standard liquid limit
apparatus. The soil at the water content has some strength which is about
0.17N/cm. sq. (17gms/sq.cm.) . At this water content soil just passes
from liquid state to plastic state.
It consists on a brass cup held on an adjustable bracket.
The cup can be adjusted for a fall of 1 cm and can be raised an dropped
on a rubber base of standard hardness by cam action. Complete with one
Casagrande grooving tool, one ASTM grooving tool and a height gauge
block. A counter to register the number of blows.
AZA 0854 LIQUID LIMIT DEVICE (MOTORISED)
AZA 0859 SAND EQUIVALENT TEST SET
ASTM D 2419, AASHTO T 176
Specification:
Used to determine the relevant proportions of clay-like or Plastic
fines and dust in granular soils & fine aggregate
Consists of:
1. Acrylic graduated cylinder (4 nos.)
2. Rubber stopper for cylinder (4 nos.)
3. Graduated Steel rule 450 mm
4. Funnel 100 mm plastic
5. Aspirator bottle 5 lts plastic with rubber cock
6. Stand for the aspirator bottle with siphon assembly
7. Irrgation tube with stop pinch cock & weighted foot assembly
Optional : Stock solution can be supplied at an extra cost
AZA 0860 METHYLENE BLUE TEST SET
EN 933-9; NF P94-068; UNE 83 180; UNI 8520-15
The test set is used for determining the methylene blue value of
0/2 mm/ fraction in fine aggregates.
AZA 0860A Methylene Blue Test Set, 210-240 V 50-60 HZ
AZA 0860B 1 Filter Paper For Methylene Blue Test
Ø:125 mm, 100 Pcs./Pack
Set consists of
! High speed agitator motor, 400/600 r.p.m.
! Stirring propeller, ø 70 mm 4 flanks
! Glass burette, 50 ml x 0.1 ml
! Burette holder and stand
! Filter paper, 1 pack (100 pcs.), 125 mm dia, 95 g/m2,
0.20 mm thickness
! Glass rod, ø 8x300 mm
! Plastic beaker, 1000 ml
! Methylene blue, 100 g
! Kaolinite, 500 g
AZA 0861 MOTORISED SAND EQUIVALENT SHAKER
AZA 0868 PROCTOR NEEDLES (SPRING TYPE)
Specification:
The instrument consists of a needle attached to
a spring loaded plunger, the stem of which is
calibrated to read 0 to 40 kg division. Long
stem is graduated at every 12.5mm to read
depth of penetration and for use with needles of
larger areas . The small penetration stem is also
graduation in 12.5mm division and is used
with needles of smaller areas. Needle points
one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and
6.0 sq cm. And one Tommy pin is supplied.
Complete as above in a wooden carrying
case.
AZA 0871 WATER LEVEL INDICATOR
AZA 0871 A Water level indicator 50 m cable length
AZA 0871 B Water level indicator 100 m cable length
AZA 0871 C Water level indicator 150 m cable length
AZA 0871 D Water level indicator 200 m cable length
The water level indicators (electric contact meters) are portable, easy-to-use and reliable
instruments for measuring water level and total depth in bore holes, wells, observation
pipes, reservoirs, as well as control of pumping tests.
As soon as the measuring probe electrode touches the water surface, the signal indicator
on the instrument lights up with an audible alarm. The water level can be read on the
measuring tape in meters (m) and centimeters (cm).
Technical Specifications:
Measuring Range 50m, 100m, 150m, 200m
Accuracy 1 cm for a Measuring Range of 100m
Reproductibility 0.5 cm
Pressure Tightness 10 Bar (up to 50 Var Possible)
Probe Chromium-plated Brass
Standart Version 14 mm Dia. 140 mm Long
Special Version 10 mm Dia. 320 mm Long
Cable Polyethylene with 2 steel cores (Anti-corrosive) with Polyamide-coated steel tape,
Graduation in millimeters (mm), in centimetres (cm) and numbering in decimetres
In black color, the meters (m) figures are red colour on yellow-green base
Cable Drum Hard Rubber, Plastic Material and Temperature Resistant
Power Supply 3v DC.2 Baby-cells each 1.5v
AZA 0873 SPEEDY MOISTURE ZI 3027 METER (D2 LARGE)
ASTM D 4944 AASHTO T 217
Specification:
The unit consists of a pressure vessel with clamp for sealing cap,
capacity is 20 gms. Rubber sealing gasket, pressure gauge
calibrated in percentage moisture content 0-25% x 0.25% on the
wet weight basis, an electronic balance for weighing sample, a
scoop for measuring carbide reagent, a bottle of reagent, one
cleaning brush and a set of 4 steel balls for thorough mixing .
Complete in highly polished wooden carrying case with handle.
