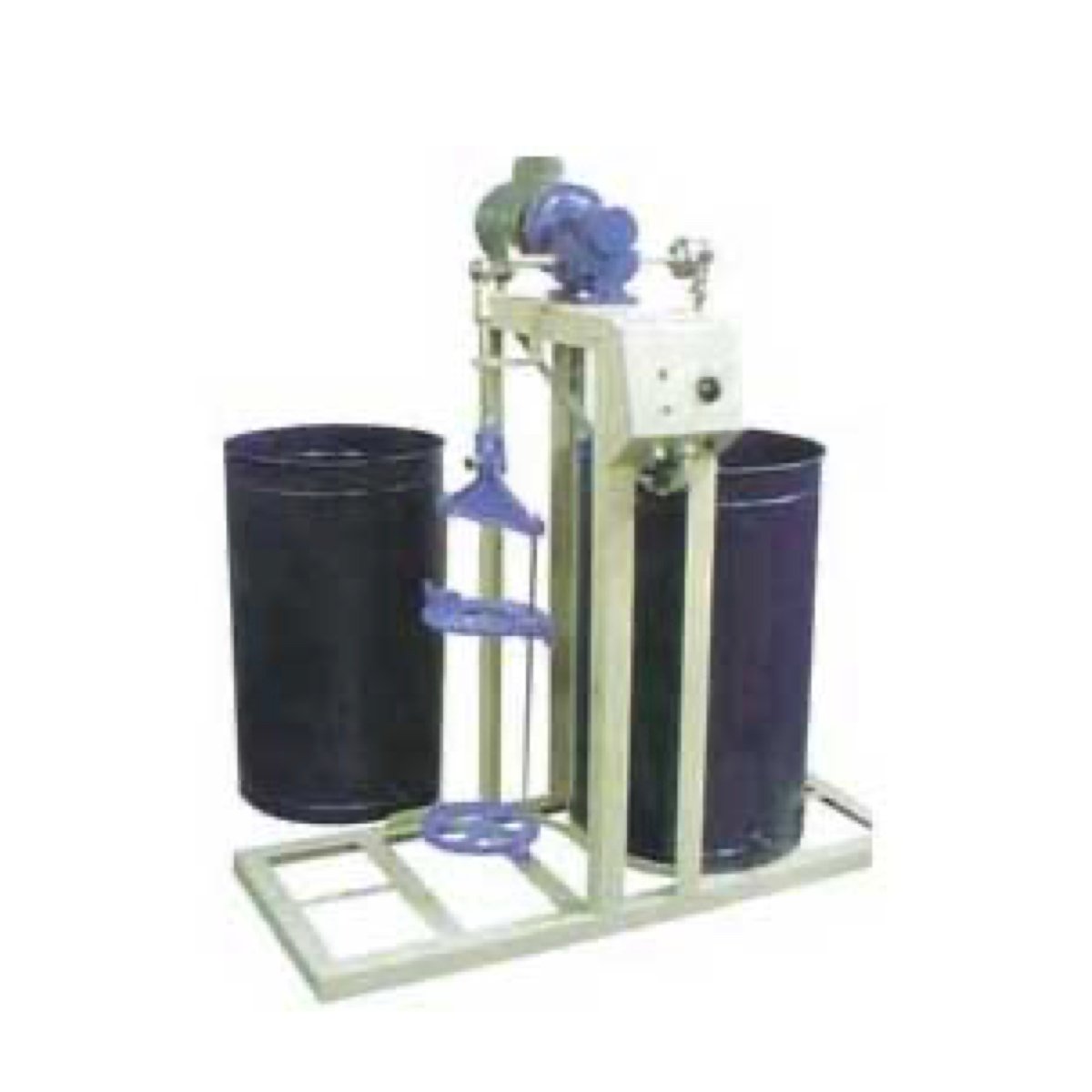

AZA 0927 WET SIEVE SHAKER
This is yodar type, motor driven sieve shaker for carrying out wet sieve analysis of materials.
Specification:
Consists of a water reservoir and a holder for sieves, which can take up to 7 sieves of 150mm or 200mm diameter. Shaker is driven by a ¼ H.P. motor through a belt drive. Shaker mechanism moves the sieves up and down in the reservoir. The reservoir has a water out-let for draining out the used water. Suitable for operation 230 V A.C. Single Phase
Category: Soil
Related products
AZA 0850 LINEAR SHRINKAGE MOULD
AZA 0854 LIQUID LIMIT DEVICE (MOTORISED)
AZA 0857 PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD)
ASTM D 422 AASHTO T 88, BS 1377-2.
Specification:
Particle size analysis of soils:
Hydrometer method
This equipment is used to determine the quantitative
size distribution of very fine particle in soils such as clay
and silt.
The complete set comprises:
! Sedimentation Cylinder, 1000 ml capacity (6
pieces) with rubber bungs.
! Soil Hydrometer, 151H, range 0.995 to 1.038
g/ml with div. 0.001
Glass Tank, dimensions: 600x300x380 mm
! Heater complete with thermostat, circulation unit. 230V Single Phase 50Hz 1000W
! Glass Thermometer, range -10 to 50° C., Sub-div. 0.5° C.
! Beaker, Borosilicate Glass, 250 ml capacity
! Sodium Hexametaphosphate, 1000 g
! High Speed Stirrer, 4000 R.P.M, complete with baffle cup, for dispersing soil
particles in water.
AZA 0860 METHYLENE BLUE TEST SET
EN 933-9; NF P94-068; UNE 83 180; UNI 8520-15
The test set is used for determining the methylene blue value of
0/2 mm/ fraction in fine aggregates.
AZA 0860A Methylene Blue Test Set, 210-240 V 50-60 HZ
AZA 0860B 1 Filter Paper For Methylene Blue Test
Ø:125 mm, 100 Pcs./Pack
Set consists of
! High speed agitator motor, 400/600 r.p.m.
! Stirring propeller, ø 70 mm 4 flanks
! Glass burette, 50 ml x 0.1 ml
! Burette holder and stand
! Filter paper, 1 pack (100 pcs.), 125 mm dia, 95 g/m2,
0.20 mm thickness
! Glass rod, ø 8x300 mm
! Plastic beaker, 1000 ml
! Methylene blue, 100 g
! Kaolinite, 500 g
AZA 0864 STANDARD COMPACTION TEST
AZA 0869 POCKET PENTROMETER
ASTM D 1558 D 2573
This instrument is used to estimate approximate unconfined
compressive strength and the estimation to shear strength of soil
Cohesive soils can also be classified in terms of consistency
using this Penetrometer. This is a handy and convenient
instrument.
Specification:
It consists of a light weight barrel assembly with a polished and
ground steel loading piston plunger. A direct reading scale is
engraved on the piston barrel and indicates load in kg. / sq.
cm. A maximum load indicator ring is provided on the
penetration plunger. The calibrated spring is heat treated and
plated for rust resistance. The barrel diameter is 20mm and the
length 150mm. Supplied with carrying case
AZA 0871 WATER LEVEL INDICATOR
AZA 0871 A Water level indicator 50 m cable length
AZA 0871 B Water level indicator 100 m cable length
AZA 0871 C Water level indicator 150 m cable length
AZA 0871 D Water level indicator 200 m cable length
The water level indicators (electric contact meters) are portable, easy-to-use and reliable
instruments for measuring water level and total depth in bore holes, wells, observation
pipes, reservoirs, as well as control of pumping tests.
As soon as the measuring probe electrode touches the water surface, the signal indicator
on the instrument lights up with an audible alarm. The water level can be read on the
measuring tape in meters (m) and centimeters (cm).
Technical Specifications:
Measuring Range 50m, 100m, 150m, 200m
Accuracy 1 cm for a Measuring Range of 100m
Reproductibility 0.5 cm
Pressure Tightness 10 Bar (up to 50 Var Possible)
Probe Chromium-plated Brass
Standart Version 14 mm Dia. 140 mm Long
Special Version 10 mm Dia. 320 mm Long
Cable Polyethylene with 2 steel cores (Anti-corrosive) with Polyamide-coated steel tape,
Graduation in millimeters (mm), in centimetres (cm) and numbering in decimetres
In black color, the meters (m) figures are red colour on yellow-green base
Cable Drum Hard Rubber, Plastic Material and Temperature Resistant
Power Supply 3v DC.2 Baby-cells each 1.5v
