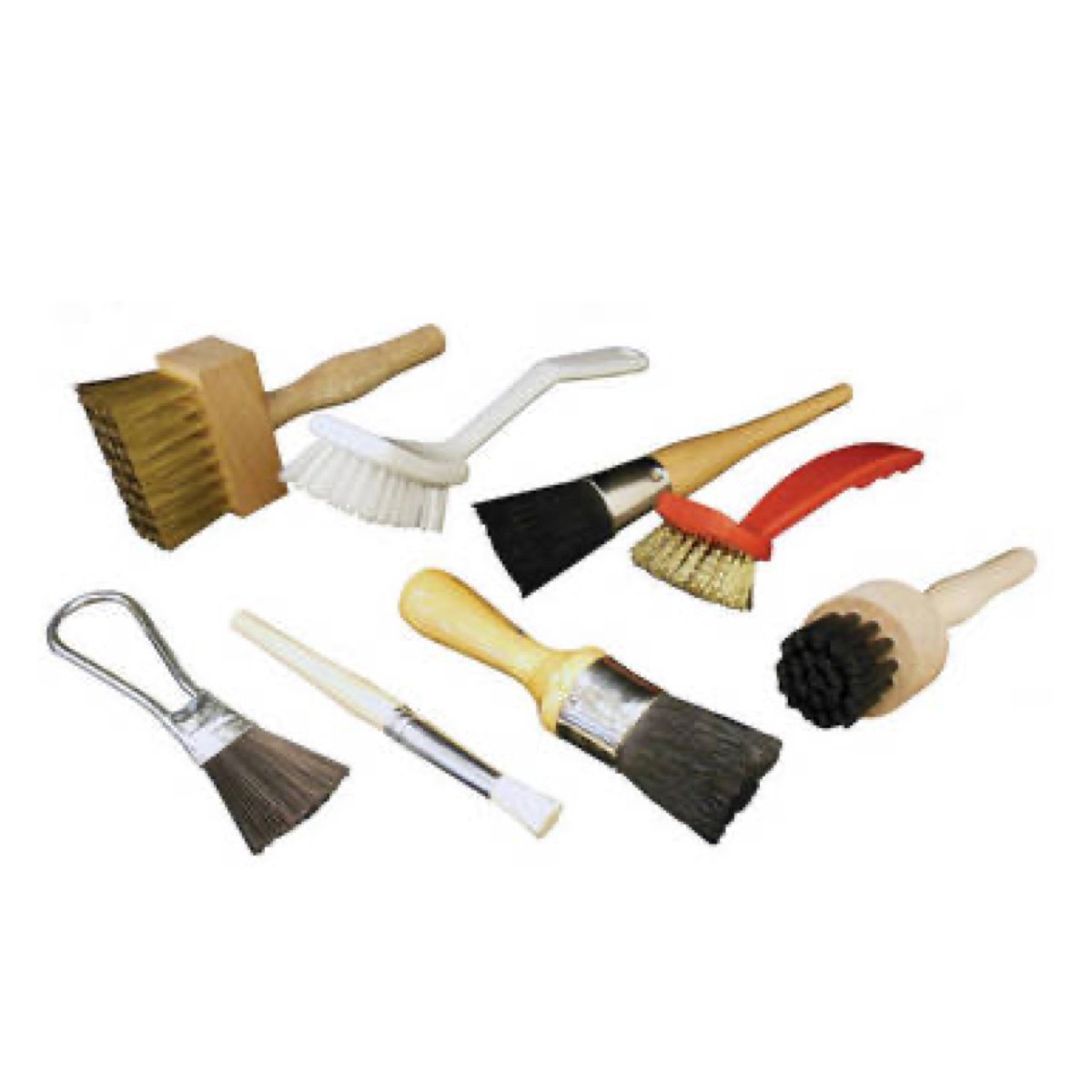

AZA 0928 SIEVE BRUSHES
BS 812
AZA 0928A Bristle round brush 30 mm.
AZA 0928B Nylon sieve brush 33 mm.
AZA 0928C Soft Hair brush 3 mm dia.
AZA 0928D Double ended brass & nylon bristle.
AZA 0928E Double ended nylon sieve brush.
Category: Soil
Related products
AZA 0851 SOIL CONE PENETROMETER
AZA 0852 SEMI AUTOMATIC CONE PENETROMETER
BS 1377:2
Specification:
Used to determine the moisture content at which clay soils pass from a
plastic to a liquid state. Two Version are available. One the standard one
& the other is semi-automatic with timer where the cone is allowed to free
fall for a period of 5 seconds including one each of 50 gm. & 100 gm.
weight, one penetration cone, preset counter & measuring cup.
AZA 0854 LIQUID LIMIT DEVICE (MOTORISED)
AZA 0857 PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD)
ASTM D 422 AASHTO T 88, BS 1377-2.
Specification:
Particle size analysis of soils:
Hydrometer method
This equipment is used to determine the quantitative
size distribution of very fine particle in soils such as clay
and silt.
The complete set comprises:
! Sedimentation Cylinder, 1000 ml capacity (6
pieces) with rubber bungs.
! Soil Hydrometer, 151H, range 0.995 to 1.038
g/ml with div. 0.001
Glass Tank, dimensions: 600x300x380 mm
! Heater complete with thermostat, circulation unit. 230V Single Phase 50Hz 1000W
! Glass Thermometer, range -10 to 50° C., Sub-div. 0.5° C.
! Beaker, Borosilicate Glass, 250 ml capacity
! Sodium Hexametaphosphate, 1000 g
! High Speed Stirrer, 4000 R.P.M, complete with baffle cup, for dispersing soil
particles in water.
AZA 0860 METHYLENE BLUE TEST SET
EN 933-9; NF P94-068; UNE 83 180; UNI 8520-15
The test set is used for determining the methylene blue value of
0/2 mm/ fraction in fine aggregates.
AZA 0860A Methylene Blue Test Set, 210-240 V 50-60 HZ
AZA 0860B 1 Filter Paper For Methylene Blue Test
Ø:125 mm, 100 Pcs./Pack
Set consists of
! High speed agitator motor, 400/600 r.p.m.
! Stirring propeller, ø 70 mm 4 flanks
! Glass burette, 50 ml x 0.1 ml
! Burette holder and stand
! Filter paper, 1 pack (100 pcs.), 125 mm dia, 95 g/m2,
0.20 mm thickness
! Glass rod, ø 8x300 mm
! Plastic beaker, 1000 ml
! Methylene blue, 100 g
! Kaolinite, 500 g
AZA 0863 STANDARD COMPACTION TEST
AZA 0871 WATER LEVEL INDICATOR
AZA 0871 A Water level indicator 50 m cable length
AZA 0871 B Water level indicator 100 m cable length
AZA 0871 C Water level indicator 150 m cable length
AZA 0871 D Water level indicator 200 m cable length
The water level indicators (electric contact meters) are portable, easy-to-use and reliable
instruments for measuring water level and total depth in bore holes, wells, observation
pipes, reservoirs, as well as control of pumping tests.
As soon as the measuring probe electrode touches the water surface, the signal indicator
on the instrument lights up with an audible alarm. The water level can be read on the
measuring tape in meters (m) and centimeters (cm).
Technical Specifications:
Measuring Range 50m, 100m, 150m, 200m
Accuracy 1 cm for a Measuring Range of 100m
Reproductibility 0.5 cm
Pressure Tightness 10 Bar (up to 50 Var Possible)
Probe Chromium-plated Brass
Standart Version 14 mm Dia. 140 mm Long
Special Version 10 mm Dia. 320 mm Long
Cable Polyethylene with 2 steel cores (Anti-corrosive) with Polyamide-coated steel tape,
Graduation in millimeters (mm), in centimetres (cm) and numbering in decimetres
In black color, the meters (m) figures are red colour on yellow-green base
Cable Drum Hard Rubber, Plastic Material and Temperature Resistant
Power Supply 3v DC.2 Baby-cells each 1.5v
