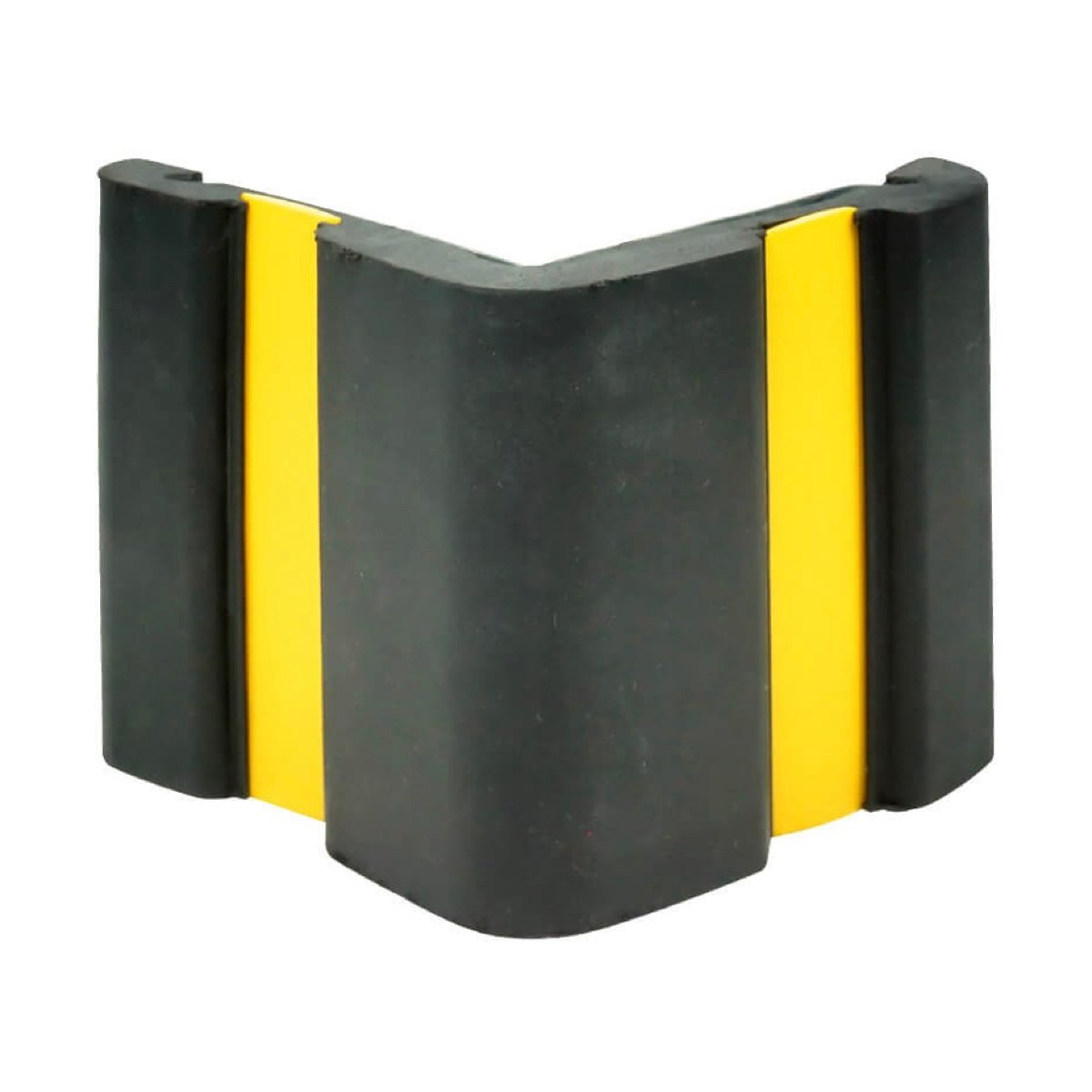

AZA 1022 CORNER GUARD
Corner guard provides an inexpensive method of protecting all products from strap and chain abrasion. Large shoulder on the chain guard prevents chain or strap from riding up and over the protector. Ribbed back prevents sliding and movement. Reusable.
! Will accommodate 4” strap or chain
! Freeze tested to below 0 degrees
! Prevent chipping and scarring of concrete
! Product will not discolor
! Packaged 100 Pcs. or 10 Pcs. per carton
Category: Security Survey Equipment
Related products
AZA 1027 ELECTRONIC THEODOLITE
The AZA 1027 Theodolites have Smart appearance, reasonable structure, practical functions. They are easy-to-use, and with excellent performance and
reliable quality. (Includes: theodolite, tribrach, NiH rechargeable battery, Charger, user manual, and one year manufacturer warranty)
Specification:
Telescope:
! Magnification: 30X
! Objective Lens: 45mm
! Overall Length: 157mm
! Stadia Ration: 100
! Stadia Constant: 0
! Image: Erect
! Field of View: 1° 30"
! Minimum Focus: 1.4m
! Resolving Power: 3.0'
Electronic Angle Measurement:
! Reading System Photoelectric detection by
incremental encoder
! Diameter of Circle (Vhz): 79mm
! Minimum Reading: 1"/5" (Selectable)
! Accuracy: 2"
! Horizontal Angle: Dual
! Vertical Angle: Dual
AZA 1032 AUTOMATIC LEVEL
Specifically designed for the construction sector, this is the most economically priced optical / dumpy level. Ideal for general construction levelling, the beautifully built Automatic Level is also the ideal tool for profiling, landscaping and much more. Featuring 24x magnification and an upright telescopic image, this Level also includes an air damped, auto compensator, a 360° field of vision, a cutting edge 'fine drive' for superbly accurate aiming as well as IP54-rated protection against water
AZA 1034 LEVELLING STAVES
Level Staff is a graduated aluminium rod, used with a levelling instrument to determine the difference in height between points or heights of points above a datum surface. It cannot be used without a leveling instrument.
Accurate provide a range of levelling staffs including E-type, bar coded, standard invar and industrial Invar Levelling Staffs. Most of the staffs are
sectional and so can be adjusted in length to allow for easy storage and transport. The aluminium staffs adjust with telescopic section inside each other, whilst the wooden versions use sliding slip joints or connections.
Sizes: 4/5/6 metres.
AZA 1036 PRISM WITH POLE
Survey Prism Poles, which we offer, are appreciated for their sturdy make. These Survey Prism Poles can be assembled in different configurations. Prisms can be mounted on the top, bottom, middle or between pole
sections. These Survey Prism Poles are meant for robotic or total station applications.
Features:
! 25.4mm tilting prism w/ 0/30mm offsets
! Built-in circular vial With 4 (30mm dia.) threaded pole sections
! 5cm stainless steel threaded point
AZA 1039 GPS SYSTEM
! Worldwide basemap
! 2.2" monochrome display, easy to read in any light
! GPS and GLONASS satellites for faster positioning
! Paperless geocaching
! 25-hour battery life with 2 AA batteries
Enhanced 2.2" monochrome display that’s easy to read in any lighting situation. Both durable and water resistant, AZA 1039 is built to withstand the elements. Its easy-to-use interface means you’ll spend more time enjoying the outdoors and less time searching for information. This features the legendary toughness that’s built to withstand the elements. Dust, dirt,
humidity, water — none are a match for this navigator.
AZA 1040 PLANIMETER
Offered in a roller-type model this planimeter features an unique 6-digit pulse count operation that permits cumulative measurement of areas up to 10m-100 times the measuring capacity of ordinary planimeters. Enhanced with advanced micro-processors for accuracy, this instrument is ideal for many applications where precise large area measurements are needed, such as in civil engineering, surveying, forest management, mapmaking and agriculture. Other features include hold and measuring control, clear liquid crystal digital readout, and scale readings in either Metric or English. Comes
packaged in a plastic carrying case with AC adapter (battery included) and operating instructions.
Specifications:
! Max. measuring range: 325mm vertical; 30m horizontal
! Accuracy: within ±0.2% (within ±2/1000 pulses)
AZA 1042 BRUNTON COMPASS
We are offering Brunton Compass Pocket Transit Type that is appreciated for its quality and reliability. The Brunton Compass is used to measure strike, inclination and topography skeleton survey.We make sure that the Brunton Compass is at par with industry standards and as per the specifications laid by our clients. Avail precision made Brunton Compassfrom us at very reasonable prices.
Features:
! Precision made
! Sturdy
! Accuracy
! Smooth finishing
