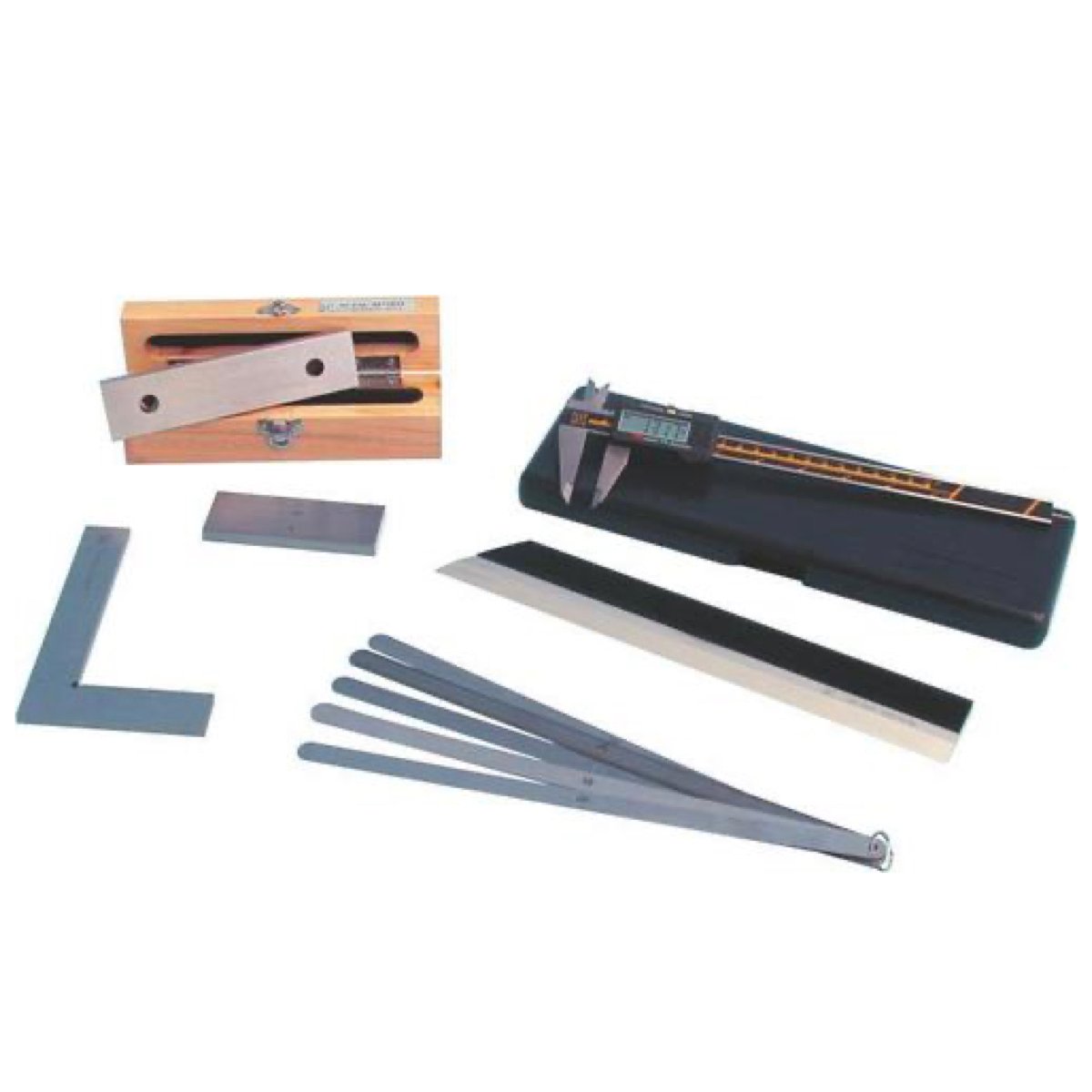

AZA 1121 VERIFICATION OF FLATNESS, PERPENDICULARITY, STRAIGHTNESS AND DIMENSION OF MOULDS AND SPECIMENS
ISO 1101 EN 12390-1
The appendix of EN 12390-1 Standard calls for a set of instruments to be used for dimensional and tolerance verification of the mould and the specimens got from the same.
AZA 1121 A Go-Not Go Gauge
For 100 & 150 mm cube moulds
AZA 1121 B Ruler
Rule straightedge, 300 mm long
AZA 1121 C Feeler Gauge
Comprising a set of strips from 0.05 to 0.50 mm, with blade 100 mm long
AZA 1121 D Rule Right Angle
Steel made, 150×100 mm, rectangular section
AZA 1121 E Digital Vernier Caliper
0-200 mm x 0.01 mm. Readings in mm and inches
Category: Concrete
Related products
AZA 1102 SLUMP TEST APPARATUS
- Slump Test Apparatus AZA 1102 for evaluating concrete workability
- Complies with IS 7320 and BS 1881-102 standards
- Durable metal slump cone: 200 mm base, 100 mm top, 300 mm height
- Includes 16 mm diameter tamping rod, 600 mm long, rounded ends
- Suitable for aggregates up to 38 mm size
- Ideal for construction sites, labs, and educational use
- Easy to handle with base plate clamps and lifting handles
AZA 1103 SLUMP CONE, PLASTIC
AZA 1112 L SHAPE BOX APPARATUS
- AZA 1112 L Shape Box for SCC passing ability test
- Simulates flow through reinforced concrete zones
- Provides H2/H1 ratio for mix assessment
- Ideal for tunnels, bridges, and dense structures
- Built from durable, corrosion-resistant steel
- Complies with EN 12350-10 and EFNARC guidelines
- Used in lab & field conditions for SCC validation
AZA 1115 MORTAR PENETROMETER
ASTMC-403
It is used for finding out the rate of hardening of mortar sieved from concrete spring and a stem graduated from 0-70 kg x 1 kg. Six interchangeable penetration needles of areas 645, 323, 65 32 and 16 mm sq. is provided. The penetration resistance is measured by the force exerted to penetrate the mortar by 25 mm and is indicated by a sliding ring on the stem, which is graduated. Needle shanks are marked at every 12.5 mm. Supplied complete in a wooden carrying case
AZA 1117 LABORATORY PAN MIXER (CAPACITY 40 LTRS.)
The Concrete mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency. This in turn gives consistent quality of cubes specimens when casted in the moulds.
The Concrete Mixer developed is transportable on wheels. The design of mixing paddles ensures uniform & efficient mixing of cement & aggregate both in dry & wet conditions. This machine is suitable for aggregate size up to 20 mm. The equipment can also be put to use for mixing of any other material in dry / wet conditions. The arrangement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation. The drum is driven off the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator.
Specifications:
Mixing Capacity: 40 ltrs.
Overall Dimension: 910 x 875 x 1250 mm
Motor: 2 HP, 960 RPM
Power supply: 440 V, 50 Hz, 3 phase AC
Features:
• Portable, compact & easy to operate
• Adjustable blades
• Simple to clean & maintain
AZA 1118 LABOMIX CONCRETE PAN MIXER
The right choice for the demanding professional user. Here you get the best value for money without making any compromises on the well-known ACCURATE virtues. Quality, durability and efficiency completely lives up to even the highest demands.
Features:
Large motor with plenty of power
High quality & finish
Exchangeable mixer shovels
Automatic emptying of the container
Large transport wheels make it easy to load the mixer
Easy to clean
Positioning bolt secures the cover during use/transport
Can be operated by one man
Maintenance free high-quality gear
Model AZA 1118A AZA 1118B AZA 1118C AZA 1118D
Motor (KW) 1.1/1.1 1.5/1.5 2.2/1.8 4.0
Currency (V) 1x240 1x240 3x440 3x440
Gear/RPM 32 32 32 32
Container capacity (L) 90 120 200 300
Mixing capacity (L) 74 90 160 250
Mixing capacity (KG concrete) 174 211 376 587
Dimensions (WXDXH)(mm) 640x800x107 640x800x107 780x105x116 100x142x122
Weight (KG) 80 90 180 245
AZA 1124: BEAM MOULD
- AZA 1124 Beam Mould for concrete flexural strength testing
- Sturdy, corrosion-resistant steel or cast iron construction
- Produces precise concrete beams – 100x100x500 mm or 150x150x700 mm
- Split-mould design for easy de-moulding
- Reusable and lab-compliant with IS & ASTM standards
- Available at Azalab with warranty and expert support
AZA 1125 PLASTIC MOULDS
These one-piece moulds, very appreciated by the user, are made from hard plastic, strong, light, undeform able; resistant to vibrations shocks and wear. They do not require mounting and dismounting operations, thus saving time and labor. They just require a simple clean and de mould oiling before being ready for use again for many times. The specimen is expelled from the mould by compressed air or water. The entire process of manufacturing the plastic moulds support greener and cleaner environment. This type of manufacturing is pollution free. The complete range of plastic products are 1/10 the weight compared to the metal substitute. This makes them easy to handle in transportation.
