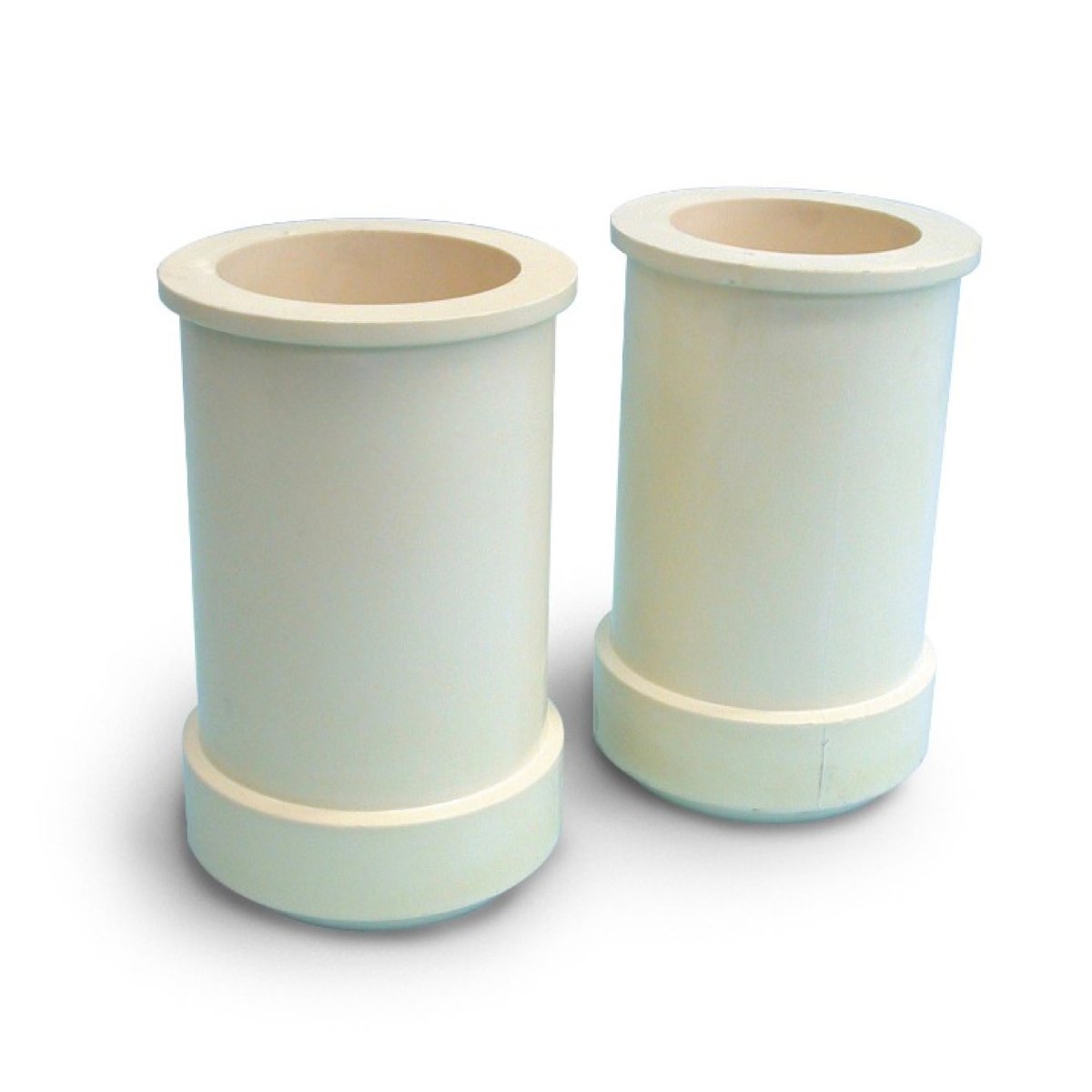

AZA 1127 PLASTIC CYLINDERICAL MOULD
AZA 1127 A 150 mm X 300 mm Polyurethane 1.65 KG
AZA 1127 B 100 mm X 200 mm Polyurethane 0.9 KG
Category: Concrete
Related products
AZA 1103 SLUMP CONE, PLASTIC
AZA 1106 KELLEY BALL PENETRATION APPARATUS
AZA 1107 COMPACTION FACTOR APPARATUS
- Concrete workability tester for dry mixes
- Measures compaction factor with precision
- Double-hopper system with standard trap release
- Conforms to IS 1199 and BS 1881 standards
- Ideal for precast and low-slump concrete testing
- Rugged and portable for field/lab use
- Includes cylindrical container and accessories
AZA 1114 POCKET CONCRETE PENETROMETER
ASTMC-403
For fast evaluation of the initial setting of concrete. It can be used on light weight concrete, special roof deck mixes and concrete additives.
Specification:
Consists of a needle having face area 3/10 sq. cm. and graduated at a distance of 25 cm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve.
The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set.
Supplied complete in carrying case.
AZA 1115 MORTAR PENETROMETER
ASTMC-403
It is used for finding out the rate of hardening of mortar sieved from concrete spring and a stem graduated from 0-70 kg x 1 kg. Six interchangeable penetration needles of areas 645, 323, 65 32 and 16 mm sq. is provided. The penetration resistance is measured by the force exerted to penetrate the mortar by 25 mm and is indicated by a sliding ring on the stem, which is graduated. Needle shanks are marked at every 12.5 mm. Supplied complete in a wooden carrying case
AZA 1118 LABOMIX CONCRETE PAN MIXER
The right choice for the demanding professional user. Here you get the best value for money without making any compromises on the well-known ACCURATE virtues. Quality, durability and efficiency completely lives up to even the highest demands.
Features:
Large motor with plenty of power
High quality & finish
Exchangeable mixer shovels
Automatic emptying of the container
Large transport wheels make it easy to load the mixer
Easy to clean
Positioning bolt secures the cover during use/transport
Can be operated by one man
Maintenance free high-quality gear
Model AZA 1118A AZA 1118B AZA 1118C AZA 1118D
Motor (KW) 1.1/1.1 1.5/1.5 2.2/1.8 4.0
Currency (V) 1x240 1x240 3x440 3x440
Gear/RPM 32 32 32 32
Container capacity (L) 90 120 200 300
Mixing capacity (L) 74 90 160 250
Mixing capacity (KG concrete) 174 211 376 587
Dimensions (WXDXH)(mm) 640x800x107 640x800x107 780x105x116 100x142x122
Weight (KG) 80 90 180 245
AZA 1119 TAMPING ROD
AZA 1125 PLASTIC MOULDS
These one-piece moulds, very appreciated by the user, are made from hard plastic, strong, light, undeform able; resistant to vibrations shocks and wear. They do not require mounting and dismounting operations, thus saving time and labor. They just require a simple clean and de mould oiling before being ready for use again for many times. The specimen is expelled from the mould by compressed air or water. The entire process of manufacturing the plastic moulds support greener and cleaner environment. This type of manufacturing is pollution free. The complete range of plastic products are 1/10 the weight compared to the metal substitute. This makes them easy to handle in transportation.
