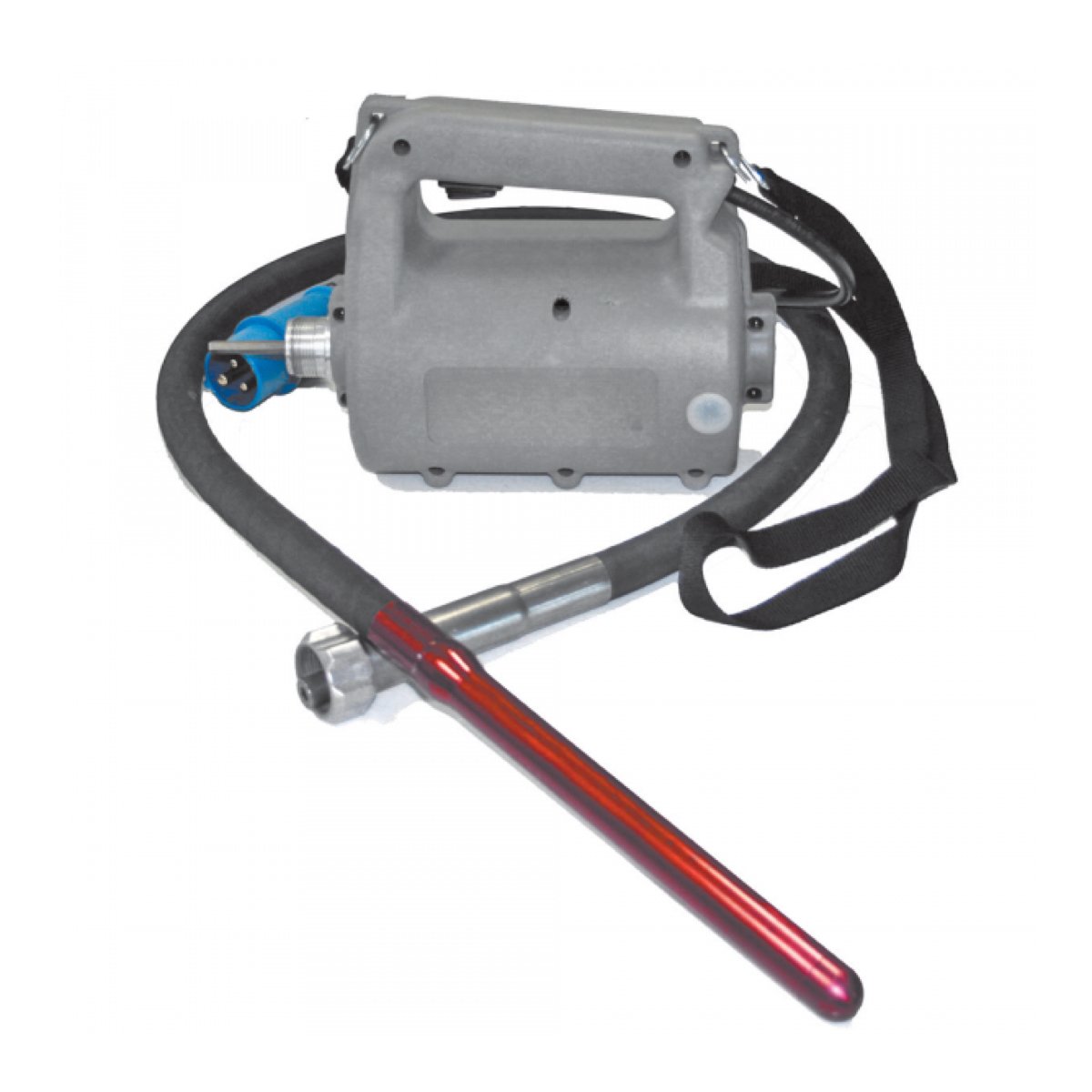

AZA 1167 POKER VIBRATOR (WITH VIBRATING TABLE)
EN 12390–2; ASTM C31, C192; AASHTO T23, T126
Ø 22 mm hand-held, 220-240 V 50-60 hz
The poker vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products
Category: Concrete
Related products
AZA 1107 COMPACTION FACTOR APPARATUS
- Concrete workability tester for dry mixes
- Measures compaction factor with precision
- Double-hopper system with standard trap release
- Conforms to IS 1199 and BS 1881 standards
- Ideal for precast and low-slump concrete testing
- Rugged and portable for field/lab use
- Includes cylindrical container and accessories
AZA 1109 J-RING, NARROW GAP
- AZA 1109 J-Ring for SCC passing ability test
- Narrow gap design for stringent testing conditions
- Simulates rebar obstruction in congested zones
- Measures flow diameter, T50, and blockage
- Compliant with ASTM C1621, EFNARC guidelines
- Works with standard slump flow cone
- Durable steel construction for repeated lab use
AZA 1111 V FUNNEL
AZA 1114 POCKET CONCRETE PENETROMETER
ASTMC-403
For fast evaluation of the initial setting of concrete. It can be used on light weight concrete, special roof deck mixes and concrete additives.
Specification:
Consists of a needle having face area 3/10 sq. cm. and graduated at a distance of 25 cm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve.
The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set.
Supplied complete in carrying case.
AZA 1117 LABORATORY PAN MIXER (CAPACITY 40 LTRS.)
The Concrete mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency. This in turn gives consistent quality of cubes specimens when casted in the moulds.
The Concrete Mixer developed is transportable on wheels. The design of mixing paddles ensures uniform & efficient mixing of cement & aggregate both in dry & wet conditions. This machine is suitable for aggregate size up to 20 mm. The equipment can also be put to use for mixing of any other material in dry / wet conditions. The arrangement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation. The drum is driven off the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator.
Specifications:
Mixing Capacity: 40 ltrs.
Overall Dimension: 910 x 875 x 1250 mm
Motor: 2 HP, 960 RPM
Power supply: 440 V, 50 Hz, 3 phase AC
Features:
• Portable, compact & easy to operate
• Adjustable blades
• Simple to clean & maintain
AZA 1122 CUBE MOULD (METAL)
- Cube Mould AZA 1122: Precision-engineered for 150mm concrete sample casting.
- Material: Constructed from durable metal for long-term use.
- Standard Compliance: Meets IS and BS specifications for concrete testing.
- Design: Rigid construction ensures dimensional accuracy and repeatability.
- Application: Ideal for laboratories, construction sites, and educational institutions.
