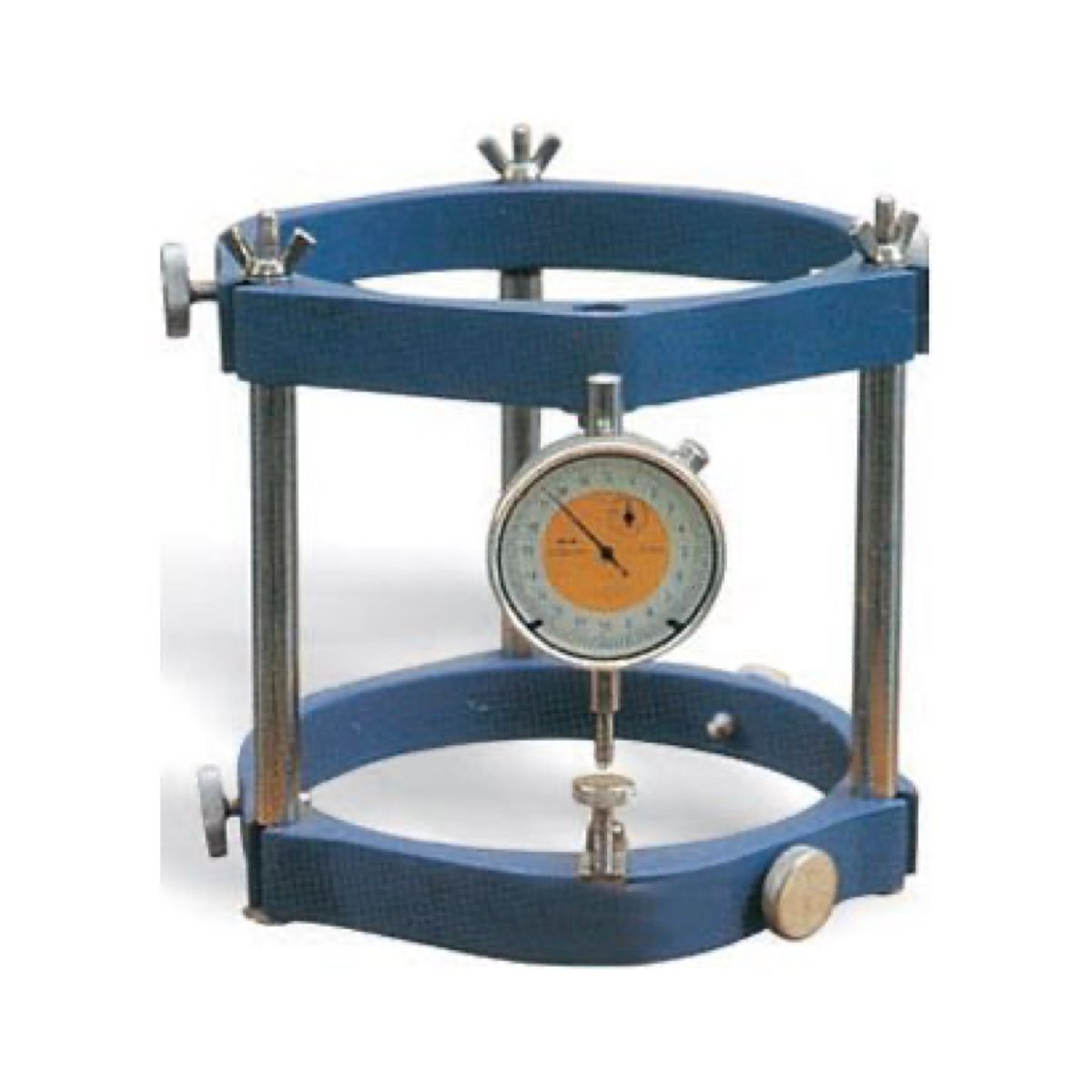

AZA 1172 LONGITUDINAL COMPRESSOMETER
ASTM C 469
It is designed for finding out the deformation and strains on 150 mm. Diameter and 300 mm high cement and concrete cylinders when subjected to compressive loads.
Specification:
Consists of a frame with a bottom ring and a top ring with tightening screws to firmly clamp the compress meter over the cylinder. A dial gauge .002 mm x 5 mm is mounted on the upper ring and the tie of the dial gauge rests on an anvil. The zero on the dial gauge can be set by adjusting the anvil screw. Supplied in a wooden carrying case
Category: Concrete
Related products
AZA 1101 VEE BEE CONSISTOMETER
- Vee Bee Consistometer for stiff concrete workability testing
- Performs slump test + Vee Bee time for dual accuracy
- Ideal for dry, roller-compacted concrete and pavement mixes
- Vibrating table ensures uniformity in testing
- Includes cone, container, graduated rod & vibration unit
- Built as per IS 1199 and ASTM C1170 standards
- Reliable results in construction material testing labs
AZA 1105 CHASE AIR INDICATOR
AZA 1107 COMPACTION FACTOR APPARATUS
- Concrete workability tester for dry mixes
- Measures compaction factor with precision
- Double-hopper system with standard trap release
- Conforms to IS 1199 and BS 1881 standards
- Ideal for precast and low-slump concrete testing
- Rugged and portable for field/lab use
- Includes cylindrical container and accessories
AZA 1109 J-RING, NARROW GAP
- AZA 1109 J-Ring for SCC passing ability test
- Narrow gap design for stringent testing conditions
- Simulates rebar obstruction in congested zones
- Measures flow diameter, T50, and blockage
- Compliant with ASTM C1621, EFNARC guidelines
- Works with standard slump flow cone
- Durable steel construction for repeated lab use
AZA 1112 L SHAPE BOX APPARATUS
- AZA 1112 L Shape Box for SCC passing ability test
- Simulates flow through reinforced concrete zones
- Provides H2/H1 ratio for mix assessment
- Ideal for tunnels, bridges, and dense structures
- Built from durable, corrosion-resistant steel
- Complies with EN 12350-10 and EFNARC guidelines
- Used in lab & field conditions for SCC validation
AZA 1114 POCKET CONCRETE PENETROMETER
ASTMC-403
For fast evaluation of the initial setting of concrete. It can be used on light weight concrete, special roof deck mixes and concrete additives.
Specification:
Consists of a needle having face area 3/10 sq. cm. and graduated at a distance of 25 cm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve.
The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set.
Supplied complete in carrying case.
AZA 1115 MORTAR PENETROMETER
ASTMC-403
It is used for finding out the rate of hardening of mortar sieved from concrete spring and a stem graduated from 0-70 kg x 1 kg. Six interchangeable penetration needles of areas 645, 323, 65 32 and 16 mm sq. is provided. The penetration resistance is measured by the force exerted to penetrate the mortar by 25 mm and is indicated by a sliding ring on the stem, which is graduated. Needle shanks are marked at every 12.5 mm. Supplied complete in a wooden carrying case
