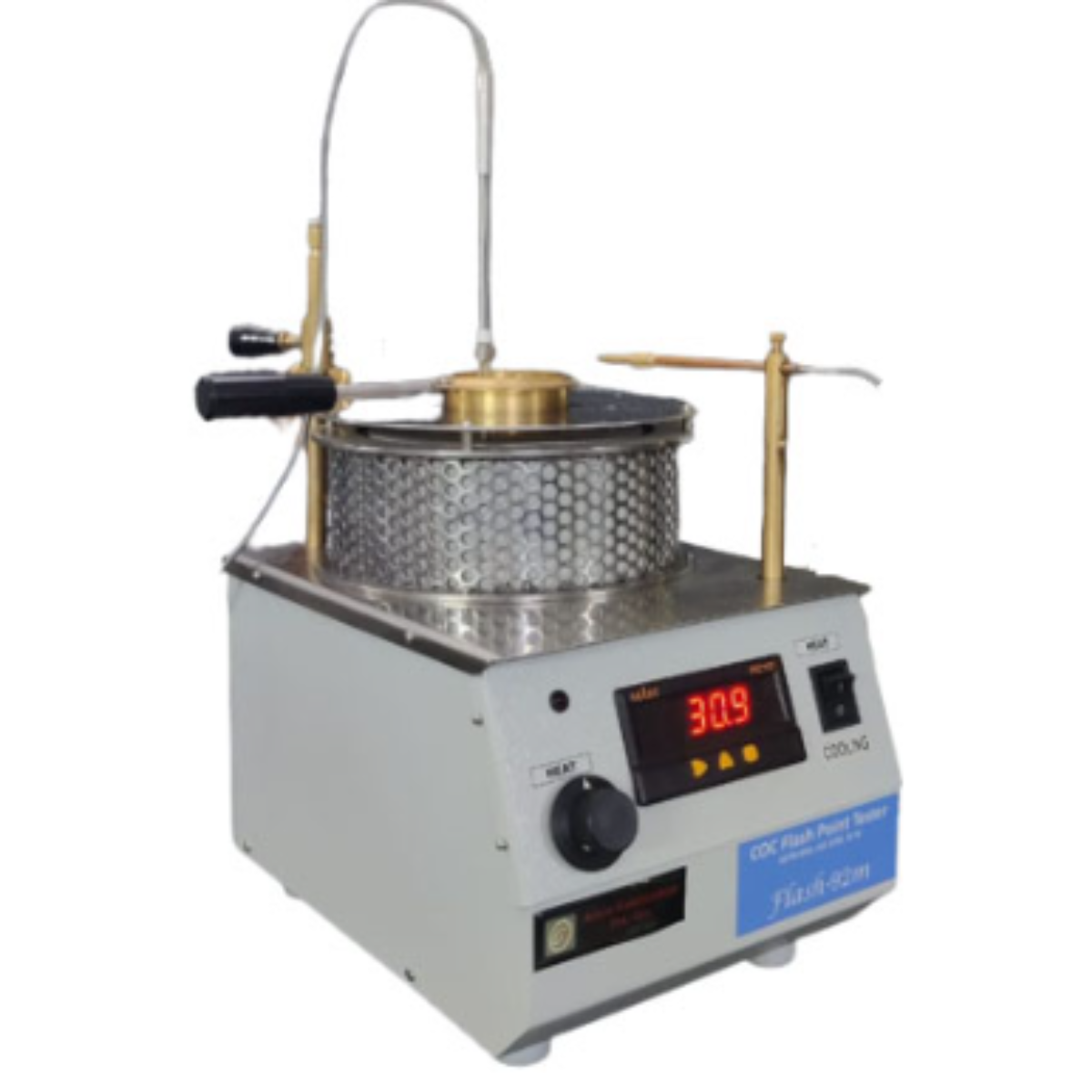

AZA-LAB Classic Open Cup Flash Point Apparatus (AZA – 1294)
Conforming to Methods: ASTM D92, ISO 2592, IS 1448 (P:69), & IP 36
This Flash Point Tester is designed to accurately determine the flash point of petroleum products using the Cleveland Open Cup method. Ideal for quality control, research labs, and routine testing, it ensures safe and reliable operation.
Description
TECHNICAL SPECIFICATIONS
| Parameter | Details |
|---|---|
| Model | AZA-Lab Cleveland Open Cup Flash Point Tester |
| Test Methods | ASTM D92, ISO 2592, IS 1448 (P:69), IP 36 |
| Cooling | Axial Fan @ 230 VAC |
| Heating | Coil Heater 1000 Watts @ 230 Volts |
| Heat Rate | Controlled via precise ten-turn potentiometer |
| Ignition Source | Gas Igniter – Precise control |
| Test Type | Manual dipping; heating can be stopped via toggle switch |
| Lid Assembly | Permanently fixed sample temperature sensor and igniter for easy operation |
| Sample Temperature | Glass PT100, Class A, with digital indication / thermometer interchangeable |
| Stirrer RPM | Not Applicable |
| Dimensions | Width: 220 mm × Depth: 300 mm × Height: 400 mm |
| Power Supply | 230 Volts, 50 Hz, 1200 Watts |
Related products
AutoDist‑86 Glass Distillation (AZA 1282)
AutoFlash- Automated ABEL Flash Point Analyzer (AZA 1278)
The AutoFlash-1278 is a fully automated, microcontroller-based ABEL Flash Point Analyzer, specifically designed for the determination of the flash point of combustible liquids. It conforms to IP 170, ISO 13736, and IS 1448 (P:20) standards, ensuring high precision and repeatability.
It determines flash points within a temperature range of -30°C to 70°C, and can be extended to 110°C for specialized applications. The device is ideal for laboratories handling petroleum products, quality control, R&D, and regulatory compliance.
AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER(AZA 1279)
AutoFlash-1278 is a programmable, fully automated, microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer conforming to standards:
ASTM D92, ISO 2592, IS 1448 (P:69), IP 36.
It is suitable for all petroleum products, especially viscous materials, with flash points:
-
Above 79°C and
-
Below 400°C (excluding fuel oils)
Also used to determine the fire point, i.e., the temperature at which the test specimen sustains combustion for a minimum of 5 seconds.
Dist‑86S Semi‑Automated Distillation Analyzer (AZA 1283)
Standards & Methods
- ASTM D86, D850, D1078
- ISO 3405, IP123, IP195
- JIS K2254, IS 1448 P:18
Oil & Gas Sampling Cylinders with Double & Triple Ended (AZA -1274 A)
Precision Automated Distillation Analyzer (AZA 1281)
AutoDist‑86 is a fully automated, programmable distillation system built on microcontroller/PC control with Peltier condenser cooling. It’s ideal for ASTM D86, D850, D1078, D189, ISO 3405, IP123, IP195, JIS K2254, IS 1448 P:18 methods. Suitable for analysis of gasoline, kerosene, diesel, solvents, oils, and aromatics under atmospheric pressure.
Programmable Fully‑Automated Cleveland Open‑Cup Flash & Fire Point Analyzer(AZA 1290)
STAINLESS STEEL COC CLEVELAND OPEN CUP FLASH POINT ANALYZER (AZA 1293)
A programmable, fully automated microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer, conforming to:
-
Standards: ASTM D92, ISO 2592, IS 1448 (P:69), IP 36
Applicable for all petroleum products (primarily viscous materials) with flash points above 79°C and below 400°C (excluding fuel oils).
Also used to determine fire point – the temperature above flash point at which the test specimen supports combustion for at least 5 seconds.
OPERATING REQUIREMENTS:
-
Power Supply: 230V, 50Hz, 1500W
-
Dimensions: W: 410mm × D: 420mm × H: 330mm
-
Weight: 16 kg
-
Ambient Conditions: 10–35°C; RH 80% at 35°C
