AZA 0878 SOIL PERMEABILITY 75 MM

Description

AZA 0878: Versatile Soil Permeability Apparatus with 75mm Cell

The AZA 0878 Soil Permeability Apparatus with 75mm bore from Azalab is an indispensable instrument for any geotechnical testing laboratory. Understanding the soil permeability, also known as hydraulic conductivity, is crucial in numerous civil engineering applications, including the design of foundations, earth dams, embankments, drainage systems, and assessing groundwater flow and potential liquefaction. This apparatus provides a precise method for determining how easily water flows through soil, a fundamental characteristic that governs the behavior of saturated soil layers.

The versatility of the AZA 0878 lies in its ability to perform both the Constant Head and Falling Head permeability tests. This dual functionality makes it suitable for a wide range of soil types:

1. Constant Head Permeability Test: This method is typically used for coarse-grained soils such as sands and gravels, or mixtures containing very little silt. In this test, a constant differential pressure (head) is maintained across the soil sample within the 75mm permeameter. Water flows through the sample under this steady pressure, and the volume of outflow is collected over a measured period. The coefficient of soil permeability is then calculated using Darcy’s Law. The AZA 0878 facilitates this with its designated bore tube, often featuring an overflow arrangement to maintain a consistent water level.

2. Falling Head Permeability Test: This method is ideal for fine-grained soils like silts and clays, which exhibit lower permeability. Here, the hydraulic head across the sample is allowed to decrease as water flows through. The apparatus utilizes additional glass tubes (standpipes) of varying diameters, and the rate of fall of the water level in these tubes is monitored over time. The AZA 0878 integrates these tubes, allowing for accurate measurement of permeability in less permeable soils.

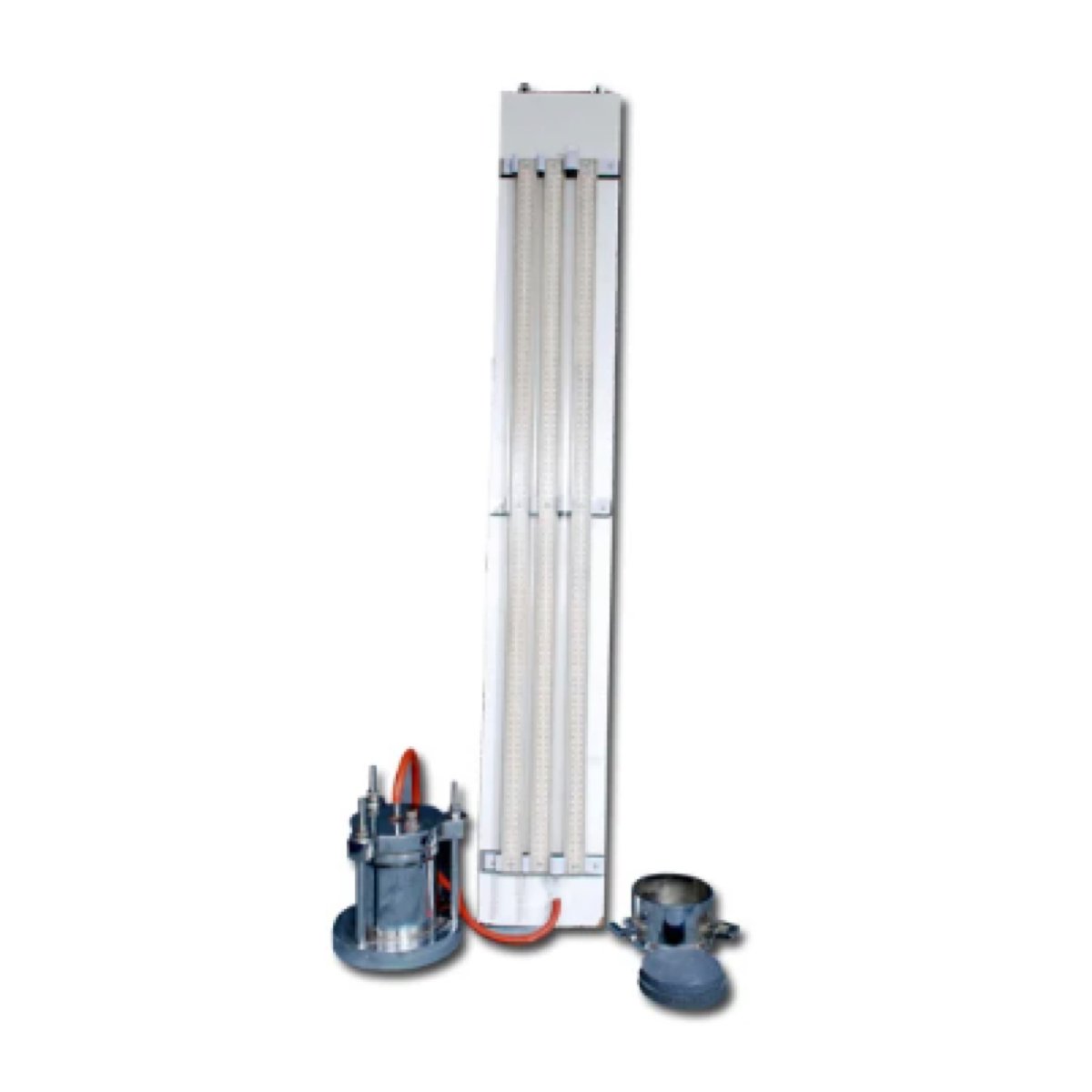

The core of the AZA 0878 Soil Permeability Apparatus is its 75mm diameter permeameter cell (or mould). This specific size is commonly used and provides a representative sample for various laboratory tests. The complete setup usually includes the permeameter mould, a standpipe panel with multiple glass tubes of different diameters (including the 75mm bore tube with overflow for constant head, and other tubes for falling head), a wooden meter scale for precise readings, porous stones to prevent soil particle washout, and necessary connecting tubing. The apparatus is designed for saturation of the soil sample prior to testing, a critical step to ensure accurate results.

Azalab constructs the AZA 0878 from high-quality, durable materials, ensuring longevity and consistent performance in a laboratory setting. Its design adheres to relevant international standards, including IS 2720 (Part XVII) (Methods of test for soils: Determination of coefficient of permeability), ASTM D2434 (Standard Test Method for Permeability of Granular Soils (Constant Head Method) – though now withdrawn, principles remain relevant and often cross-referenced), and BS EN ISO 17892-11 (Geotechnical investigation and testing – Laboratory testing of soil – Part 11: Determination of permeability by constant head and falling head in a triaxial cell). For detailed theoretical background on soil permeability and test procedures, resources from reputable bodies like ASTM International or textbooks on “Soil Mechanics” are highly recommended.

By investing in the AZA 0878 Soil Permeability Apparatus, laboratories can obtain accurate and reliable data on the hydraulic characteristics of soils, which is fundamental for informed geotechnical design and analysis, contributing to the safety and success of civil engineering projects.

Specifications for the AZA 0878 SOIL PERMEABILITY 75 MM APPARATUS

• Model Number: AZA 0878
• Apparatus Type: Universal Soil Permeability Apparatus (Constant Head & Falling Head)
• Permeameter Cell (Mould) Diameter: 75 mm
• Mould Material: Typically gun metal or durable transparent acrylic/plastic.
• Standpipe Panel:
  • Includes multiple glass standpipes (bore tubes) of various diameters.
  • Specific 75mm bore tube with overflow arrangement for Constant Head tests.
  • Remaining tubes of smaller diameters (e.g., 6mm, 10mm, 20mm, etc.) for Falling Head tests.
• Measuring Scale: Wooden meter scale for reading water levels.
• Drainage Plates/Porous Stones: Top and bottom porous stones (or perforated plates) to allow water flow while retaining soil.
• Clamping Mechanism: Robust clamps or nuts to secure the permeameter mould between drainage plates.
• Tubing: Flexible rubber tubing for water connections.
• Base: Stable base for mounting the permeameter and standpipe panel.
• Water Supply: Requires an external constant head water supply arrangement (e.g., constant head tank, often supplied separately).
• Compliance: Meets essential requirements of:
  • IS 2720 (Part XVII)
  • ASTM D2434 (referential for constant head)
  • BS EN ISO 17892-11 (for permeability determination)
• Usage/Application: Laboratory determination of the coefficient of soil permeability (hydraulic conductivity) for various soil types.

FREQUENTLY ASKED QUESTIONS (FAQ) about the AZA 0878 SOIL PERMEABILITY APPARATUS

Q1: What is the main function of the AZA 0878 Soil Permeability Apparatus? A1: The AZA 0878 is used to determine the coefficient of soil permeability (also known as hydraulic conductivity) in the laboratory, which measures how easily water can flow through a soil sample.

Q2: What does “75 MM” refer to in the AZA 0878? A2: “75 MM” refers to the internal diameter of the permeameter cell or mould that holds the soil sample during the test. This is a common size for soil permeability testing.

Q3: Can the AZA 0878 perform both Constant Head and Falling Head tests? A3: Yes, the AZA 0878 is a versatile apparatus designed to perform both Constant Head (typically for coarse-grained soils like sands) and Falling Head (for fine-grained soils like silts and clays) permeability tests.

Q4: When would I use the Constant Head method versus the Falling Head method with this apparatus? A4: The Constant Head method is generally used for soils with higher permeability (e.g., sands and gravels), where a steady flow rate can be maintained. The Falling Head method is more suitable for soils with lower permeability (e.g., silts and clays), where the flow rate is slow and the change in head is measurable over time.

Q5: What international standards does the AZA 0878 comply with? A5: The AZA 0878 is designed to meet the requirements of standards such as IS 2720 (Part XVII), ASTM D2434, and BS EN ISO 17892-11 for soil permeability determination.

Q6: Why is determining soil permeability important in geotechnical engineering? A6: Knowing soil permeability is critical for designing foundations, drainage systems, earth dams, embankments, assessing groundwater flow, predicting settlement rates of saturated soils, and evaluating the potential for liquefaction during earthquakes.

Q7: What preparation is required for a soil sample before testing with the AZA 0878? A7: Before testing, the soil sample must be carefully prepared and thoroughly saturated within the 75mm permeameter cell to ensure that all voids are filled with water, allowing for accurate measurement of water flow.
