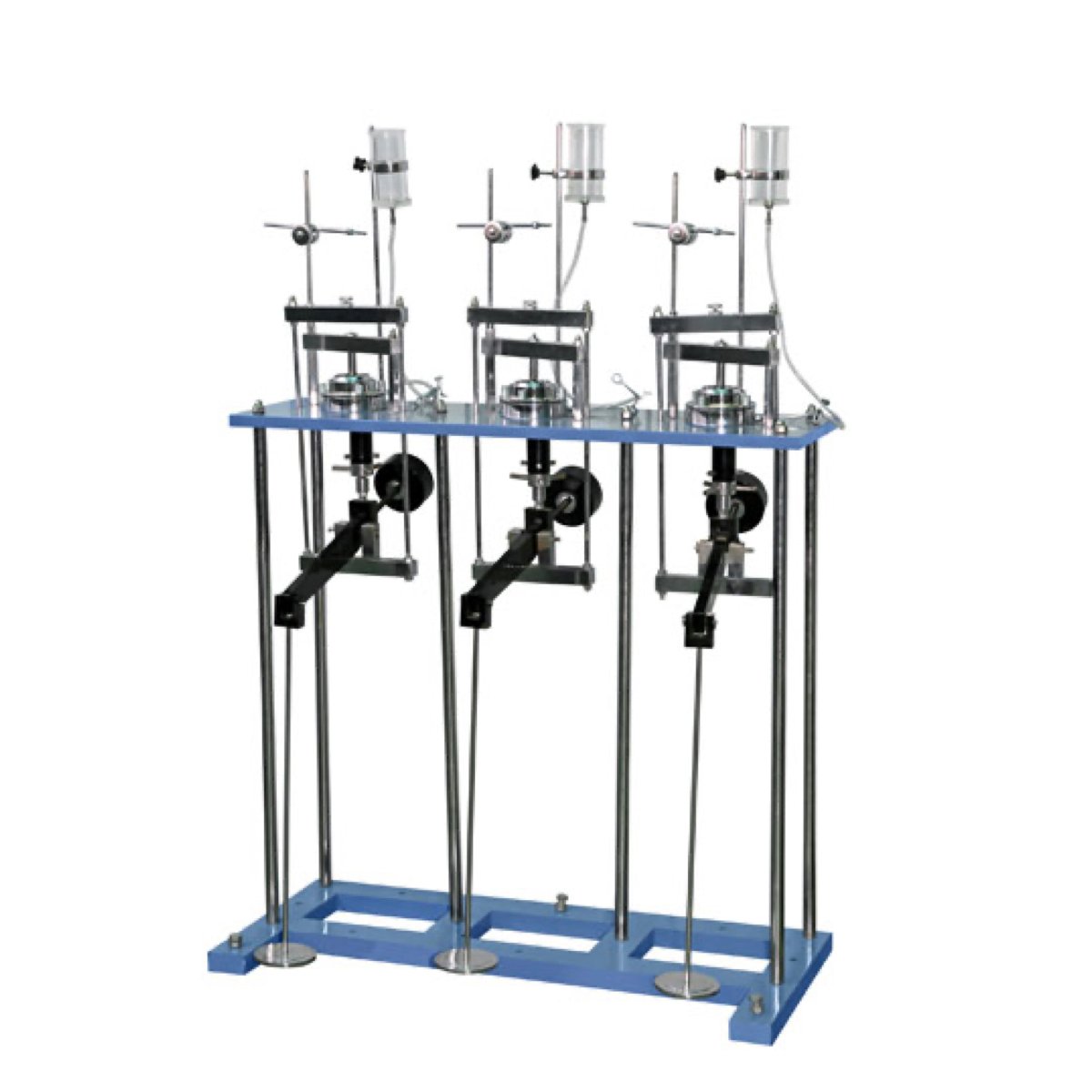

AZA 0898 CONSOLIDATION APPARATUS (THREE GANG MODEL)

Description

AZA 0898: Three Gang Consolidation Apparatus for Efficient Soil Consolidation Testing

The AZA 0898 Consolidation Apparatus (Three Gang Model) from Azalab is an indispensable instrument for geotechnical testing laboratories demanding high throughput and efficiency in soil consolidation analysis. This specialized apparatus is designed to simultaneously determine the rate and magnitude of volume change (consolidation) in three independent soil specimens when subjected to various static loads. This capability to test multiple samples concurrently significantly reduces overall testing time, making the AZA 0898 an ideal solution for large-scale projects or busy commercial testing environments.

Understanding soil consolidation characteristics is fundamental in civil engineering for accurately predicting the long-term settlement of structures, embankments, and pavements. The data obtained from consolidation tests allows engineers to determine critical parameters such as the coefficient of consolidation ($c\_v$), compression index ($C\_c$), swelling index ($C\_s$), and the preconsolidation pressure (p′_c). These values are vital for designing foundations that can safely support anticipated loads without excessive or differential settlement. The AZA 0898 Three Gang Consolidation Apparatus empowers laboratories to acquire this crucial data more rapidly and efficiently.

Each of the three ‘gangs’ or stations in the AZA 0898 operates independently. This means that different normal loads can be applied to each of the three soil samples simultaneously, or tests can be started and stopped at different times, offering maximum flexibility in laboratory scheduling and experimental design. Each station typically comprises a robust loading frame, a consolidation cell (oedometer cell) to confine the soil sample laterally, and a system for applying vertical load (commonly dead weights via a lever arm). While the base model usually includes mechanical dial gauges for deformation measurement, it can often be upgraded or specified with electronic displacement transducers (LVDTs) and a data logging system for automated, high-precision data acquisition, further enhancing efficiency and accuracy.

The robust construction of the AZA 0898 Consolidation Apparatus ensures long-term durability and stable performance under continuous use. Its design is carefully engineered to minimize unwanted deflections and ensure precise load application, critical for obtaining reliable soil consolidation results. Azalab’s commitment to quality ensures that this three gang model adheres to or exceeds relevant international standards for geotechnical testing, such as ASTM D2435 (Standard Test Methods for One-Dimensional Consolidation Properties of Soils) and BS 1377-5 (Methods of test for soils for civil engineering purposes. Compression and swelling tests). For comprehensive understanding of soil mechanics and consolidation principles, consulting standard textbooks and resources from professional organizations like the International Society for Soil Mechanics and Geotechnical Engineering (ISSMGE) or the American Society of Civil Engineers (ASCE) is recommended. Exploring concepts like “Terzaghi’s theory of consolidation” and “effective stress principle” will further deepen your insights.

By investing in the AZA 0898 Three Gang Consolidation Apparatus, your laboratory gains a high-capacity, efficient, and reliable instrument capable of delivering accurate soil consolidation data from multiple samples. This increased testing throughput directly translates to improved project timelines and more effective geotechnical engineering solutions.

Specifications for the AZA 0898 Consolidation Apparatus (Three Gang Model)

• Model Number: AZA 0898
• Test Type: Soil Consolidation (Oedometer Test)
• Configuration: Three Gang Model, allowing simultaneous testing of 3 samples.
• Loading System: Independent dead weight and lever arm systems for each gang.
• Load Ratio: Typically 10:1 or 1:1, allowing precise application of normal stresses.
• Consolidation Cells: Three standard consolidation cells (oedometer rings) included, common sizes include 50 mm, 63.5 mm, or 75 mm diameter.
• Deformation Measurement:
  • Standard: Three mechanical dial gauges (e.g., 10 mm or 25 mm travel, 0.01 mm resolution).
  • Optional Upgrade: Three electronic LVDT transducers with digital display and data logging capability.
• Normal Load Capacity: Varies per unit, typically accommodating loads up to 1000 kPa or more per sample.
• Material Construction: Robust steel frame, precision-machined brass or stainless steel consolidation cells and components.
• Compliance: Designed to meet international geotechnical testing standards (e.g., ASTM D2435, BS 1377-5).
• Dimensions: Larger benchtop footprint compared to single-gang models due to multiple samples capacity.
• Weight: Substantial, ensuring stability during testing.

FREQUENTLY ASKED QUESTIONS (FAQ) about the AZA 0898

Q1: What is the primary benefit of the AZA 0898 being a “Three Gang Model”? A1: The primary benefit is the ability to test multiple samples (three) simultaneously, which significantly increases laboratory efficiency and throughput for soil consolidation analyses.

Q2: Can I apply different loads to each sample in the AZA 0898? A2: Yes, each of the three stations operates independently, allowing you to apply different normal loads to each soil specimen concurrently or run tests with different starting times.

Q3: What soil parameters can be determined using this AZA 0898 Consolidation Apparatus? A3: The AZA 0898 allows for the determination of key soil consolidation parameters including the coefficient of consolidation ($c\_v$), compression index ($C\_c$), swelling index ($C\_s$), and the preconsolidation pressure (p′_c), essential for geotechnical testing.

Q4: Is the AZA 0898 suitable for automated data acquisition? A4: While the standard model may come with dial gauges, the AZA 0898 can often be supplied or upgraded with electronic LVDTs and a data logging system for automated and high-precision data acquisition.

Q5: What is the typical sample size for the AZA 0898? A5: The AZA 0898 typically accommodates standard consolidation cell sizes, such as 50 mm, 63.5 mm, or 75 mm diameter samples.

Q6: What maintenance is required for the AZA 0898 Three Gang Model? A6: Regular maintenance includes cleaning the consolidation cells, ensuring the loading system operates smoothly, and periodically calibrating the dial gauges or electronic transducers to maintain accuracy in your geotechnical testing.

Q7: How does this apparatus contribute to project efficiency? A7: By enabling the simultaneous testing of multiple samples, the AZA 0898 significantly reduces the overall time required to complete consolidation tests, leading to faster data availability for project decision-making.
