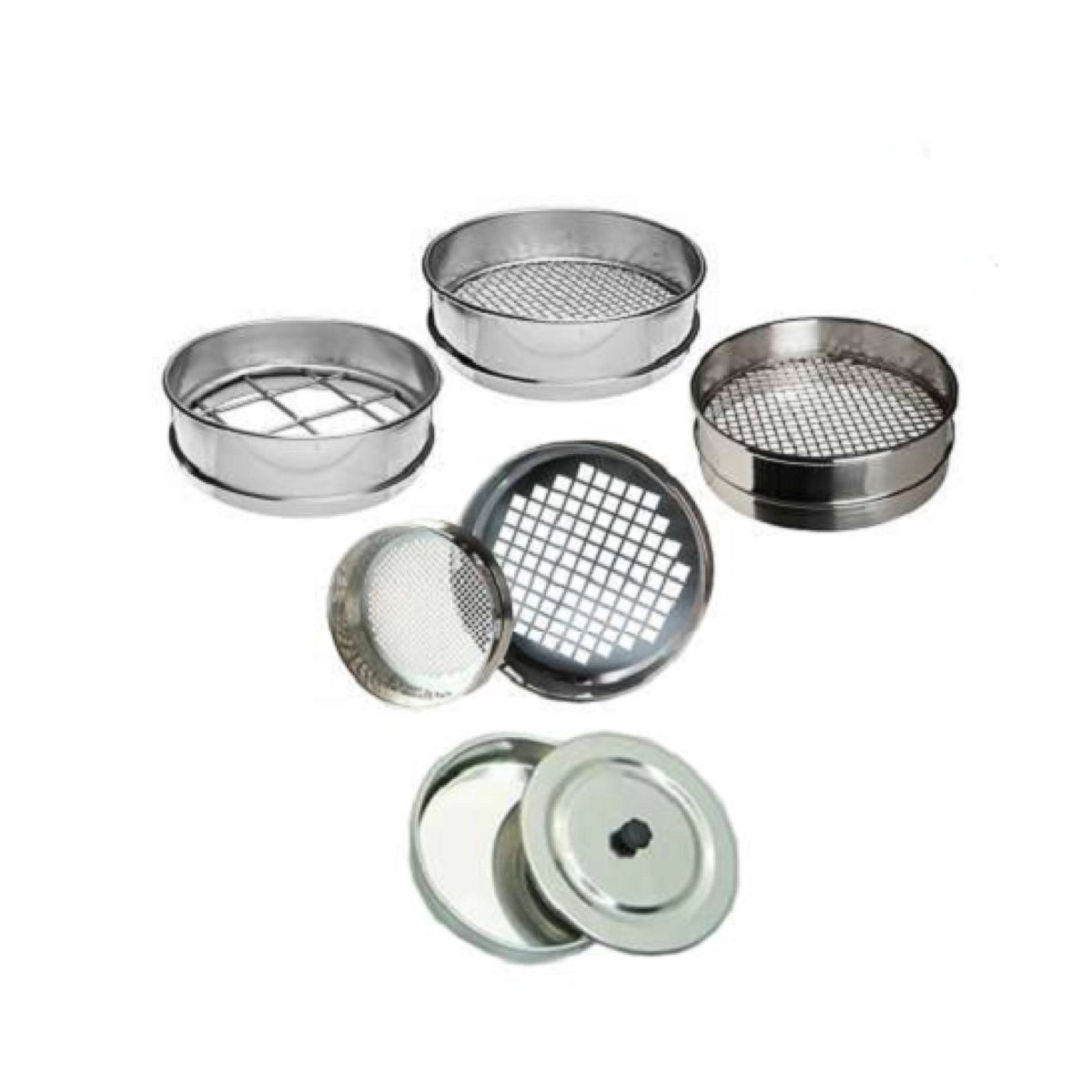

AZA 0923 G. I. FRAME SIEVES 300 & 450 MM DIA (POWDER COATED)

Description

AZA 0923 G.I. Frame Sieves: Robust & Reliable for Large-Scale Particle Analysis by Azalab

The Azalab AZA 0923 G.I. Frame Sieves are heavy-duty, high-performance test sieves specifically designed for the demanding requirements of particle size distribution analysis of coarse aggregates, soils, and other bulk materials. Available in larger standard diameters of 300 mm and 450 mm, these sieves feature galvanized iron (G.I.) frames that are further enhanced with a durable powder coating. This combination ensures superior strength, excellent corrosion resistance, and longevity, making them an ideal choice for civil engineering, construction, mining, and quality control laboratories across India where robust and cost-effective sieving solutions are crucial.

The Strength of G.I. Frames with AZA 0923 G.I. Frame Sieves

While brass frames are common for smaller sieves, larger diameter sieves, especially those used for bulk materials like aggregates, require exceptional rigidity and durability. This is where the galvanized iron frame of the AZA 0923 G.I. Frame Sieves excels:

• Galvanized Iron (G.I.) Frame: The core frame is made of steel, which is then hot-dip galvanized. This process applies a protective zinc coating that acts as a sacrificial layer, providing excellent resistance against rust and corrosion, even in humid or harsh environments often encountered in construction sites and material handling.
• Powder Coated Finish: Adding an extra layer of protection, the G.I. frame is meticulously powder coated. This involves applying a dry powder (a type of plastic or resin) electrostatically and then curing it under heat. The result is a tough, durable, and aesthetically pleasing finish that offers:
  • Enhanced Corrosion Resistance: An additional barrier against moisture and chemicals.
  • Superior Scratch & Abrasion Resistance: Protects against wear and tear during handling and vigorous shaking.
  • Improved Aesthetics: A smooth, uniform, and attractive finish.
• Inherent Strength & Rigidity: G.I. frames provide significantly higher structural integrity and rigidity compared to brass frames of similar dimensions, making them less prone to deformation under heavy loads or during intensive mechanical sieving. This ensures the precise geometry of the sieve remains consistent over time.

These features make the AZA 0923 sieves particularly well-suited for sieve analysis of coarse materials, ensuring reliable and repeatable results for quality control and material classification.

Key Features of the AZA 0923 G.I. Frame Sieves for Demanding Applications: Azalab’s AZA 0923 G.I. Frame Sieves are engineered for performance, longevity, and compliance:

• Robust Galvanized Iron Frame: Provides superior structural strength, durability, and inherent corrosion resistance for heavy-duty applications.
• Durable Powder Coating: Offers enhanced protection against environmental factors, abrasion, and chemicals, extending the sieve’s lifespan and maintaining its appearance.
• Standard Large Diameters: Specifically available in:
  • 300 mm (12-inch) diameter: Ideal for larger sample sizes, commonly used for aggregates and bulk materials.
  • 450 mm (18-inch) diameter: Suitable for very large samples or when a wider sieving surface area is preferred, often for field labs or high-volume testing.
• Precision Woven Mesh: The sieving media consists of high-quality stainless steel or phosphor bronze woven wire cloth. This mesh is manufactured to stringent aperture tolerances as per international standards (e.g., IS 460, ASTM E11, ISO 3310-1), ensuring accurate and consistent particle separation.
• Wide Range of Aperture Sizes: Available in a comprehensive range of mesh openings, from coarse sizes (e.g., 100 mm, 75 mm, 63 mm, etc.) down to finer sizes (e.g., 4.75 mm, 2.36 mm, 1.18 mm, etc.), catering to all aggregate and soil gradation requirements.
• Seamless Construction: Frames feature smooth, seamless construction to prevent material entrapment in crevices, facilitating easy cleaning and minimizing cross-contamination.
• Stackable Design: Engineered to stack perfectly and securely with other sieves of the same diameter, enabling efficient multi-sieve analysis, whether used manually or with large-capacity sieve shakers.
• Individual Identification: Each sieve is clearly marked with its nominal aperture size and a unique serial number for full traceability.

Diverse Applications and Standards Compliance in the Indian Context: The Azalab AZA 0923 G.I. Frame Sieves are critical in various industries across India:

• Civil Engineering & Construction: Particle size analysis of coarse and fine aggregates for concrete mixes, asphalt pavements, road bases, and sub-bases. Also for soil classification (e.g., as per IS 2720 Part 4) and embankment material quality control.
• Mining & Quarrying: Grading of crushed stone, gravel, sand, and other mined materials.
• Concrete & Cement Industry: Quality control of raw materials and finished products.
• Geotechnical Laboratories: For granular material characterization.

These sieves are manufactured and tested to conform to rigorous national and international standards, ensuring the reliability and universal acceptance of test results:

• IS 460 (Part 1):1972 (Reaffirmed 2021): Indian Standard Specification for Test Sieves (General requirements for sieves of metal wire cloth).
• IS 2720 (Part 4):1985 (Reaffirmed 2021): Indian Standard Method for Determination of Grain Size Analysis (Sieve Analysis) for soils.
• ASTM E11: Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves.
• ISO 3310-1:2016: Test sieves – Technical requirements and testing – Part 1: Test sieves of metal wire cloth.

Azalab’s Commitment to Quality and Durability: Azalab is dedicated to providing high-quality, precise testing equipment that withstands the rigors of field and laboratory environments. The AZA 0923 G.I. Frame Sieves reflect our commitment to robust construction, accuracy, and user satisfaction. We understand the critical role of accurate aggregate and soil gradation in ensuring the performance and longevity of civil infrastructure projects. Our sieves are engineered to meet the stringent demands of modern testing laboratories in India and globally, backed by comprehensive customer support and adherence to the highest manufacturing standards.

Further Information and Resources: For detailed guidelines on sieve analysis procedures, selection of appropriate sieve sets, and interpretation of results, users should refer to relevant industry standards, laboratory manuals, and consult with Azalab’s technical support team.

Specifications:

• Model: AZA 0923
• Product Type: Test Sieves (for Particle Size Analysis)
• Frame Material: Galvanized Iron (G.I.) with Durable Powder Coating.
• Mesh Material: Precision Woven Wire Cloth (typically Stainless Steel or Phosphor Bronze).
• Available Diameters: 300 mm (12 inches) and 450 mm (18 inches).
• Available Aperture Sizes: Comprehensive range from coarse (e.g., 100 mm, 75 mm, 63 mm) down to finer sizes (e.g., 4.75 mm, 2.36 mm, 1.18 mm, 600 micron, etc.). A full list of aperture sizes is available upon request.
• Frame Height: Available in various heights (e.g., full height, half height) to suit specific test requirements and shaker compatibility.
• Construction: Seamless frame construction for easy cleaning and material flow.
• Stackability: Designed for stable and secure stacking for multi-sieve analysis.
• Standards Compliance: IS 460 (Part 1 & 2), ASTM E11, ISO 3310-1, and relevant IS 2720 parts.
• Traceability: Each sieve individually marked with nominal aperture size and unique serial number.
• Country of Origin: Made in India.
• Intended Use: Dry sieving, compatible with mechanical sieve shakers or manual methods for bulk materials.

FREQUENTLY ASKED QUESTIONS (FAQ):

• Q: What is the main advantage of G.I. frames over brass frames for these sieves?
  • A: G.I. frames offer superior strength, rigidity, and enhanced corrosion resistance (especially with powder coating), making them more durable and suitable for heavy-duty applications and larger sample volumes.
• Q: What sizes are available for the AZA 0923 G.I. Frame Sieves?
  • A: They are specifically available in standard diameters of 300 mm (12 inches) and 450 mm (18 inches).
• Q: What materials are typically tested using these sieves?
  • A: They are primarily used for particle size analysis of coarse aggregates, gravel, coarse soils, and other bulk granular materials.
• Q: Do these sieves comply with Indian Standards?
  • A: Yes, they are manufactured to comply with IS 460, and are suitable for tests as per IS 2720 Part 4. They also comply with ASTM E11 and ISO 3310-1.
• Q: What is the benefit of the powder coating?
  • A: Powder coating enhances corrosion resistance, provides superior scratch and abrasion resistance, and offers a durable, aesthetically pleasing finish.
• Q: Can these sieves be used with mechanical sieve shakers?
  • A: Yes, the 300 mm and 450 mm sieves are compatible with larger-capacity mechanical sieve shakers designed for these diameters.
