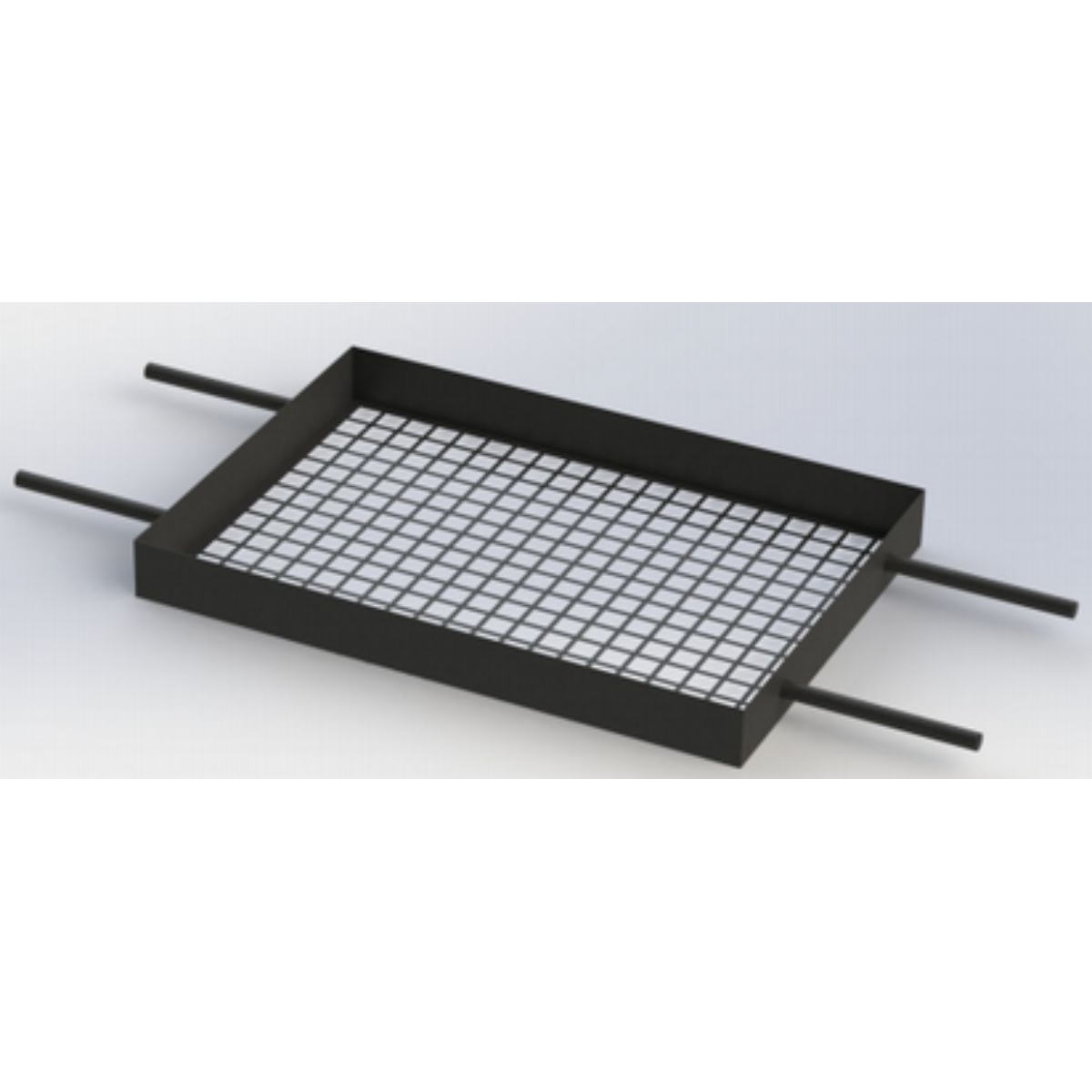

BALLAST SIEVE – 100 x 70 x 10 cm – 65 mm ( AZA -1299)
The AZA LAB Ballast Sieve Series is designed for the efficient separation, classification, and inspection of railway ballast and coarse aggregates. These sieves are fabricated using heavy-duty steel frames and precision-cut mesh, suitable for demanding environments in both field and laboratory settings.
Each sieve is dimensionally standardized at 100 x 70 x 10 cm, with a custom mesh opening specific to grading needs: 65mm, 40mm, 20mm, and 41.50mm.
These units are ideal for use by railway contractors, quality control labs, construction material testing authorities, and civil engineering departments.
Applications:
- Railway ballast size grading
- Aggregate separation for construction quality control
- Material classification in civil engineering labs
- On-site ballast inspection by railway authorities
Description
Technical Specifications:
| Parameter | Details |
|---|---|
| Overall Size | 100 x 70 x 10 cm (L x W x H) |
| Sieve Opening Size | 65 mm (square aperture) |
| Frame Material | Mild Steel / Galvanized Steel / Powder-Coated Steel (custom options available) |
| Mesh Material | High-Strength Mild Steel / Stainless Steel (optional) |
| Welding | Fully welded frame for rigidity |
| Finish | Anti-corrosive industrial paint / powder coating |
| Weight | Approx. 25–30 kg |
| Usage | Manual or mechanical vibration compatible |
| Stackable Design | Yes (for multi-level grading) |
| Handles | Optional lifting handles on request |
-
Heavy-duty construction to withstand large aggregate impact
-
Accurate mesh sizing for precise material separation
-
Easy to clean and maintain
-
Long-lasting finish to prevent rust and wear
-
Stackable for use with other sieve sizes (e.g., 40mm, 20mm, 41.50mm)
-
Custom sizes and mesh openings available upon request
-
Product Mesh Opening Code AZA LAB Ballast Sieve – 65mm 65 mm AZA-1299 A AZA LAB Ballast Sieve – 40mm 40 mm AZA-1299 B AZA LAB Ballast Sieve – 20mm 20 mm AZA-1299 C AZA LAB Ballast Sieve – 41.50mm 41.50 mm AZA-1299 D
