Car Steering Trainer (Model AZA1248)

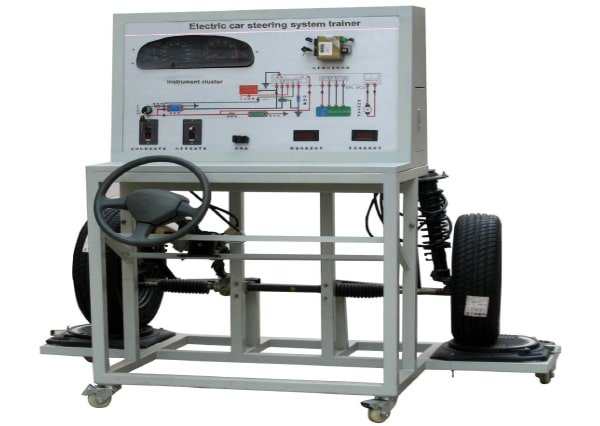

The A Z A LAB Car Steering Trainer (Model AZA1248) is a comprehensive training tool designed to demonstrate the working of a real vehicle steering and suspension system. It features front-wheel assemblies, a MacPherson strut, and a power steering rack mounted on a mobile steel frame for easy demonstration and learning.

Category:
Description

Description

The A Z A LAB Car Steering Trainer (Model AZA1248) is built to provide a realistic hands-on learning experience for automotive students. Featuring a fully functional steering and suspension system, this trainer is ideal for group demonstrations. The system includes front-wheel assemblies, a MacPherson strut and coil spring, road wheels, and a power steering rack, all mounted on a durable, mobile steel frame.

Students can disassemble, inspect, and reassemble components such as the rack and pinion steering gear, power steering pump, and hub carrier assemblies. The trainer is also equipped with a 1.5kW steering motor and pressure gauges for diagnosing and adjusting power steering fluid levels, pump belts, and track rod ends. It’s an invaluable tool for teaching everything from basic steering system inspections to advanced power steering diagnostics and repairs.

Features
  • Fully operational steering and suspension system for demonstration
  • Mobile steel frame for easy transportation and group instruction
  • Disassemble and reassemble rack and pinion steering gear
  • Diagnose and repair power steering system components
  • Inspect and adjust track rod ends, bushings, dampers, and wishbones
  • Includes power steering pump, steering motor, and pressure gauges for realistic diagnostics
  • Ideal for classroom or workshop training environments
Specifications
Component Details
Model AZA1248
Motor Power 1.5 kW
Power Supply AC220V/50Hz
System Components Front suspension, steering motor, power steering pump, wheel assemblies, pressure gauges
Frame Mobile steel stand for easy movement
Dimensions (L x W x H) 2000 x 1100 x 1300 mm
Weight 130 kg
