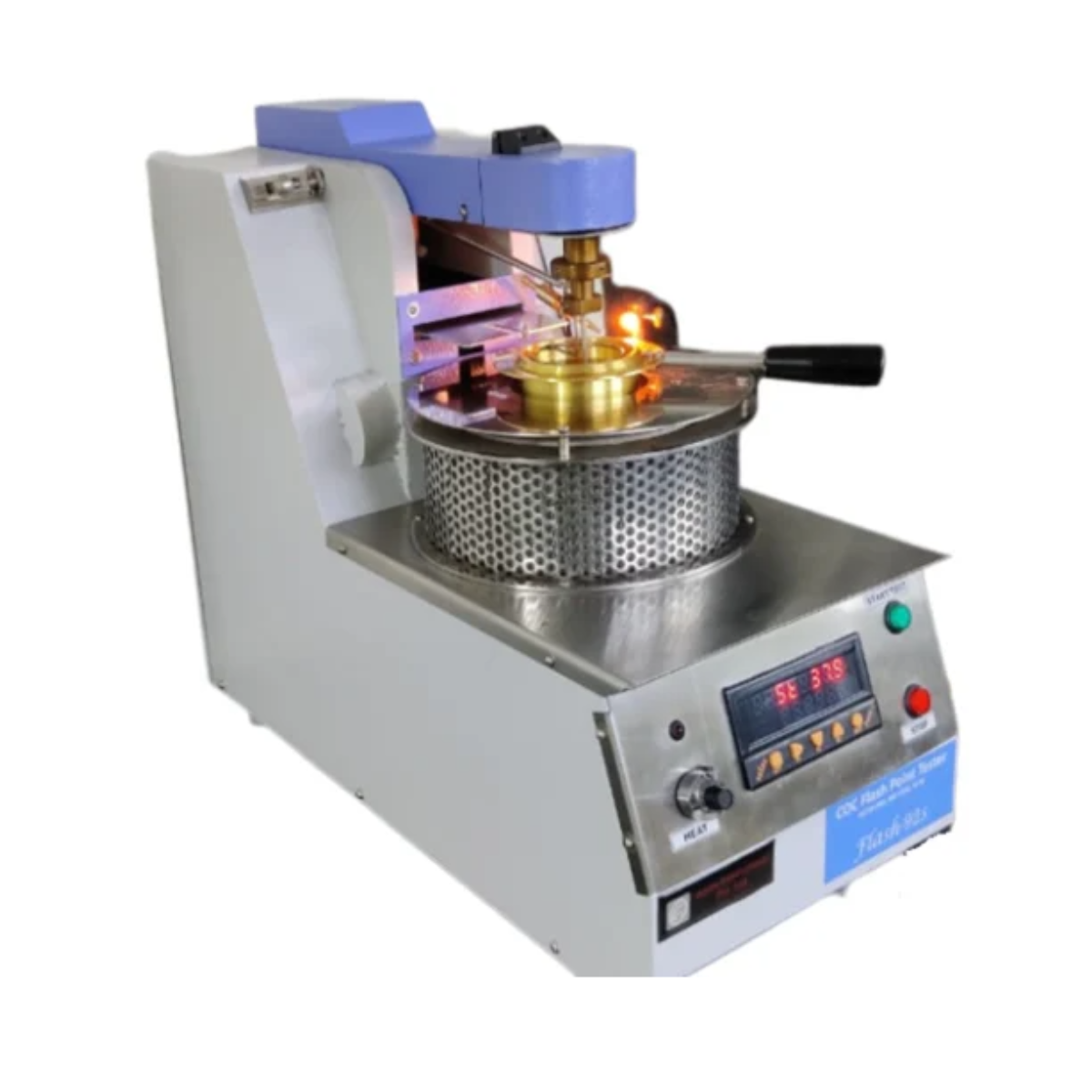

SEMI AUTOMATED CLEVELAND OPEN CUPFLASH POINT ANALYZER(AZA‑1289)
The AutoFlash‑92 is a fully automated, microcontroller-based flash point tester designed for precise determination of flash and fire points in viscous and petroleum-based products. It conforms to ASTM D92, ISO 2592, IP 36, IS 1448 (P:69), and allows testing of materials with flash points between 79 °C and 400 °C, excluding fuel oils. The instrument also captures the fire point—the temperature where sustained combustion occurs—for a minimum of 5 seconds
Description
Why Choose the AutoFlash‑92?
-
Fully automated operation ensures high repeatability and user simplicity.
-
Versatile flash-point testing with multiple heat rate modes and igniter flexibility.
-
Best-in-class safety with auto extinguishing, sensor interlocks, and over-temp protection.
-
Accurate environmental compensation, including pressure correction and calibrated temperature readings.
-
Ideal for viscous petroleum sample testing, with industrial-grade robustness and unattended capability.
-
Automated operation with an 8.4″ touchscreen, easy one-click start, and audible alerts on completion
-
Rapid heating modes: Standard, rapid, or user-defined rates (1–20 °C/min)
-
Versatile ignition: Switch easily between gas or electric igniter sources
-
Unknown sample detection: Built-in “search” mode to automatically locate flash point in unmarked samples
-
Safety & precision: Automatic barometric pressure correction and comprehensive interlocks ensure reliable operation
-
Power: 230 VAC, 50 Hz, 1.5 kW
-
Heating: 1000 W coil heater (230 V) with precise thermal profiling
-
Cooling: Integrated centrifugal blower (56.5 CFM) for rapid cooldown
-
Measurement: PT100 Class A sensors on sample (0–400 °C) and bath (0–500 °C); ionization ring flash detection; ambient pressure range: 700–1100 hPa
-
Dimensions & Weight: W 410 × D 420 × H 330 mm; approx. 16 kg
-
Environmental: Operational in 10–35 °C at ≤80% RH
Related products
AutoFlash – Automated Abel Flash Point Analyzer( AZA 1277)
AZA Lab's AutoFlash-1277 is a fully automated, microcontroller-based Abel Flash Point Analyzer designed to accurately determine the flash points of combustible liquids. Conforming to IP 170, ISO 13736, and IS 1448 (P:20) standards, it ensures precise and safe analysis of samples in the temperature range of -30°C to 70°C, extendable up to 110°C.
Equipped with a built-in PC and touchscreen display, the AutoFlash-170 delivers intuitive operation, automated calibration, advanced ignition options, and rapid heating procedures for high-efficiency testing. Ideal for laboratories, petrochemical industries, and quality control applications, this standalone unit streamlines the testing process with enhanced accuracy, safety interlocks, and programmable procedures.
AutoFlash- Automated ABEL Flash Point Analyzer (AZA 1278)
The AutoFlash-1278 is a fully automated, microcontroller-based ABEL Flash Point Analyzer, specifically designed for the determination of the flash point of combustible liquids. It conforms to IP 170, ISO 13736, and IS 1448 (P:20) standards, ensuring high precision and repeatability.
It determines flash points within a temperature range of -30°C to 70°C, and can be extended to 110°C for specialized applications. The device is ideal for laboratories handling petroleum products, quality control, R&D, and regulatory compliance.
Dist‑86S Semi‑Automated Distillation Analyzer (AZA 1283)
Standards & Methods
- ASTM D86, D850, D1078
- ISO 3405, IP123, IP195
- JIS K2254, IS 1448 P:18
Fully Automated Atmospheric Distillation Analyzer (AZA 1287)
Oil & Gas Sampling Cylinders Single End with Dip Line (AZA- 1274)
AZA LAB Sampling Cylinders & Gas Sampling Bombs are robust, high‑pressure vessels engineered for safe, reliable collection, storage, and transport of liquids and gases in demanding industrial environments. Available in single‑ended, double‑ended, and flat‑ended variants, they are constructed from premium materials like stainless steel (304/316 L) and Monel, offering corrosion resistance and durable performance . TPED, CE, and ISO certifications ensure compliance with international safety and transport regulations. Each cylinder features precision-engineered NPT connections (¼″ or ½″), customizable volumes from 150 cc to 10 L, and pressure ratings up to 5000 psig, making them ideal for applications in refineries, petrochemical labs, chromatographic analysis, and gas sampling in high‑pressure systems . Hydrostatic testing guarantees reliable integrity under rigorous conditions, while additional options—such as specialized valves, burst discs, dip tubes, and protective carrying cases—allow for tailored configurations to meet specific sampling needs.
Precision Automated Distillation Analyzer (AZA 1281)
AutoDist‑86 is a fully automated, programmable distillation system built on microcontroller/PC control with Peltier condenser cooling. It’s ideal for ASTM D86, D850, D1078, D189, ISO 3405, IP123, IP195, JIS K2254, IS 1448 P:18 methods. Suitable for analysis of gasoline, kerosene, diesel, solvents, oils, and aromatics under atmospheric pressure.
Semi‑Manual Distillation Analyzer(AZA 1286)
Dimensions & Power Requirements
-
Size: 50 × 65 × 65 cm, Weight: 40 kg
-
Electrical: 230 VAC, 50 Hz, 800 W power consumption
STAINLESS STEEL COC CLEVELAND OPEN CUP FLASH POINT ANALYZER (AZA 1293)
A programmable, fully automated microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer, conforming to:
-
Standards: ASTM D92, ISO 2592, IS 1448 (P:69), IP 36
Applicable for all petroleum products (primarily viscous materials) with flash points above 79°C and below 400°C (excluding fuel oils).
Also used to determine fire point – the temperature above flash point at which the test specimen supports combustion for at least 5 seconds.
OPERATING REQUIREMENTS:
-
Power Supply: 230V, 50Hz, 1500W
-
Dimensions: W: 410mm × D: 420mm × H: 330mm
-
Weight: 16 kg
-
Ambient Conditions: 10–35°C; RH 80% at 35°C
