Cut Model of Automatic Transmission System
Click to enlarge
Car Steering Trainer
Car Steering Trainer (Model AZA1248)
Back to products
Cut Model of Planetary Gear System
LAB Cut Model of Planetary Gear System (Model AZA 1250)

Cut Model of Automatic Transmission System (Model AZA 1249)

The A Z A LAB Cut Model of Automatic Transmission System (Model AZA1249) is a detailed, sectioned training model of an automatic car transmission, ideal for educational purposes. It allows students to clearly understand the internal mechanisms, including torque converters, planetary gears, and clutches, all mounted on a sturdy frame.

Category:
Description

Description

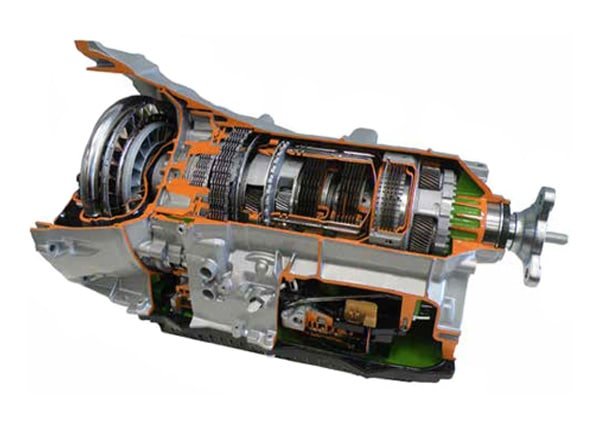

The A Z A LAB Cut Model of Automatic Transmission System (Model AZA1249) offers an in-depth view of a hydraulic automatic transmission system, meticulously sectioned for training purposes. Built from a full-size, original car transmission, this model features clearly labeled components, including the torque converter, planetary gear set, clutches, and hydraulic oil system.

Designed to make learning easier, the transmission’s internal mechanisms are highlighted using a color-coded scheme, aiding in the quick identification of systems and parts. The model is mounted on a durable tubular frame, ensuring mobility and easy classroom demonstration. Chromium plating and galvanization provide longevity, and special color painting enhances the visibility of the sectioned areas. This trainer allows instructors to explain the automatic shifting of gears with hands-on clarity, making it an essential tool for automotive education.

Features
  • Mounted on a robust tubular frame for easy movement
  • Full-size original automatic transmission system used
  • Color-coded components for easy identification
  • Sectioned view of torque converter, planetary gears, and clutches
  • Durable chromium-plated and galvanized parts for long-lasting use
  • Electroplated gears and hardware for enhanced durability
  • Manual operation via hand crank applied to the torque converter
Specifications
Component Details
Model AZA 1249
Transmission Type Hydraulic Automatic
Torque Converter Included
Gear Change 5 forward speeds plus reverse
Clutches Multiple-plate clutches
Operation Manual hand crank applied on torque converter
Frame Tubular frame with wheels
Dimensions (L x W x H) 750 x 550 x 700 mm
Weight 110 kg

Reviews

There are no reviews yet.

Be the first to review “Cut Model of Automatic Transmission System (Model AZA 1249)”

Your email address will not be published. Required fields are marked *
