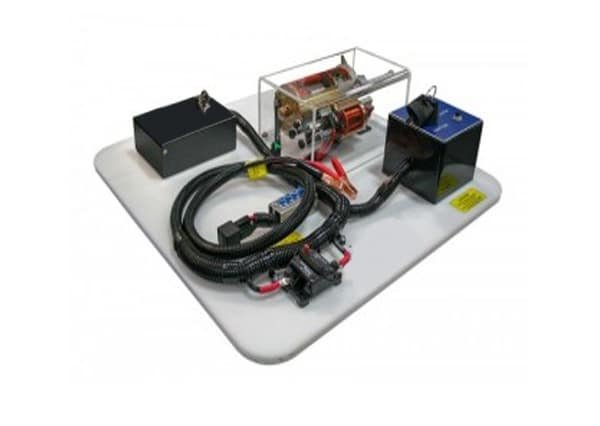

Cut Model of Self-Starting System (Model AZA 1251)
The A Z A LAB Cut Model of Self-Starting System (Model AZA1260) offers a fully functional demonstration of an automotive starting system, showcasing key components and internal mechanisms. Ideal for educational settings, this cutaway model enhances learning with real-world components and live operation.
Description
The A Z A LAB Cut Model of Self-Starting System (Model AZA1260) is designed to provide students and instructors with a detailed, hands-on learning experience about the operation of automotive starting systems. This fully functional cutaway model uses real-world components to demonstrate how a starter works, cranking an internal combustion engine to initiate its self-sustaining operation.
The model features a clear Plexiglas enclosure for safety, allowing students to observe internal components during live operation. Additionally, it includes a fault box with four operational faults that can be inserted for diagnostic testing, enabling students to practice troubleshooting. Powered by a 12V battery or jump box, this training model is perfect for classroom demonstrations and practical learning.
- Fully Functional Cutaway Starter: Provides real-world observation of internal components while operating.
- Safe and Transparent Design: Enclosed in Plexiglas for safety during live demonstrations.
- Educational Focus: Demonstrates starter planetary gear reduction and basic starting circuit operation.
- Diagnostic Training: Equipped with a fault box allowing students to test and verify starting circuits with up to four faults.
- Hands-on Learning: The starter solenoid can be bridged with a remote starter switch for further experimentation (remote starter switch not included).
| Component | Details |
|---|---|
| Model | AZA1260 |
| Starter | Cutaway, fully functional |
| Power Supply | 12V battery or jump box |
| Safety | Enclosed in Plexiglas |
| Fault Box | 4 operational faults for diagnostic training |
| Switches | Ignition switch, clutch switch, relay |
| Dimensions (L x W x H) | 550 x 400 x 300 mm |
| Weight | 20 kg |
