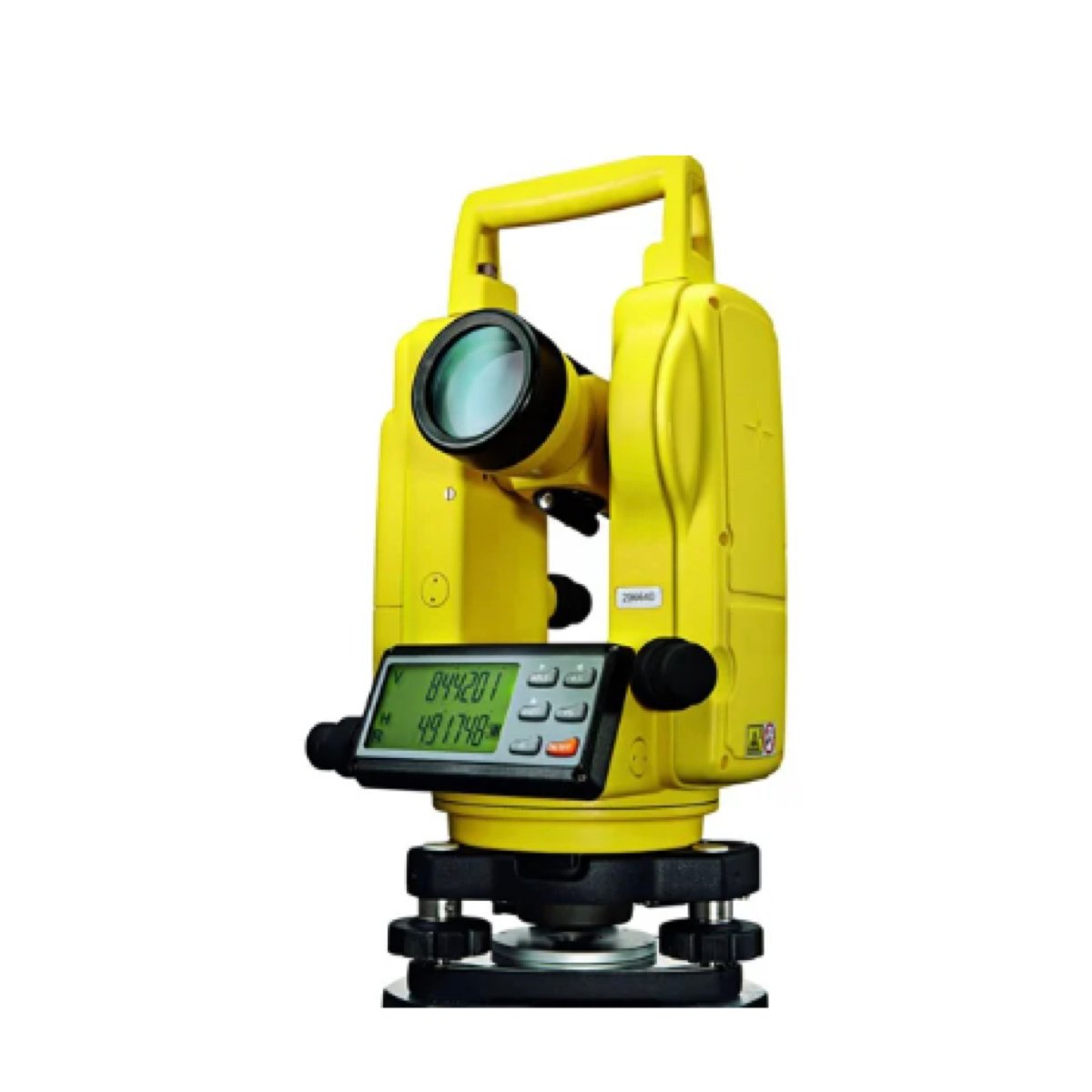

AZA 1027 ELECTRONIC THEODOLITE

Description

The electronic theodolite is a high-precision instrument used in civil engineering, surveying, and construction for measuring horizontal and vertical angles with exceptional accuracy. Azalab offers a rugged and technologically advanced theodolite designed to meet the needs of professionals in the field, delivering accuracy, stability, and digital convenience.

Precision Redefined in Field Survey

An essential tool for topographic surveys, layout tasks, and structural alignment, the Azalab Electronic Theodolite is equipped with high-resolution angle encoders that minimize reading errors. Whether you are setting out a building foundation or checking alignment on bridges, this digital tool ensures unmatched precision.

Its optical plummet and dual-axis compensators provide consistent performance even on uneven terrain. Angular accuracy often reaches 2″ to 5″ seconds, depending on the model, making it perfect for tasks that demand tight tolerances.

Intuitive Digital Interface

Unlike manual optical theodolites, the electronic version features a digital LCD display that shows angle readings directly, eliminating the need for vernier readings or micrometer adjustments. The dual-display screen allows for easy operation from both sides of the instrument.

Key interface benefits include:

• Backlit LCD screen for low-light use

• Keyboard with soft-touch keys for quick setup

• Zero setting and hold functions for repeatability

• Internal battery status display

The combination of a clear interface and real-time data makes it user-friendly for both field experts and engineering students learning advanced measurement methods.

Rugged, Reliable Construction

Engineered to withstand field abuse, the theodolite body is built with dust-proof and splash-resistant housing (usually IP54 or better), ensuring it can handle rough environments. Its light weight and compact form make it portable and easy to carry between workstations.

Whether you’re working in a remote forest area, on rocky terrain, or in a dusty construction site, this theodolite maintains calibration and performance.

Versatile Applications

This surveying instrument finds use in several sectors, including:

• Civil engineering layout

• Construction alignment

• Topographic mapping

• Mining operations

• Tunnel and bridge construction

• Railway and road works

Additionally, it’s ideal for academic labs to train students in geospatial measurements, setting up traverses, and observing vertical structures.

Battery and Storage Features

Azalab’s theodolite comes with a rechargeable battery pack, delivering up to 16–20 hours of continuous operation. An internal memory unit stores multiple sets of observations, which can later be transferred to a PC using a standard data cable or optional Bluetooth connection (model-dependent).

This ensures efficiency in both data collection and documentation, especially useful for long-term projects or repetitive tasks on-site.

Calibration & Standards

Every Azalab Electronic Theodolite is factory-calibrated and conforms to:

• ISO/IEC 17025 for calibration standards

• BIS guidelines for measurement instruments

• Compatible with Survey of India and RITES project requirements

You can reference instrument calibration norms at nbcindia.gov.in or iso.org for additional guidance.

 Specifications:

 Frequently Asked Questions (FAQ):

Q1: What is the main use of an electronic theodolite?
A: It’s used to measure horizontal and vertical angles in surveying, construction layout, and alignment tasks.

Q2: Is the display readable in bright sunlight?
A: Yes, the backlit LCD ensures visibility in various lighting conditions.

Q3: Can I store and export measurement data?
A: Yes, it includes internal memory and a data port for exporting records.

Q4: Is calibration required before each use?
A: No, but periodic calibration is recommended for long-term accuracy.

Q5: Is it suitable for student labs?
A: Absolutely. It’s widely used in surveying labs in universities and polytechnic institutions.
