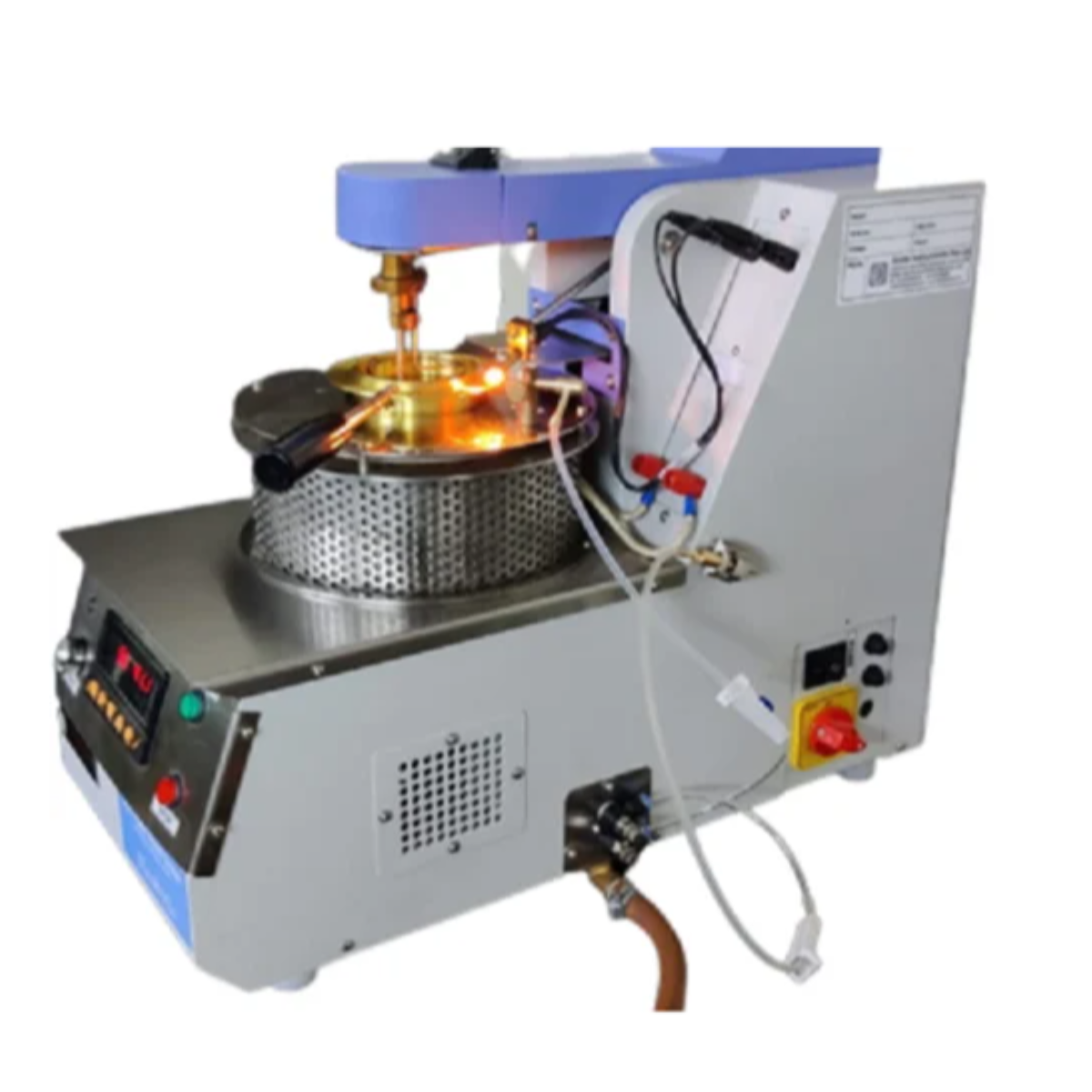

Flash-92s – Cleveland Open Cup Flash Point Analyzer(AZA 1291)
The Flash-92s is a robust and precise automatic Cleveland Open Cup Flash Point Analyzer designed for accurate flash point determination in accordance with ASTM D92, ISO 2592, IS 1448 (P:69), and IP 36 standards. Engineered for ease of use, safety, and reliable performance, it is suitable for a wide range of petroleum-based substances.
Complies With
- ASTM D92
- ISO 2592
- IS 1448 (P:69)
- IP 36
Description
System Specifications
| Feature | Description |
|---|---|
| Model | Flash-92s |
| Initialization | Igniter, shutter, and igniter mechanism checked during system startup |
| Cooling / Heating | Centrifugal Blower: 56.5 CFM, 35W @ 230 VAC; Coil Heater: 1000W @ 230 VAC |
| Heat Rate | Precise control via 10-turn potentiometer |
| Ignition | Electric/Gas igniter (interchangeable).• Electric Igniter – 4-step brightness• Gas Igniter – Pilot flame precision control |
| Test Modes | Automatic test within set range or manual test via push-button.Auto stop heating, igniter activates, flash detection with 3-beep alert, automatic shutter activation, and cooling starts |
| Lid Assembly | Integrated temperature sensor, flash detector, and igniter for smooth operation |
| Flame Extinguisher | Auto shutter system extinguishes flame by covering the cup |
| Parameter | Value |
|---|---|
| Width | 250 mm |
| Depth | 450 mm |
| Height | 320 mm |
| Weight | 12 Kg |
| Measurement | Specification |
|---|---|
| Sample Temperature | PT100, Class A glass sensor with digital indication; Thermometer interchangeable |
| Flash Detection | Ionization Ring and Buzzer — locks temperature reading upon flash point detection |
Related products
AutoFlash – Automated Abel Flash Point Analyzer( AZA 1277)
AZA Lab's AutoFlash-1277 is a fully automated, microcontroller-based Abel Flash Point Analyzer designed to accurately determine the flash points of combustible liquids. Conforming to IP 170, ISO 13736, and IS 1448 (P:20) standards, it ensures precise and safe analysis of samples in the temperature range of -30°C to 70°C, extendable up to 110°C.
Equipped with a built-in PC and touchscreen display, the AutoFlash-170 delivers intuitive operation, automated calibration, advanced ignition options, and rapid heating procedures for high-efficiency testing. Ideal for laboratories, petrochemical industries, and quality control applications, this standalone unit streamlines the testing process with enhanced accuracy, safety interlocks, and programmable procedures.

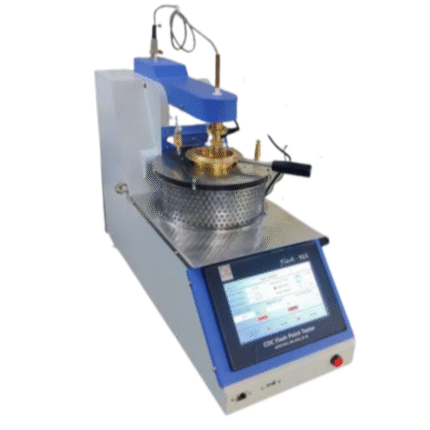

AutoFlash-92 – Automated Cleveland Open Cup Flash Point Analyzer(AZA 1292)
Standards Compliance
-
ASTM D92
-
ISO 2592
-
IS 1448 (P:69)
-
IP 36
| Parameter | Specification |
|---|---|
| Auto Calibration | Before each run, no calibration device needed |
| Sample Temp. | PT100 Class A, SS sheath; 0 to 400°C, resolution 0.1°C |
| Bath Temp. | PT100 Class A, Disk Type; 0 to 500°C |
| Flash Detection | Ionization Ring |
| Fire Detection | Thermal Sensor |
| Ambient Pressure | Built-in sensor; 700–1100 hPa (500–800 mmHg) |
Dist‑86S Semi‑Automated Distillation Analyzer (AZA 1283)
Standards & Methods
- ASTM D86, D850, D1078
- ISO 3405, IP123, IP195
- JIS K2254, IS 1448 P:18
Fully Automated Atmospheric Distillation Analyzer (AZA 1287)

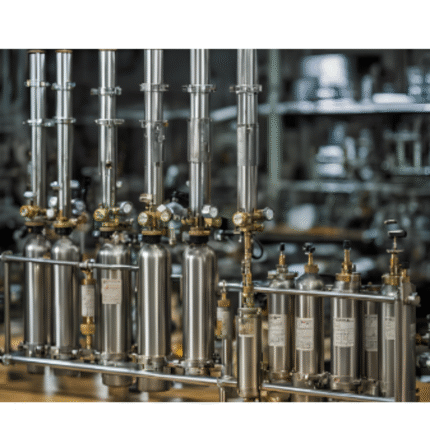

Oil & Gas Sampling Cylinders Single End with Dip Line (AZA- 1274)
AZA LAB Sampling Cylinders & Gas Sampling Bombs are robust, high‑pressure vessels engineered for safe, reliable collection, storage, and transport of liquids and gases in demanding industrial environments. Available in single‑ended, double‑ended, and flat‑ended variants, they are constructed from premium materials like stainless steel (304/316 L) and Monel, offering corrosion resistance and durable performance . TPED, CE, and ISO certifications ensure compliance with international safety and transport regulations. Each cylinder features precision-engineered NPT connections (¼″ or ½″), customizable volumes from 150 cc to 10 L, and pressure ratings up to 5000 psig, making them ideal for applications in refineries, petrochemical labs, chromatographic analysis, and gas sampling in high‑pressure systems . Hydrostatic testing guarantees reliable integrity under rigorous conditions, while additional options—such as specialized valves, burst discs, dip tubes, and protective carrying cases—allow for tailored configurations to meet specific sampling needs.
Semi-Automated Abel Flash Point Analyzer (AZA- 1275)
User Interface:
- Windows-based, user-friendly software
- Integrated PC and display
- USB ports for printer and peripherals
- Defective temperature sensors (bath/sample)
- Flash detector fault
- Igniter failure (electric)
Semi‑automated atmospheric distillation analyzer(AZA 1285)
The AutoDist‑86 by Aza Lab is a semi-automated desktop analyzer designed for petroleum-product distillation tests under atmospheric pressure. Compliant with major standards—ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195—it’s capable of accurately distilling hydrocarbon samples ranging from gasoline to diesel and aromatics
Semi‑Manual Distillation Analyzer(AZA 1286)
Dimensions & Power Requirements
-
Size: 50 × 65 × 65 cm, Weight: 40 kg
-
Electrical: 230 VAC, 50 Hz, 800 W power consumption
