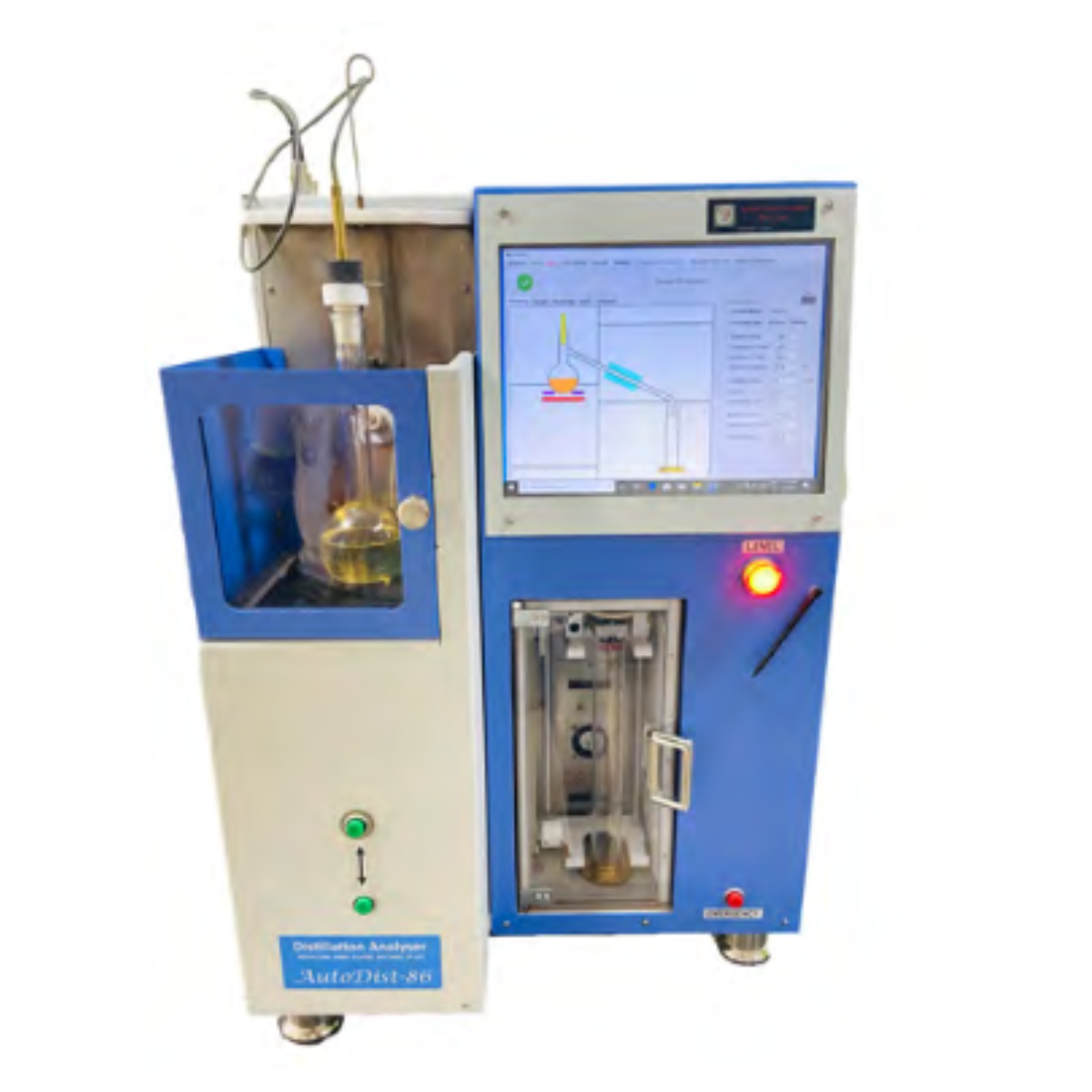

Fully Automated Atmospheric Distillation Analyzer (AZA 1287)
The AutoDist‑86 is a state-of-the-art, fully automated atmospheric distillation analyzer, meticulously designed for laboratories conducting rigorous testing of petrol, diesel, solvents, aromatics, kerosene, and other volatile hydrocarbons. Developed to precisely determine vapourization and boiling range characteristics—which are crucial for fuel performance, safety, and compliance—the AutoDist‑86 adheres to globally recognized standards such as ASTM D86, D850, D1078, ISO 3405, IP 123, and IP 195
Description
Flask Heater System
-
24 V low-voltage spiral heating coil with Ceran glass support
-
Automatic flask lift and forced-air cooling post-test
-
Automatic detection of flask setup and sensor placement
Condenser & Cooling
-
Version 3.0: Solid-state Peltier cooling on stainless-steel condenser (0–80 °C)
-
Version 2.0: CFC-free refrigerated cooling
-
PID-controlled with clean-condenser alert
Receiver Chamber
-
Non-corrosive receiver, with PID control (0–60 °C) and over-temp/door-open alarms
-
Optical volume tracking and automatic residue/loss calculations
Measurement & Calibration
-
Vapor temperature: PT100 Class A probe (0–450 °C, ±0.1 °C resolution)
-
Optical volume measurement (0.1 mL accuracy)
-
Programmable rate: 2–15 mL/min
-
Automatic boilerplate detection, method compliance, IBP, FBP, dry point
-
Automatic calibration of temperature and volume; barometric correction sensor
Safety Features
-
Built-in fire extinguisher triggered by IR sensor; automatic shutdown
-
Manual override switch; interlocks for heater lift and sensor faults
-
Power: 230 VAC, 50 Hz, 1.4 kW; Operating Temp: 10–35 °C
-
Size: 480 × 590 × 690 mm; Weight: ~80 kg
-
Real-time display: vapor, heater, condenser, receiver temps; heat %, rate, pressure, volume
-
Continuous data logging (every second, 0.1 mL resolution) with graphical plots
-
Final results: IBP, FBP, dry point, recovery, residue, loss, cetane index
-
Searchable database by sample/method/operator/date; exports for LIMS integration
