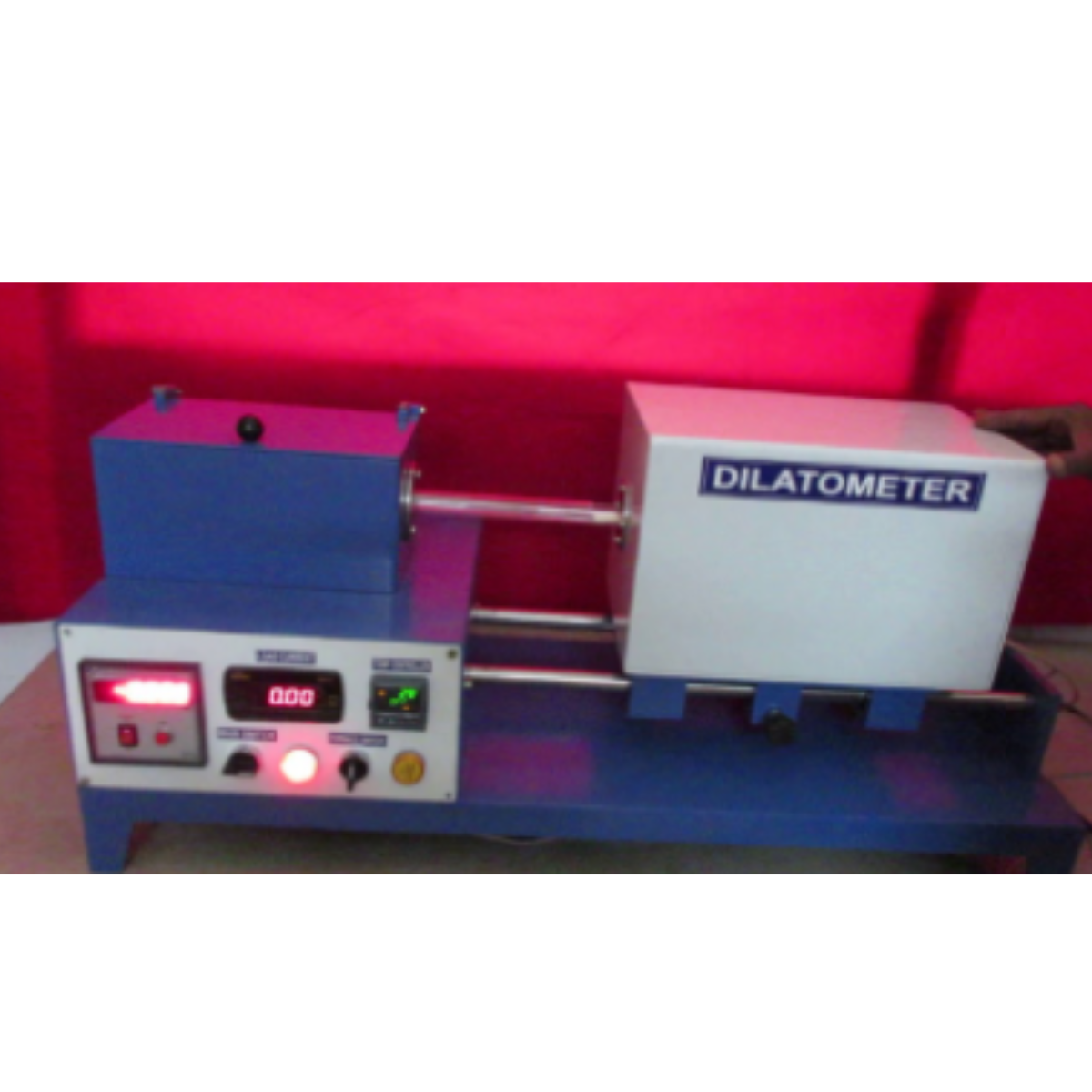

High-precision Thermal Expansion Measurement for Ceramics & Solids(AZA – 1269 A)
This high-performance Dilatometer is designed for the precise measurement of the coefficient of linear thermal expansion of ceramics, refractory materials, and related solid specimens at elevated temperatures up to 1400 °C. The system integrates a rugged furnace, accurate temperature control, and a sensitive LVDT-based expansion measuring system. Ideal for research, industrial QC, and materials development.
| Feature | Specification |
|---|---|
| Heating Element | High-quality Silicon Carbide element (I Squared R, USA) |
| Operation Power | 15 Amps / 230 V / AC |
| Maximum Temperature | 1400 °C |
| Continuous Operating Temp. | 1400 °C |
Description
KEY ADVANTAGES
-
Temperature up to 1400 °C
-
Highly accurate 1 µm resolution
-
Easy-to-use LabVIEW interface
-
Smooth furnace movement with guided rails
-
Industrial-grade safety and control systems
| Feature | Specification |
|---|---|
| Measurement Method | LVDT-based (German Make – MASSETRON) |
| Measuring Accuracy | 1 Micron |
| Readout | Digital + Computerized Interface |
| Software Platform | LabVIEW-based custom software for full automation |
| Computer & Output | Includes latest PC with inkjet printer |
| Measuring Range | 0 to 2000 Microns |
| Specimen Size | 10 × 10 × 45 mm ±2 mm |
| Probe & Tube | Recrystallized alumina for high-temperature compatibility |
| Calibration Certificates | a) LVDT Calibration |
| Feature | Specification |
|---|---|
| Temperature Controller | TAIE make PID programmable digital controller |
| Thermocouple | B-type, for high-temperature accuracy |
| Temperature Accuracy | ±1 °C |
| Safety Control | Non-indicating controller with air break magnetic contactor |
| Thyristor System | Phase angle controlled, with isolation transformer |
| Indicators | - Digital Ammeter |
