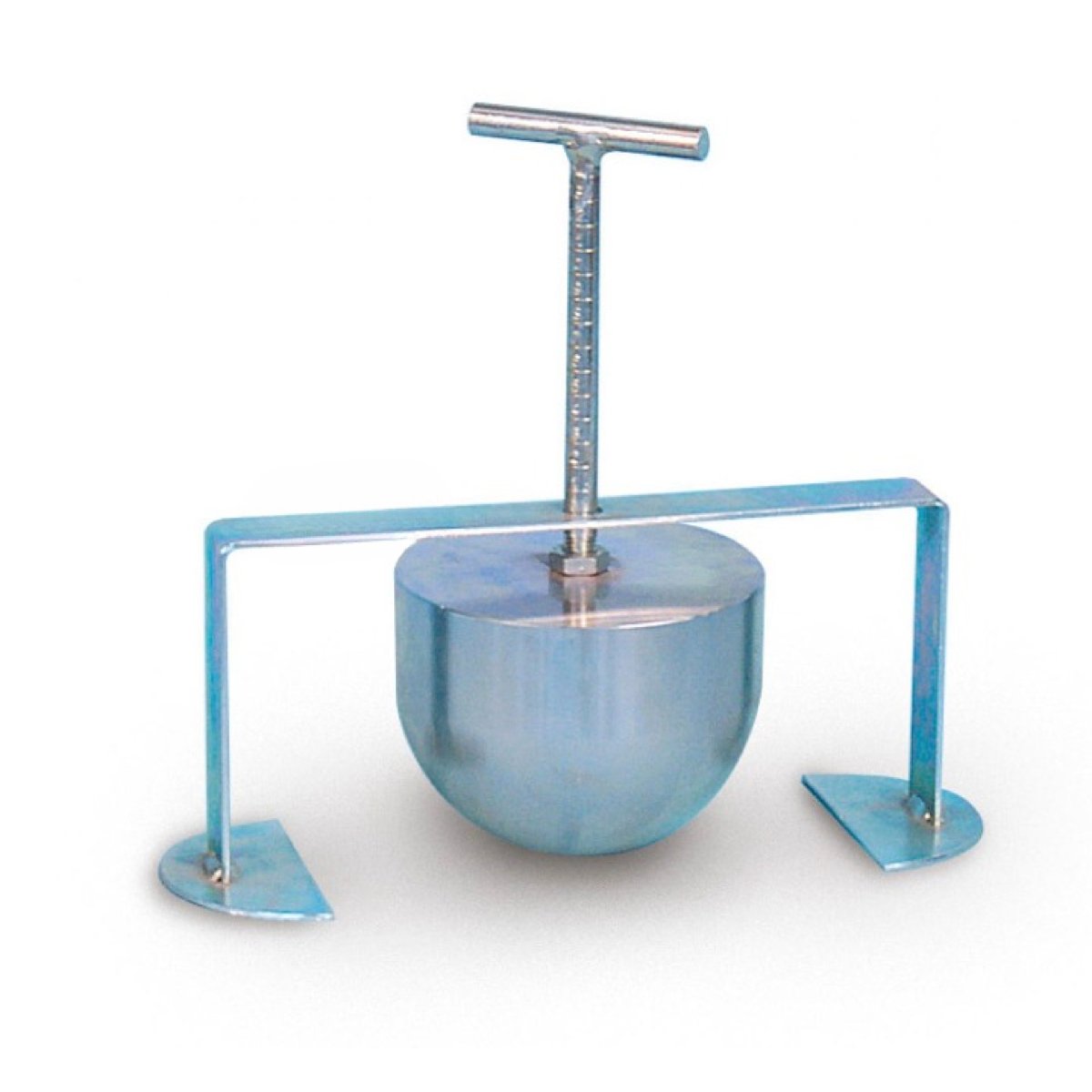

AZA 1106 KELLEY BALL PENETRATION APPARATUS

Description

AZA 1106 KELLEY BALL PENETRATION APPARATUS – For Concrete Workability Testing

Kelley Ball Penetration Apparatus AZA 1106 from Azalab is a precise and convenient device designed to evaluate the workability of fresh concrete through direct penetration measurement. This test is often regarded as a practical alternative to the slump test, especially in field conditions where a more direct assessment is needed.This value correlates with the workability or fluidity of the mix, offering reliable data without disturbing the sample like in a slump test.

The apparatus measures the depth of penetration of a standard steel ball into a fresh concrete surface. This value correlates with the workability or fluidity of the mix, offering reliable data without disturbing the sample like in a slump test.kelley ball penetration apparatus, AZA 1106, concrete workability test, penetration test apparatus, concrete tester.Kelley Ball Penetration Apparatus AZA 1106 tests concrete workability with precision. Ideal for field use. Shop online at Azalab for quality lab tools..

It is widely used in construction projects, R&D, and quality control labs that require consistent and repeatable results to maintain mix integrity and site efficiency.

🔧 Key Features & Benefits

• Portable design for quick field testing

• Direct measurement of workability through ball penetration

• Heavy-duty materials for durability and accuracy

• Standardized dimensions ensure compliance with ASTM C360

• Low maintenance and easy to use

The AZA 1106 is especially beneficial when comparing different concrete mixes under field conditions, as it gives a visual and measurable indication of the mix’s flowability and cohesiveness.

🧪 Testing Procedure

1. The apparatus is placed over the fresh concrete surface.

2. A steel ball weighing approximately 30 lbs (13.6 kg) is allowed to rest on the concrete.

3. The penetration depth of the ball is measured using the mounted scale.

This test gives a quantitative value of workability, and its simplicity makes it ideal for use where other tests may not be feasible.

🔗 External Resources (DoFollow Links)

• ASTM C360 – Standard Test Method for Ball Penetration in Freshly Mixed Hydraulic Cement Concrete

• Concrete Workability – The Constructor

• Comparison Between Slump and Kelley Ball Test

📊 Specifications

❓ Frequently Asked Questions (FAQ)

Q1: What is the Kelley Ball test used for?
A: It measures the workability of fresh concrete using the depth of penetration of a steel ball.

Q2: Is it more accurate than a slump test?
A: It offers a direct measurement and is often considered more consistent in certain field conditions.

Q3: What standards does it comply with?
A: It complies with ASTM C360, the recognized standard for this type of test.

Q4: Can this apparatus be used in the field?
A: Yes, it is designed for portability and ease of use on construction sites.

Q5: How do I clean and maintain it?
A: Wipe off any concrete residue and store in a dry place to avoid rusting of metallic parts.

Q6: Is it more accurate than a slump test?
A: It offers a direct measurement and is often considered more consistent in certain field conditions.

Q7: Can this apparatus be used in the field?
A: Yes, it is designed for portability and ease of use on construction sites.
