LAB Cut Model of Planetary Gear System (Model AZA 1250)

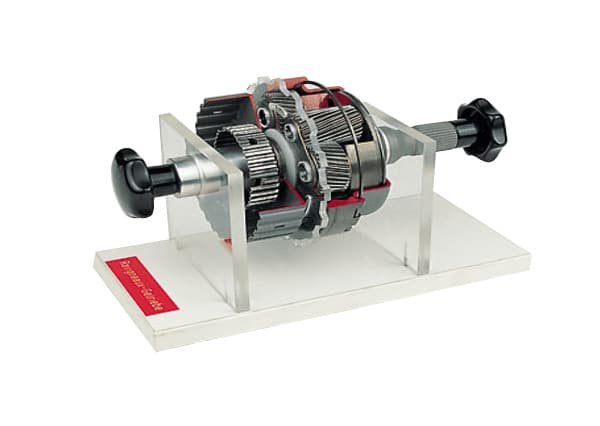

The A Z A LAB Cut Model of Planetary Gear System (Model AZA1250) offers a practical, detailed demonstration of planetary gear operation, perfect for engineering education. This fully functional, hand-powered model showcases the core principles of torque distribution, making it ideal for classrooms and training environments.

Category:
Description

Description

The A Z A LAB Cut Model of Planetary Gear System (Model AZA1250) provides a clear and instructive view of the working principles behind a planetary gear system, commonly found in automatic motorcar transmissions, shipbuilding, and turbines. This model allows students to explore the internal workings of planetary gears, with sun gears, planet gears, and ring gears in full visibility.

Designed for engineering teaching, this cutaway model is crafted from original industrial components and comes with practical drawings and technical descriptions, making it an excellent tool for understanding machine elements. The planet gears revolve around a centrally arranged sun gear, mounted on a planet carrier, and engage with an internally toothed ring gear, demonstrating how torque and power are distributed. The model is fully functional and hand-powered for demonstration purposes.

Features
  • Demonstrates the working principles of a planetary gear system
  • Ideal for understanding complex machine elements
  • Fully functional, hand-powered cutaway model
  • Built from original industrial components
  • Comes with technical descriptions and standards-compliant drawings for teaching
  • Mounted securely on a base plate with handles for easy transportation
  • Perfect for demonstrating engineering concepts in classrooms
Specifications
Component Details
Model AZA1250
Planetary Gear Components Sun gear, planet gears, ring gear
Drive Hand-powered
Mounting Base plate with handles
Functionality Fully functional cutaway model
Dimensions (L x W x H) 450 x 400 x 300 mm
Weight 10 kg
