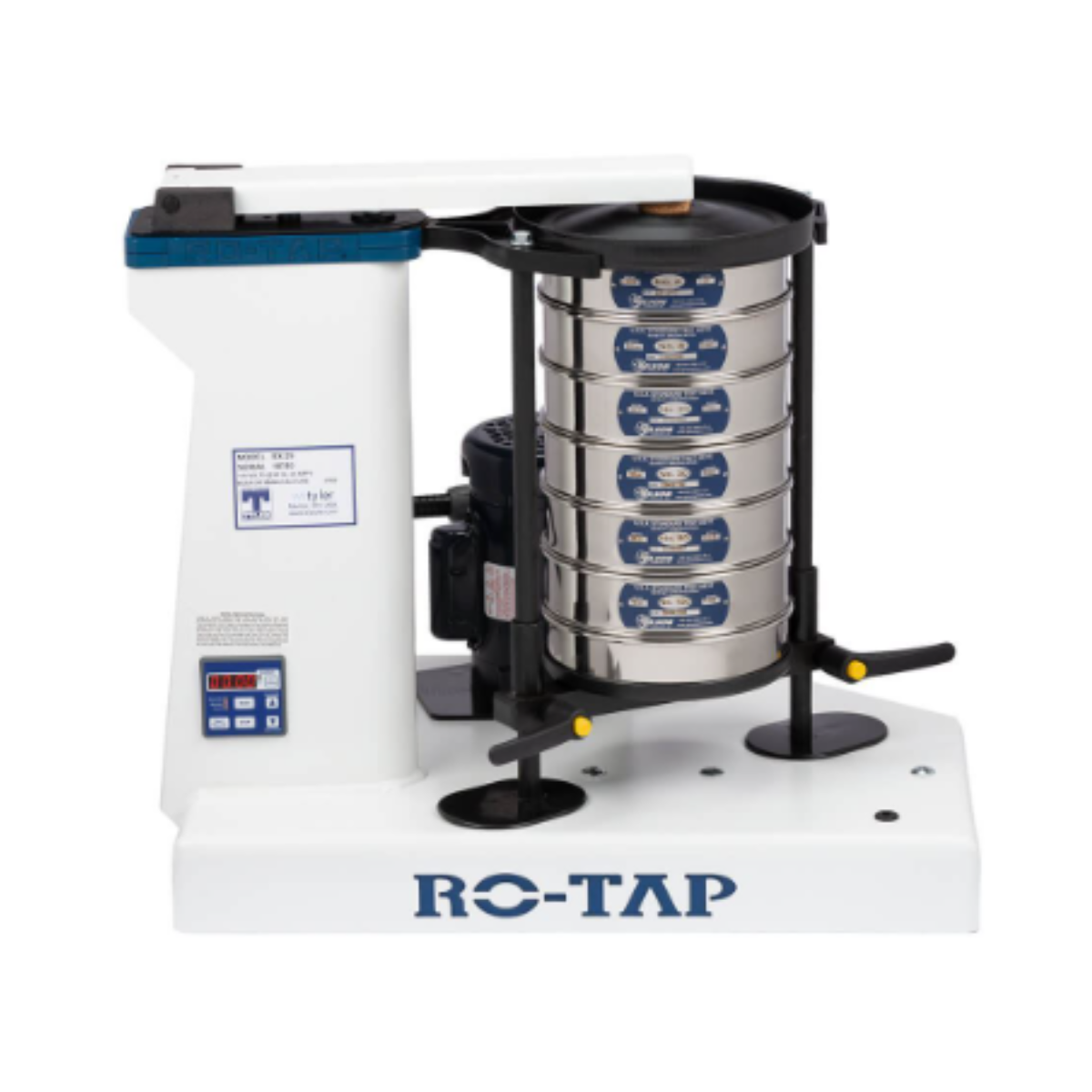

ROTAP SIEVE SHAKER (AZA 1302)
The AZA LAB ROTAP Sieve Shaker is a precision-engineered mechanical device designed for accurate particle size analysis in materials such as soil, sand, cement, aggregates, and powders. Combining rotary and tapping actions, it offers consistent, repeatable performance and complies with most national and international standards for sieve testing.
With rugged construction and intuitive operation, this shaker supports a wide range of test sieves and is suitable for demanding laboratory and industrial environments.
Description
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model Number | TM-159-20CM (For 20 cm dia sieves) |
| Motion Type | Rotational + Mechanical Tapping |
| Capacity | Up to 7–8 sieves (with lid and receiver) |
| Compatible Sieve Sizes | 20 cm and 30 cm diameter (model-specific) |
| Tapping Mechanism | Mechanical cam-operated tapping arm |
| Motor Type | Heavy-duty, continuous-rated motor |
| Timer | 0–60 minutes adjustable |
| Body Construction | Powder-coated steel or cast aluminum frame |
| Power Supply | 230V ± 10%, 50 Hz AC |
| Noise Level | < 70 dB |
| Dimensions (Approx.) | 435 x 350 x 320 mm |
| Weight | Approx. 35–40 kg (model-dependent) |
-
Dual-Action Motion:
Simultaneously performs a circular rotation and mechanical tapping to effectively separate particles and prevent clogging of sieves—mimics manual sieving with greater repeatability. -
Capacity:
Accommodates 7–8 standard test sieves (depending on sieve height), plus lid and receiver. -
Versatile Compatibility:
Available for both 20 cm and 30 cm diameter test sieves. -
Low Noise Operation:
Designed with noise-dampening features to maintain a quiet lab environment. -
Durable Construction:
Built with high-quality steel housing and a heavy-duty motor for long-lasting performance in daily lab use. -
Adjustable Timing & Controls:
Timer and speed controls for customized test cycles. -
User-Friendly Interface:
Plug-and-play setup with low maintenance requirements.
Applications:
-
Soil mechanics and geotechnical testing
-
Aggregate size classification in concrete & asphalt labs
-
Cement fineness testing
-
Powder material screening
-
Pharmaceutical granule separation
-
Food & beverage industry quality control
Why Choose the AZA LAB ROTAP Sieve Shaker?
-
Proven design based on global testing standards
-
Consistent and repeatable results
-
Durable build for long-term lab use
-
Quiet, efficient operation
-
Expert technical support and warranty service
-
Available in both 20 cm and 30 cm variants
