 Semi‑Automated Twin Distillation Analyzer (AZA 1284)
 Semi‑Automated Twin Distillation Analyzer (AZA 1284)
Back to products
Semi‑Manual Distillation Analyzer(AZA 1286)
Semi‑Manual Distillation Analyzer(AZA 1286)

Semi‑automated atmospheric distillation analyzer(AZA 1285)

Enquiry Now

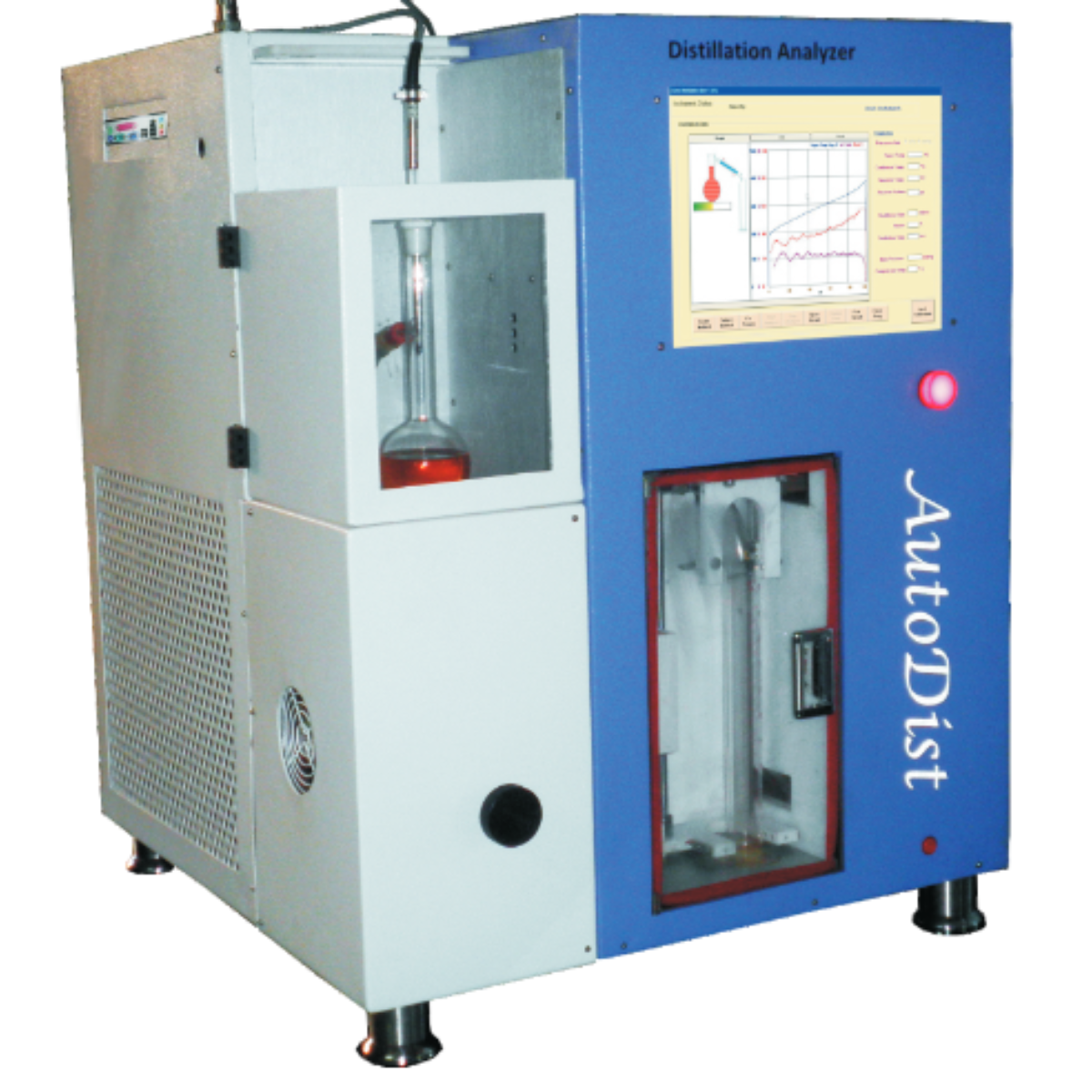

The AutoDist‑86 by Aza Lab is a semi-automated desktop analyzer designed for petroleum-product distillation tests under atmospheric pressure. Compliant with major standards—ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195—it’s capable of accurately distilling hydrocarbon samples ranging from gasoline to diesel and aromatics

Category:
Description

Description

This unit offers precise control with a low-voltage heater, PID-regulated condenser and receiver sections, and a reliable closed-loop CFC-free refrigeration system. It supports manual oversight with potentiometer-controlled heating and includes a safety purge system for inert gas injection

Ideal for quality-control labs, the AutoDist‑86 delivers consistent IBP, FBP, dry point, residue, and loss measurements. It includes standard accessories (125 mL flasks, thermometers, heater plates, etc.) and offers optional upgrades like larger flasks, additional heater plates, a Class A PT100 sensor, and reporting software

Technical Highlights

  • Standards covered: ASTM D86/D850/D1078, ISO3405, IP123, IP195

  • Heater: 24 V coil with ten-turn potentiometer, Ceran support plate and flask lift, cooling fan

  • Cooling & Condenser: Closed-loop, CFC-free system; SS condenser with coolant jacket; PID 0–80 °C

  • Receiver: Closed non-corrosive chamber, PID 10–40 °C

  • Safety: Emergency heater shutdown + N₂/CO₂ purge, manual fire-extinguisher port

  • Accessories (standard): 125 mL flasks ×2/4, thermometers, heater plates, drop plates, swabs

  • Optional: 200 mL flask, PT100 sensor, and reporting suite

  • Size & Power: 480/900 (W) × 590 (D) × 650–690 (H) mm; 80–120 kg; 230 VAC, 50 Hz, 1.4–2.5 kW

Applications & Benefits

  • Accurate boiling-range profiling of fuels and solvents

  • Semi-automated precision with manual flexibility

  • Laboratory-grade temperature and pressure compensation

  • Robust safety features to protect operators and labs

  • Scalable accessory options for tailored testing setups

Reviews

There are no reviews yet.

Be the first to review “Semi‑automated atmospheric distillation analyzer(AZA 1285)”

Your email address will not be published. Required fields are marked *

Related products

 Semi‑Automated Twin Distillation Analyzer (AZA 1284)

Enquiry Now
Designed for atmospheric-pressure distillation of petroleum products, solvents, aromatics, naphtha, kerosene, diesel, gasoline, and related hydrocarbons per standard methods:
  • ASTM D86, D850, D1078, ISO 3405, IP 123, IP 195

    Why Choose Semi‑Automated Twin Distillation Analyzer?

    • Twin simultaneous distillation boosts laboratory throughput
    • Combines semi-automation with manual fine control for flexibility
    • Includes comprehensive safety features and PID-regulated temperature control
    • Modular accessories allow tailored configurations based on lab needs
Add to Enquiry
Quick view
abel closed cup flash point tester, flash point analyzer, closed cup tester, petroleum lab analyzer, precision flash point tester
abel closed cup flash point tester, flash point analyzer, closed cup tester, petroleum lab analyzer, precision flash point tester

ABEL CLOSED CUP FLASH POINT TESTER (AZA 1280)

Enquiry Now
  • Precision closed-cup flash point measurement
  • Automatic ignition, temperature logging, and analysis
  • Complies with ASTM D93 / ISO 2719 standards
  • Safety interlocks and over-temperature protection
  • Easy calibration and data export via USB
  • Ideal for fuel, lubricant, and solvent testing
Add to Enquiry
Quick view

AutoFlash – Automated Abel Flash Point Analyzer( AZA 1277)

Enquiry Now

AZA Lab's AutoFlash-1277 is a fully automated, microcontroller-based Abel Flash Point Analyzer designed to accurately determine the flash points of combustible liquids. Conforming to IP 170, ISO 13736, and IS 1448 (P:20) standards, it ensures precise and safe analysis of samples in the temperature range of -30°C to 70°C, extendable up to 110°C.

Equipped with a built-in PC and touchscreen display, the AutoFlash-170 delivers intuitive operation, automated calibration, advanced ignition options, and rapid heating procedures for high-efficiency testing. Ideal for laboratories, petrochemical industries, and quality control applications, this standalone unit streamlines the testing process with enhanced accuracy, safety interlocks, and programmable procedures.

Add to Enquiry
Quick view

AutoFlash-92 – Automated Cleveland Open Cup Flash Point Analyzer(AZA 1292)

Enquiry Now
The AutoFlash-92 is a programmable, fully automated, microcontroller-based standalone Cleveland Open Cup Flash Point Analyzer. Designed for precision, speed, and safety, it conforms to global standards for petroleum product analysis, particularly for viscous materials with flash points ranging from above 79°C to 400°C, excluding fuel oils.

Standards Compliance

  • ASTM D92

  • ISO 2592

  • IS 1448 (P:69)

  • IP 36

Measurement System:
Parameter Specification
Auto Calibration Before each run, no calibration device needed
Sample Temp. PT100 Class A, SS sheath; 0 to 400°C, resolution 0.1°C
Bath Temp. PT100 Class A, Disk Type; 0 to 500°C
Flash Detection Ionization Ring
Fire Detection Thermal Sensor
Ambient Pressure Built-in sensor; 700–1100 hPa (500–800 mmHg)

Add to Enquiry
Quick view

Aza Lab Dist‑86S (AZA 1288)

Enquiry Now
The Dist‑86S is a compact, semi-automated distillation analyzer engineered for accurate boiling point profiling of petroleum products, solvents, and volatile hydrocarbons under atmospheric pressure. It aligns with key industry standards—ASTM D86, D850, D1078, ISO 3405, IP 123, and IP 195—and enables laboratories to perform reliable automotive fuel and petroleum quality testing with a balance of manual precision and automated safety controls.
Add to Enquiry
Quick view

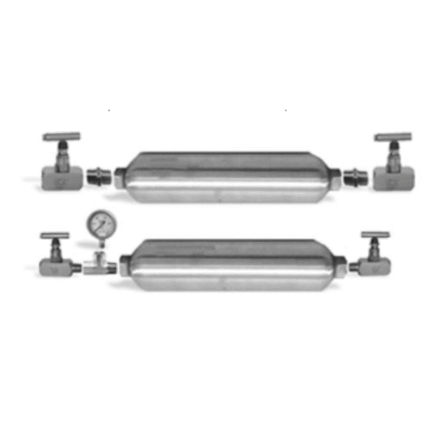

Oil & Gas Sampling Cylinders with Double & Triple Ended (AZA -1274 A)

Enquiry Now
AZA LAB’s Oil & Gas Sampling Cylinders and Gas Sampling Bombs are precision-engineered, high-pressure vessels designed to ensure safe, reliable collection, storage, and transport of liquid and gaseous samples across the oil, gas, and petrochemical sectors. Available in single-, double-, and triple-ended configurations, they are crafted from premium alloys—Stainless Steel 304/316 with dip tube options and corrosion-resistant Monel—providing maximum durability and chemical compatibility . These cylinders undergo rigorous hydrostatic and TPED/DOT testing, carry CE, ISO, and TPED certifications, and feature standard ¼″ or ½″ NPT connections, with customizable sizes from 100 cc to 5000 cc and pressure ratings up to 3000 psi (206 bar) .
Add to Enquiry
Quick view

SEMI AUTOMATED CLEVELAND OPEN CUPFLASH POINT ANALYZER(AZA‑1289)

Enquiry Now
The AutoFlash‑92 is a fully automated, microcontroller-based flash point tester designed for precise determination of flash and fire points in viscous and petroleum-based products. It conforms to ASTM D92, ISO 2592, IP 36, IS 1448 (P:69), and allows testing of materials with flash points between 79 °C and 400 °C, excluding fuel oils. The instrument also captures the fire point—the temperature where sustained combustion occurs—for a minimum of 5 seconds
Add to Enquiry
Quick view

Semi‑Manual Distillation Analyzer(AZA 1286)

Enquiry Now
The Dist‑86m from Aza Lab is a compact, semi-manual atmospheric distillation analyzer designed to perform precise boiling-point profiling of petroleum products, solvents, aromatics, naphtha, kerosene, and related hydrocarbons. Meeting ASTM D86, D850, D1078, ISO 3405, IP 123, and IP 195 standards, it provides reliable qualitative and quantitative distillation data for quality control and lab testing.

Dimensions & Power Requirements

  • Size: 50 × 65 × 65 cm, Weight: 40 kg

  • Electrical: 230 VAC, 50 Hz, 800 W power consumption

Add to Enquiry
Quick view
