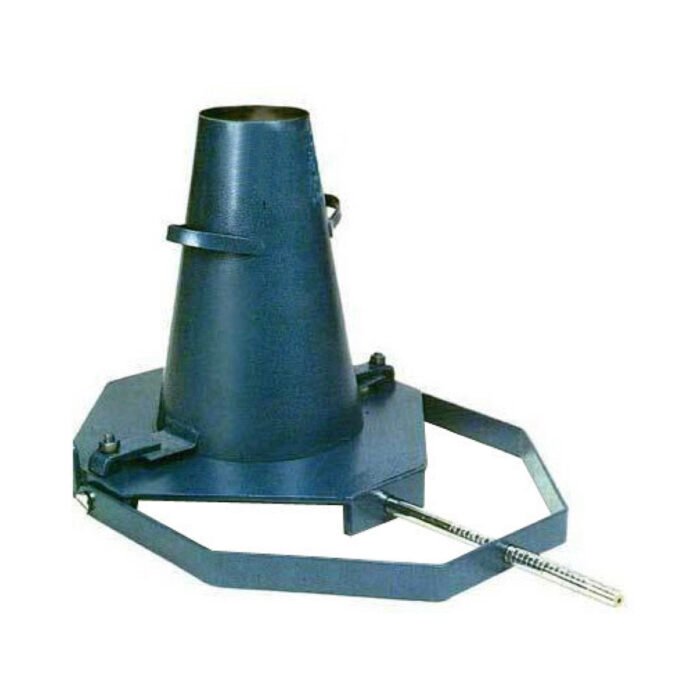

AZA 1102 SLUMP TEST APPARATUS

  • Slump Test Apparatus AZA 1102 for evaluating concrete workability
  • Complies with IS 7320 and BS 1881-102 standards
  • Durable metal slump cone: 200 mm base, 100 mm top, 300 mm height
  • Includes 16 mm diameter tamping rod, 600 mm long, rounded ends
  • Suitable for aggregates up to 38 mm size
  • Ideal for construction sites, labs, and educational use
  • Easy to handle with base plate clamps and lifting handles
Category:
Description

Description

Slump Test Apparatus AZA 1102 is a precision instrument designed to measure the consistency and workability of freshly mixed concrete. This device plays a vital role in quality control on construction sites and in laboratories, ensuring the concrete mix has the desired fluidity for proper placement and compaction.

Constructed with durable metal, the AZA 1102 slump cone features a 200 mm base diameter, 100 mm top diameter, and 300 mm height, adhering strictly to IS 7320 and BS 1881-102 standards. The cone is designed to withstand rough site conditions and repeated use without deformation.

A robust tamping rod with a diameter of 16 mm and length of 600 mm, rounded at both ends, is supplied with the apparatus. The rod is graduated in millimeters, allowing users to apply consistent compaction strokes during testing.

The apparatus also includes a sturdy base plate equipped with clamps and lifting handles to facilitate easy transportation and stable positioning during tests. The design accommodates concrete mixes with aggregate sizes up to 38 mm, making it suitable for a wide range of construction materials.

Using the AZA 1102, engineers and technicians can quickly perform slump tests that provide immediate feedback on concrete workability, helping to adjust mix proportions or water content as necessary to meet project specifications.

IS 7320 & BS 1881-102
It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38 mm.
Specification:

The apparatus consists of one slump cone with handles and foot pieces. The slump cone has internal dimension 200 mm dia at base 100 mm top dia and 300 mm height foot pieces can be fixed to the clamps on the base plate. The base plate has lifting handle for easy transportation. One graduated steel rod 16 mm dia x 600 mm long rounded at both ends and graduated in mm is also supplied

  • Slump Test Apparatus AZA 1102 for evaluating concrete workability

  • Complies with IS 7320 and BS 1881-102 standards

  • Durable metal slump cone: 200 mm base, 100 mm top, 300 mm height

  • Includes 16 mm diameter tamping rod, 600 mm long, rounded ends

  • Suitable for aggregates up to 38 mm size

  • Ideal for construction sites, labs, and educational use

  • Easy to handle with base plate clamps and lifting handles


Specifications

Feature Specification
Model AZA 1102
Standard Compliance IS 7320, BS 1881-102
Slump Cone Dimensions Base diameter: 200 mm
Top diameter: 100 mm
Height: 300 mm
Tamping Rod Diameter: 16 mm
Length: 600 mm
Ends: Rounded
Base Plate Equipped with clamps and handles
Aggregate Size Up to 38 mm
Material Durable metal
Application Concrete workability testing

FAQs

Q1: What is the purpose of the AZA 1102 Slump Test Apparatus?
A1: It measures the workability and consistency of freshly mixed concrete to ensure proper mix quality and ease of placement.

Q2: Which standards does the AZA 1102 comply with?
A2: It complies with IS 7320 and BS 1881-102 standards for slump testing.

Q3: What are the dimensions of the slump cone?
A3: The slump cone has a 200 mm base diameter, 100 mm top diameter, and 300 mm height.

Q4: Is the apparatus suitable for large aggregates?
A4: Yes, it supports concrete with aggregate sizes up to 38 mm.

Q5: What materials are used for the apparatus construction?
A5: The slump cone and tamping rod are made of durable metal to withstand site conditions.
