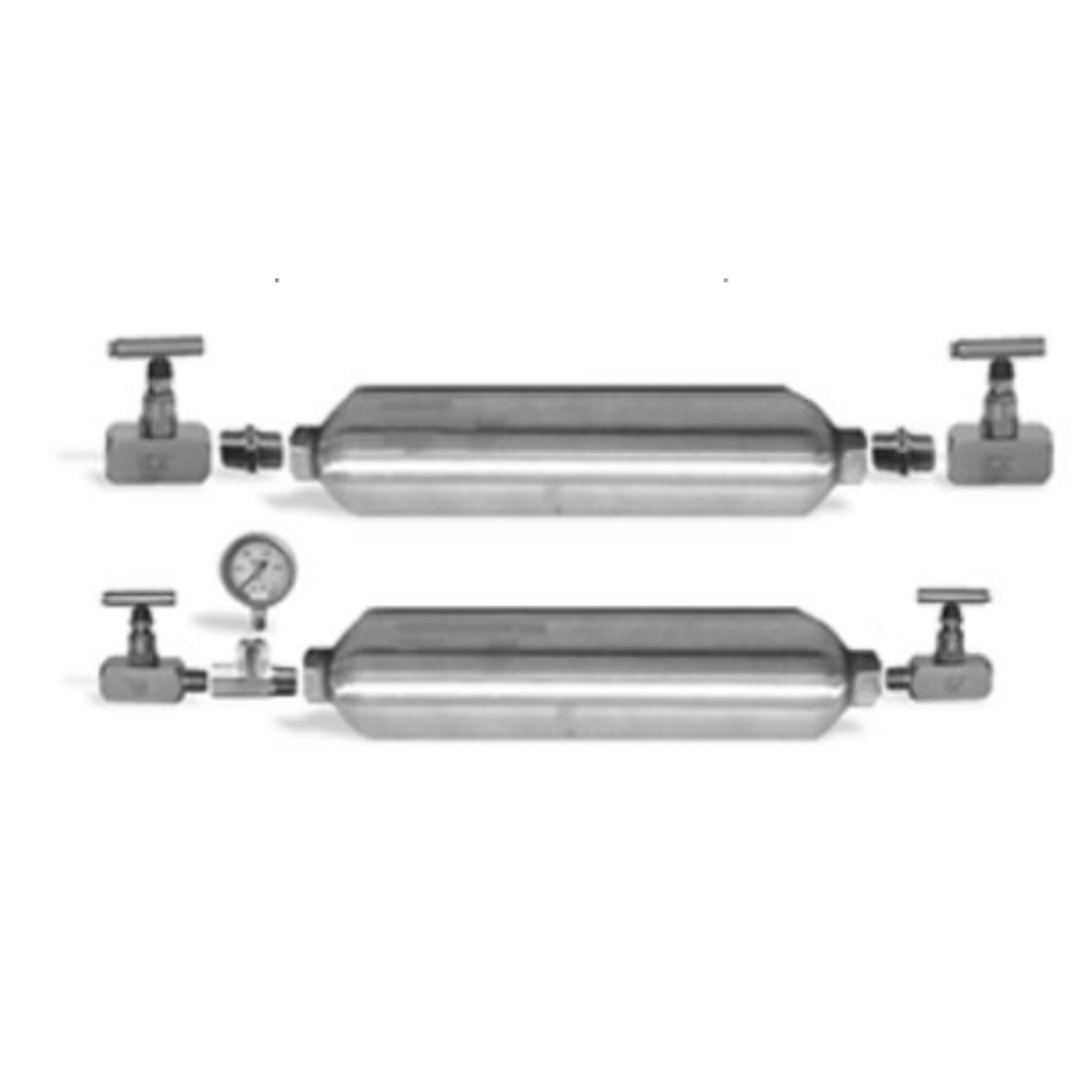

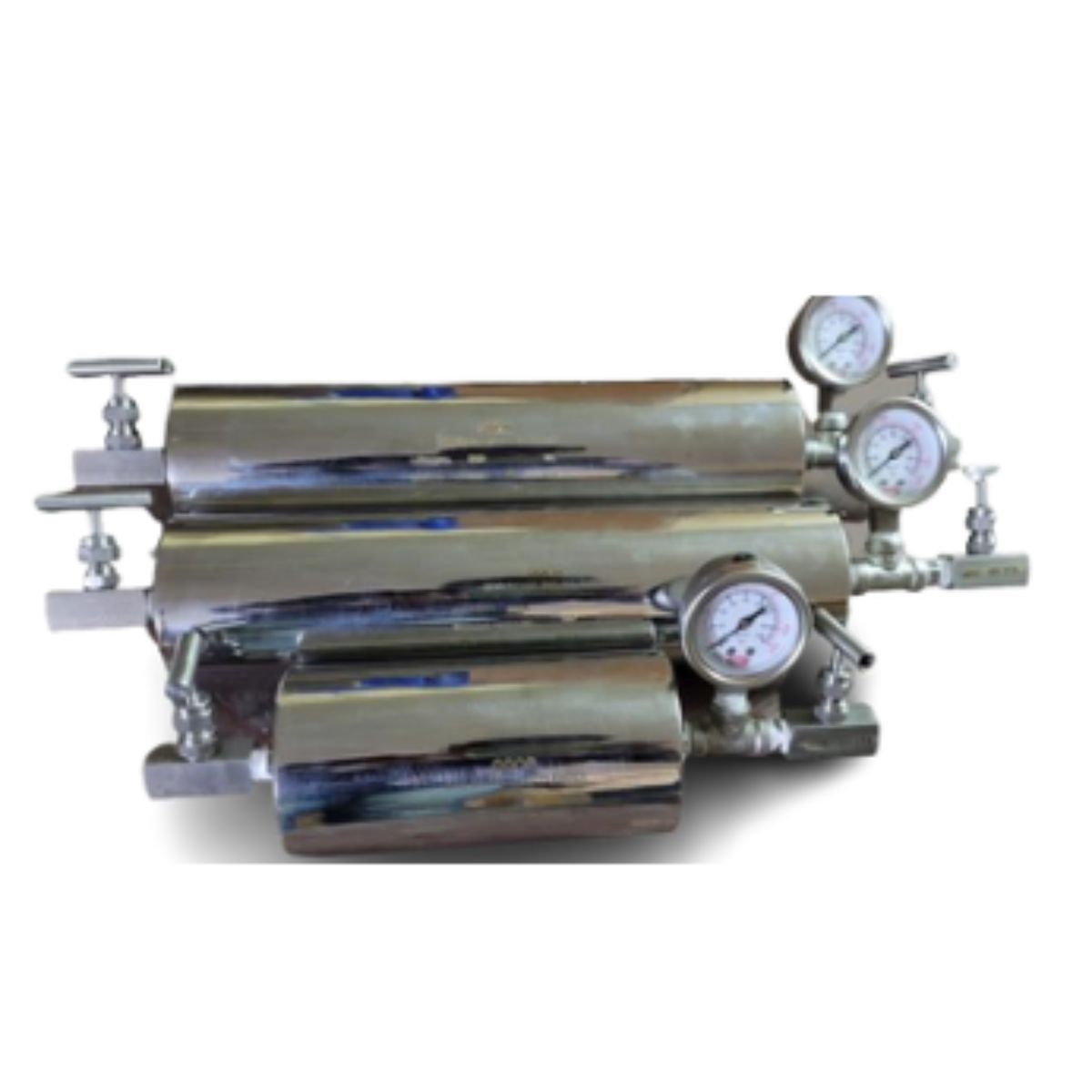

Oil & Gas Sampling Cylinders with Double & Triple Ended (AZA -1274 A)
AZA LAB’s Oil & Gas Sampling Cylinders and Gas Sampling Bombs are precision-engineered, high-pressure vessels designed to ensure safe, reliable collection, storage, and transport of liquid and gaseous samples across the oil, gas, and petrochemical sectors. Available in single-, double-, and triple-ended configurations, they are crafted from premium alloys—Stainless Steel 304/316 with dip tube options and corrosion-resistant Monel—providing maximum durability and chemical compatibility . These cylinders undergo rigorous hydrostatic and TPED/DOT testing, carry CE, ISO, and TPED certifications, and feature standard ¼″ or ½″ NPT connections, with customizable sizes from 100 cc to 5000 cc and pressure ratings up to 3000 psi (206 bar) .
Description
| Product Code | Capacity (ml) | Connection | Size (Ø × L mm) |
| AZA- 115 | 100 | ¼″ NPT | Ø 60 × 120 |
| AZA- 116 | 250 | ¼″ NPT | Ø 60 × 230 |
| AZA- 117 | 500 | ¼″ NPT | Ø 60 × 320 |
| AZA- 118 | 1000 | ¼″ NPT | Ø 88.9 × 300 |
| AZA- 119 | 2000 | ½″ NPT | Ø 102 × 350 |
| AZA- 120 | 5000 | ½″ NPT | Ø 150 × 350 |
| AZA- 121 | 10000 | ½″ NPT | Ø 230 × 350 |
Key Applications
-
Hydrocarbon and gas sampling in refineries, petrochemical plants, and well sites
-
Laboratory grab sampling, including chromatographic analysis
-
Use as snubbers, surge accumulators, and within high-vacuum or pressure systems
-
Serving as reaction vessels, transformer oil containers, molecular sieve chambers, and calibration setups
- Certified to CE, ISO 9001, TPED, and DOT standards
- All models are hydrostatically proof-tested to 1.5–2× their rated pressure, ensuring integrity under extreme conditions
- Internally sandblasted, optionally FEP/PTFE-coated, and fitted with precision-threaded heavy-wall connections for leak-free operation
- Materials: SS 304 / SS 316 / Monel (for aggressive media compatibility)
- End-types: Single-, double-, triple-ended, or flat-ended cylinders
- Versatile customization: valve fittings, dip tubes, quick-connects, PTFE/FEP linings, carrying handles, and custom markings
- Available in standard ¼″ & ½″ NPT, with BSP and larger connections upon request
