AZA 1164 CAPPING SET (VERTICAL)
IS:516 1959, BS1881-120
For capping compression cylinder specimens. This apparatus can be used
both in the laboratory and in the field. The specimens capped in this
apparatus have plane parallel faces.
Specification:
Mould for cylinders 150 mm dia. x 300 mm long, 100 mm x 200 mm
Consists of a base with an upright. The upright serves as a guide for
positioning the capping plate and cylinder. The 19mm thick capping plate is machined accurately. There is a recess in the plate for keeping the molten capping compound and to position cylinder. Complete with cylinder carrier and ladle
AZA 1165 MELTING POT
AZA 1166 CURING TANK
- AZA 1166: Precision concrete curing tank for lab use
- Temperature Controlled: Thermostat for consistent water temp
- Large Capacity: Holds multiple 150mm concrete cube specimens
- Ideal for Labs: Conforms to IS, ASTM, and BS testing standards
- Durable Build: Insulated tank with corrosion-resistant interior
AZA 1167 POKER VIBRATOR (WITH VIBRATING TABLE)
EN 12390–2; ASTM C31, C192; AASHTO T23, T126
Ø 22 mm hand-held, 220-240 V 50-60 hz
The poker vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products
AZA 1168 VIBRATING TABLE
AZA 1169 DLC VIBRATING HAMMER FOR CONCRETE MOULDS
ASTM C 232; EN 480-4
Used for the compaction of concrete samples in a mould. Generally the
vibratory hammer is found to be a much faster & quicker method as compared to impact hammering. The vibratory hammers are supplied
with 1 tamping feet & 1 shank.
Used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete.
Dimensions : 290x255x350mm
Weight (approx.) : 6 kg

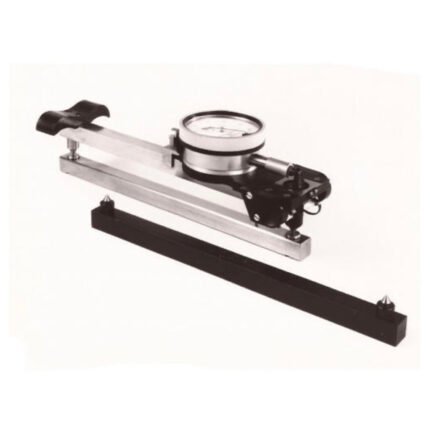

AZA 1170 DE-MOUNTABLE MECHANICAL STRAIN GAUGE
BS 1881-206.
It is used for finding out the linear deformation caused on two reference points fixed on a loading member.
Specification:
This portable gauge is designed for a gauge length of 200 mm. of the reference pins. The deformation is indicated by a 0.002 x 5mm dial gauge attached to the instrument. Complete with two standard bars for 200 mm gauge length supplied in a wooden case.
Accessories:
Reference pins in packet of 100 nos. at an extra cost.

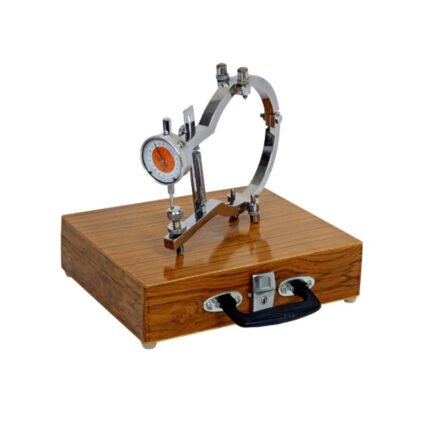

AZA 1171 LATERAL EXTENSOMETER

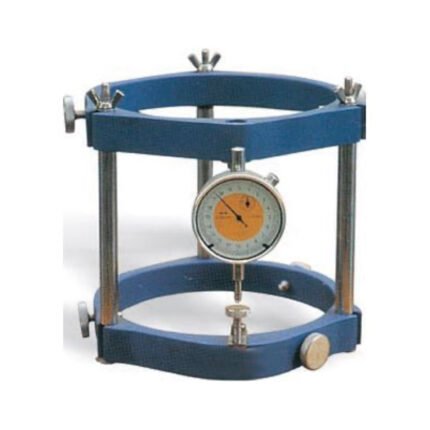

AZA 1172 LONGITUDINAL COMPRESSOMETER
ASTM C 469
It is designed for finding out the deformation and strains on 150 mm. Diameter and 300 mm high cement and concrete cylinders when subjected to compressive loads.
Specification:
Consists of a frame with a bottom ring and a top ring with tightening screws to firmly clamp the compress meter over the cylinder. A dial gauge .002 mm x 5 mm is mounted on the upper ring and the tie of the dial gauge rests on an anvil. The zero on the dial gauge can be set by adjusting the anvil screw. Supplied in a wooden carrying case

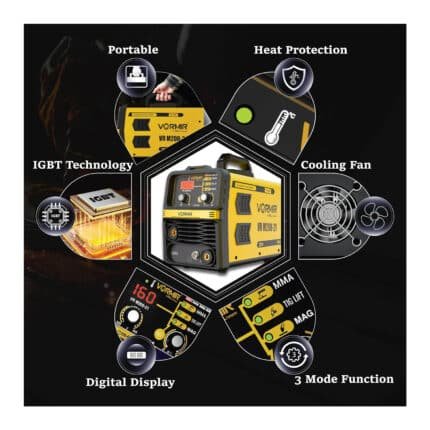

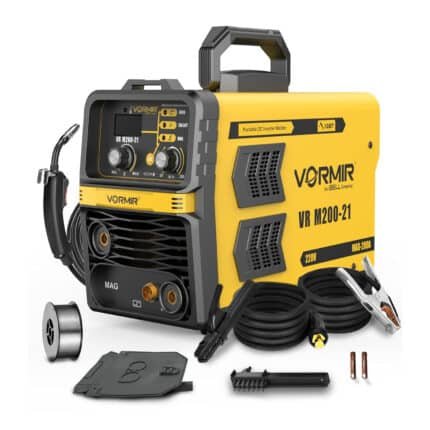

TIG Welding Machine AZA 1235
- TIG welding machine for precise, clean welds
- Dual voltage input (110V/220V) for flexibility
- Advanced IGBT inverter technology
- Digital LCD display for accurate settings
- Ideal for steel, stainless steel, and aluminum
- Overheat and overload protection
- Lightweight and portable for field use
- Model: AZA 1235 – designed for professional use
