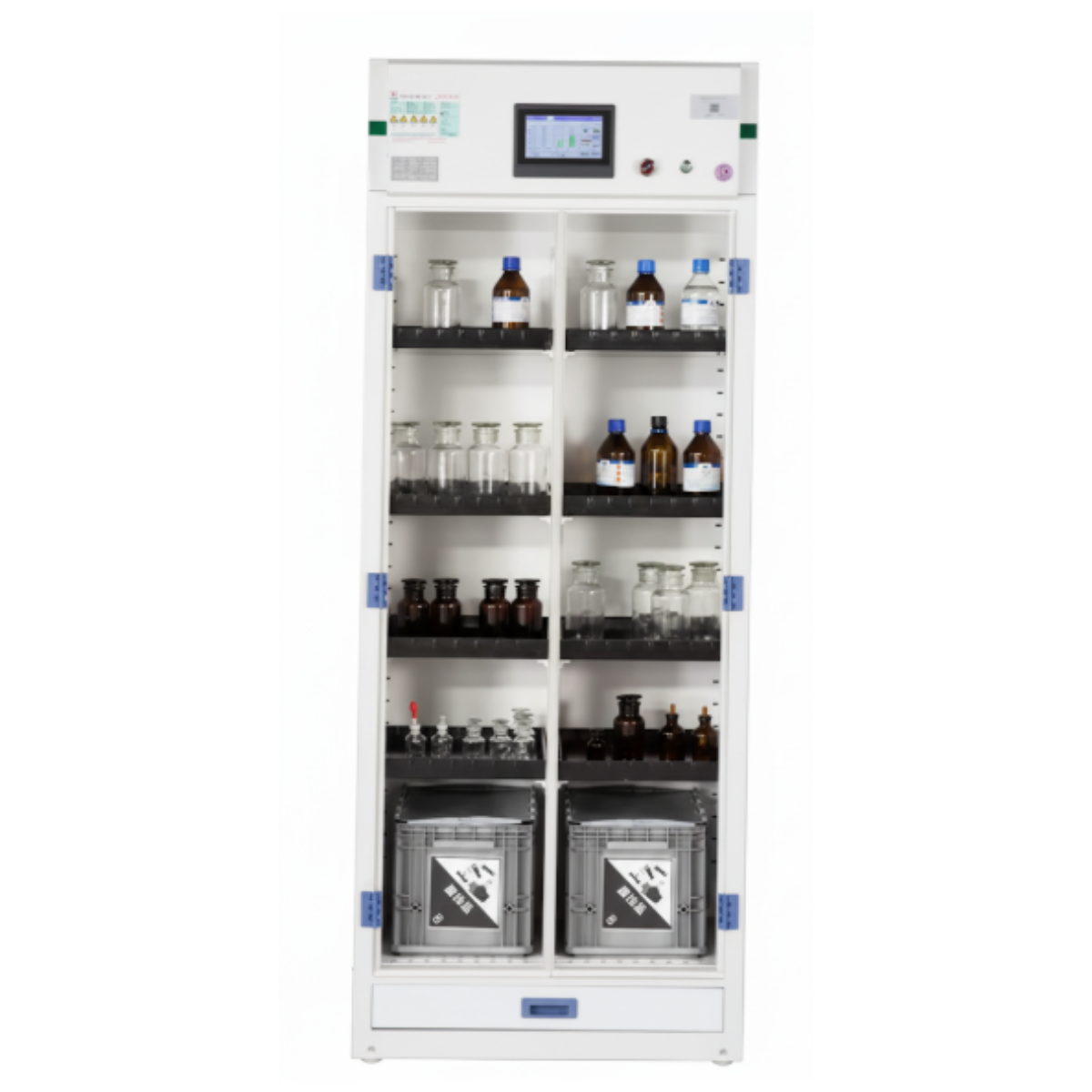

Chemical Air-Purifying Safety Cabinet AZA-1304
Pipeline-Free, Smart, and Safe Chemical Storage
The AZA Model 1304 Gas-Purifying Chemical Safety Cabinet is designed for safe storage of toxic and hazardous chemicals while continuously purifying laboratory air. With its ductless, pipeline-free design, advanced multi-stage filtration system, and intelligent monitoring technology, it ensures both safety and energy efficiency, making it ideal for R&D labs, QC labs, pharma facilities, and educational institutions.
Working Principle
-
Top-Mounted Fan: Extracts air from the laboratory into the cabinet, generating negative pressure to prevent chemical vapors from escaping.
-
Gas Filtration: Harmful gases pass through a multi-layer molecular filtration system that traps toxic molecules and particulates. Clean air is then released back into the lab.
-
Continuous Air Purification: Purifies laboratory air 24/7 to maintain a safe, clean working environment (recommended to keep the cabinet running at all times).
Description
Key Features & Benefits
-
Pipeline-Free Installation: No external ducting or exhaust system needed — reduces installation cost and eliminates waste gas discharge.
-
Customizable Filtration: Modular top-mounted filter system can be configured for organic, inorganic, ammonia, formaldehyde, and acid-base chemicals.
-
Smart Safety Monitoring: Integrated VOC probes, filter saturation alarms, and real-time temperature/humidity monitoring ensure full compliance and timely maintenance.
-
Energy Efficient: No impact on air-conditioning load; low power consumption (42W).
- Mobility & Accessibility: Easy to move and place near workstations for efficient chemical access and improved workflow.
| Parameter | Specification |
|---|---|
| External Size (WxDxH) | 800 × 510 × 2070 mm |
| Internal Size (WxDxH) | 797 × 475 × 1604 mm |
| Molecular Filter Size | 370 × 395 × 50 mm |
| Primary Filter Size | 370 × 396 × 21 mm |
| Display | 7-inch IoT LCD Touch Screen |
| Layer Boards | 8 (adjustable) |
| Load Bearing Capacity | > 70 kg/㎡ |
| Air Handling Capacity | 220 m³/h |
| Cabinet Volume | 0.55 m³ |
| Storage Capacity | 160 bottles (500 ml each) |
| Noise Level | 40 dBA |
| Power Supply | 220V / 50Hz |
| Energy Consumption | 42 W |
| Gross Weight | 208 kg |
-
Body Material: ≥ 1.2 mm galvanized steel, epoxy resin electrostatic coating, chemical-resistant and moisture-proof finish.
-
Door Panels: ≥ 6 mm acrylic, transparent, anti-aging, visually clear and durable.
-
Shelving: PP integrated acid/alkali-resistant trays with 4.5L leak containment; optional perforated galvanized shelves.
-
Leakage Drawer: PP inner liner to capture accidental spills from broken containers.
-
Rounded Corners: 60° R-angle integrated design for improved safety and aesthetic appeal.
-
Dual VOC Monitoring: Two VOC probes — one for indoor air quality, one for filter saturation — with alarm system when limits are exceeded.
-
Fan Monitoring: Online adjustable fan speed and failure alarm notification.
-
Temperature & Humidity Alarms: Real-time monitoring with configurable thresholds.
-
Filtration System: High-efficiency molecular filter + HEPA H14 (optional), 99.995% efficiency for particles ≥ 0.3 µm (ASTM standard).
-
Ultra-Quiet PSC Fan: 24V imported fan, spark-free and anti-static for maximum safety.
-
7-inch HMI Touchscreen: Intuitive, high-resolution (1024×600) display for easy control.
-
Remote Control: Adjust fan speed and alarm settings remotely.
-
Certified Software: Approved by China Software Evaluation Center for reliability and data security.
